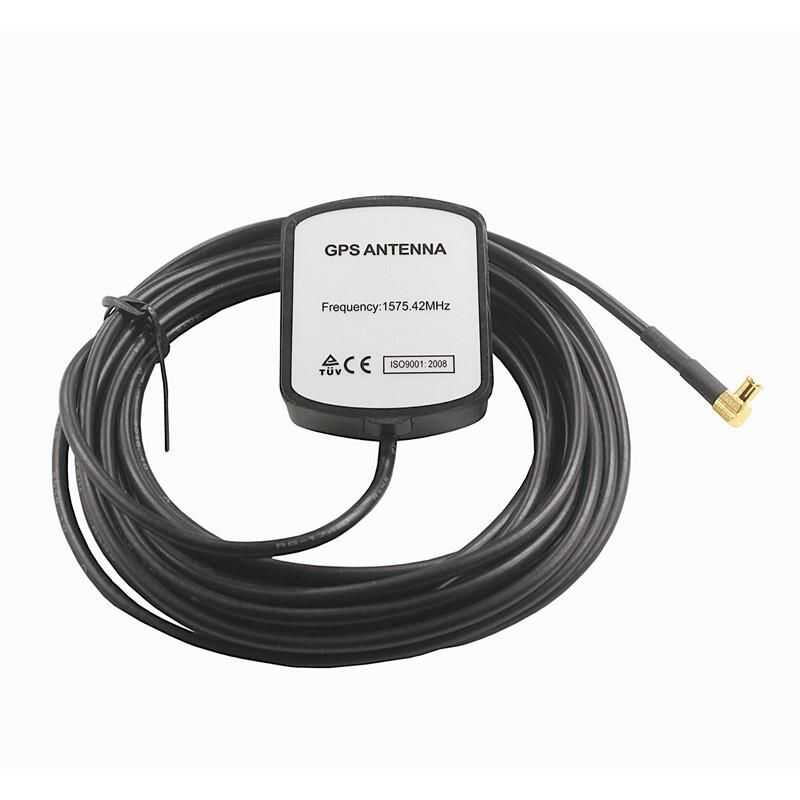

External GPS/BD Antenna 1575.42 MHz with IPEX MHF3 Connector
GPS Antenna is designed for applications requiring high positioning accuracy by combining signals from GPS systems. The small size of this antenna allows it to be used in environments with very space constraints. With 2 meter cable, you can use this antenna to enhance GPS Signals in an indoor project with Raspberry Pi HAT or Arduino Shield. The antenna has a flat magnetic surface to keep it fixed in place temporarily or can be permanently adhered to any surface with the help of Double Sided Tape
Power supply to the antenna preamplifier is controlled by the application The GNS must be provided on the same RF signal trace as the RF signal is carried to the application. It is easy to use. No RF or antenna knowledge required
Features:
Characteristic:
- Dieletric Antenna
- Center Frequency 1575.42MHz ± 1 MHz
- V.S.W.R <1.5
- Bandwidth CF ± 5 MHz
- Impendence 50 ohm
- Gain ( Zenith) 2dB
- Scope Gain> -90° <0 <+-4dBic at 90° (over 75% Volume)
- Polarization RHCP
LNA / Filter
- LNA Gain (Wireless) 48 ± 2dB
- Noise Figure <1.0dB Typ.
- Filtering Band Attenuation (f ° = 1575.42MHz)
- 12dB Min f0+50MHZ;
- 16dB Min f0-50MHZ;
- V.S.W.R <2.0
- DC Voltage 2.2 ~ 5.0V
- DC Current 20 ~ 40mA
Mechanical
- Weight: 0.122kg
- Dimension 25*25*4mm
- Connector: IPEX MHF3 With Connector
