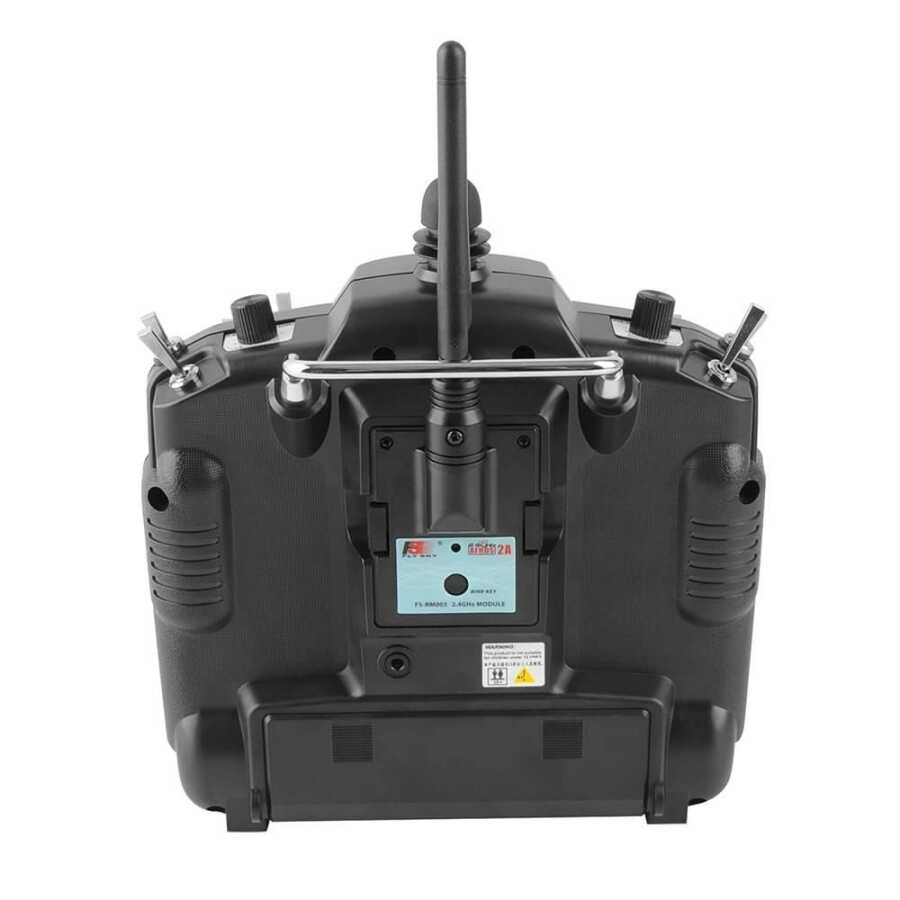

Flysky FS-TH9X 2.4GHz 9-Ch Transmitter with FS-IA10B Receiver
The Flysky FS-TH9X 2.4GHz 9-Ch Transmitter with FS-IA10B Receiver has revolutionized the way people experience RC, and now it's radio transmitter and Receiver can be used in all projects.
This Upgraded 9 channel TRANSMITTER AFHDS (automatic frequency hopping digital system) is developed by FLYSKY for all Radio Control model lovers and FLYSKY at home It is patented by. The system has been developed specifically for all Radio control models, offering super active and passive anti-jamming capabilities, very low power consumption and high receiver sensitivity. With extremely rigorous testing by engineers and years of studying the markets, FLYSKY AFHDS is now considered one of the best systems available on the market.
2.4GHz as it has many advantages It is the standard of the new generation radio system. Operating at 2.4 GHz puts the radio control out of frequency range of any 'noise' generated by other electronic components in your helicopters such as the brushless motor, Electronic speed controller, Servos and any metal to metal noise, eliminating interference and malfunction. may affect the conventional frequency system.
Specifications:

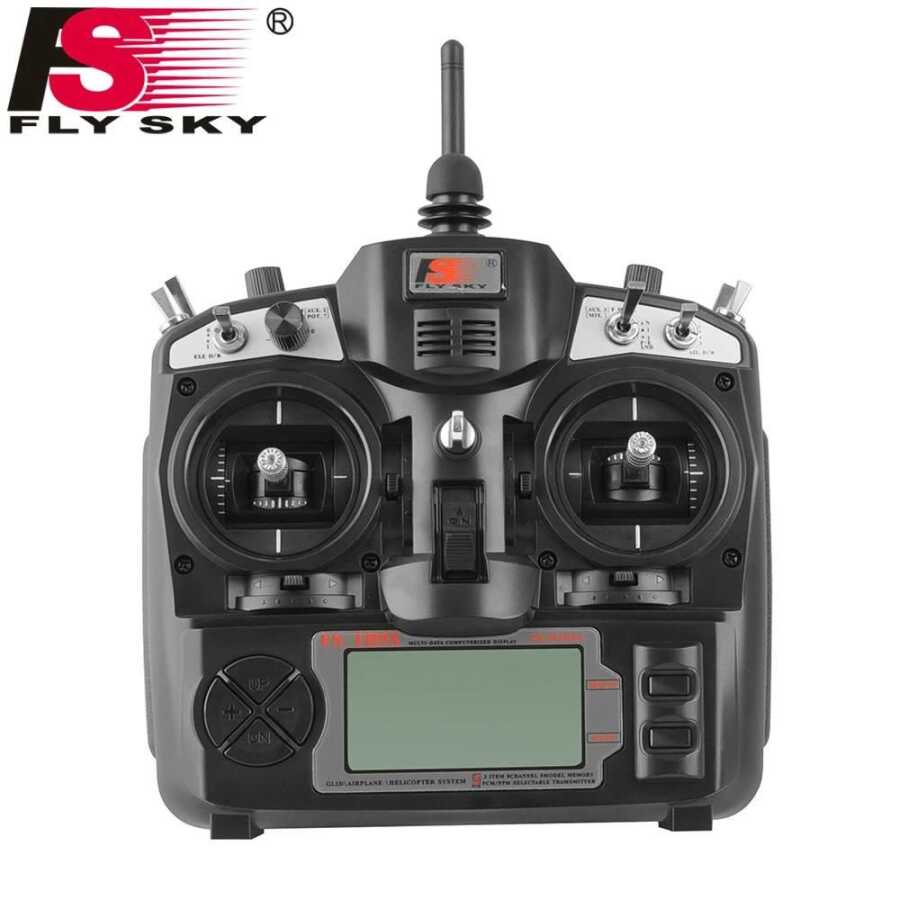

- Transmitter: FS-TH9X

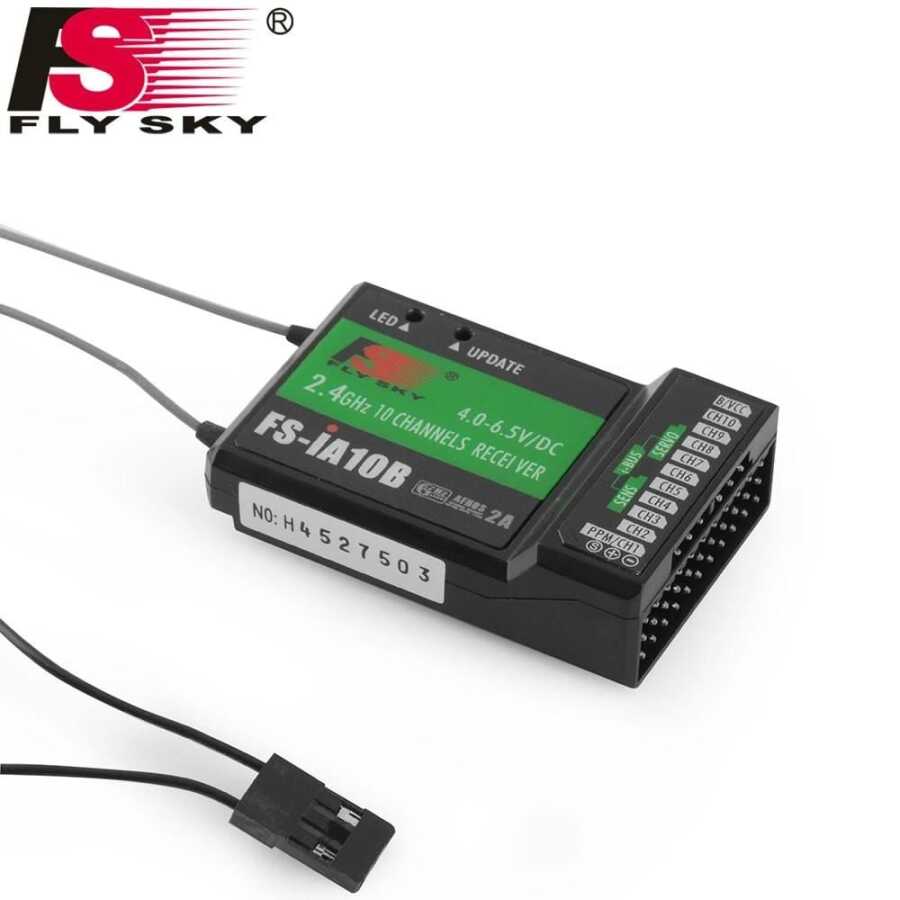

- Receiver: FS-IA10B
- Default Mode: Mode-2
- Input Power: 12V DC (1.5V x 8 AAA Batteries)
- Bidirectional System
- Frequencies-Hopping
- Omnidirectional High Gain Antenna
- Low power consumption
- Open source firmware support
- Can support up to 14 channels (external with RF module)
- RF module can be easily removed
- Supports AFHDS / AFHDS 2A RF modules
- Brand Name: FlySky
- Channels: 9 Channel
- Compatible with: quadcopter, glider, helicopter, airplane, as well as car or boat
- RF Range: 2.40-2.48GHz
- Bandwidth: 500Hz
- Band: 160
- RF Power: Less than 20DB
- 2.4G System: AFHDS
- Modulation: GFSK
- Code Type: PPM/PCM
- Sensitivity: 1024
- LCD Type: 128 x 64
- Low Voltage Warning: yes (less than 9V)
- DSC Port: yes (3.5 mm: output: PPM)
- Charging Port: yes
- Size: 180 x 220 x 70 mm
