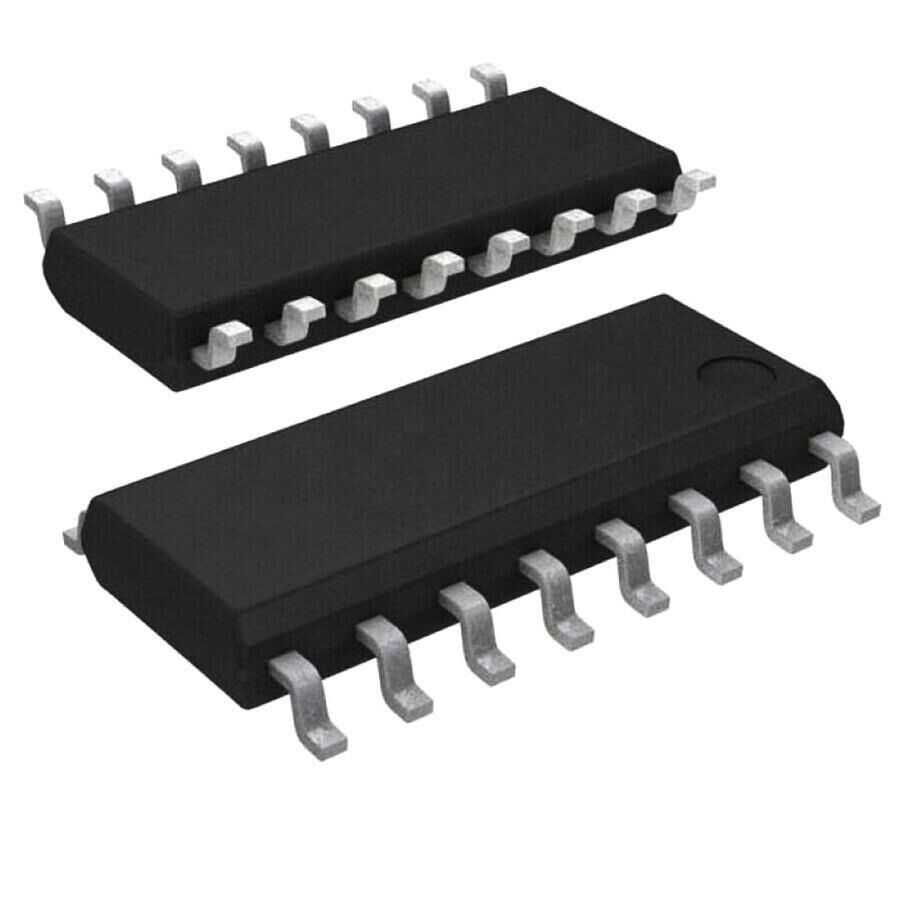

HIP4082 SOIC-16 Smd Mosfet Driver IC
HIP4082 is a mid-frequency, medium-voltage HCP available in 16-lead plastic SOIC (N) and DIP packages. -Bridge is an N Channel MOSFET driver IC.
Bridge-based designs specifically targeted for PWM motor control and UPS applications become simple and flexible with the HIP4082 H-bridge driver has been brought. With operation up to 80V, the device is best suited for applications at medium power levels.
Uses
• UPS Systems
• DC Motor Controls
• Full Bridge Power Supplies
• Replacing Power Amplifiers
• Noise Cancellation Systems
• Battery Powered Vehicles
• Peripherals
• Medium/Large Voice Coil Motors
• Related Literature
- TB363, Transport and Processing Guidelines
Moisture Sensitive Surface Mount Devices (SMDs)
| Series |
HIP4082IP |
| Supply Voltage |
5-15V
|
|
Number of Outputs
|
4
|
|
Operating Temperature
|
-55 - +125 |
| Output Current |
1.25A |

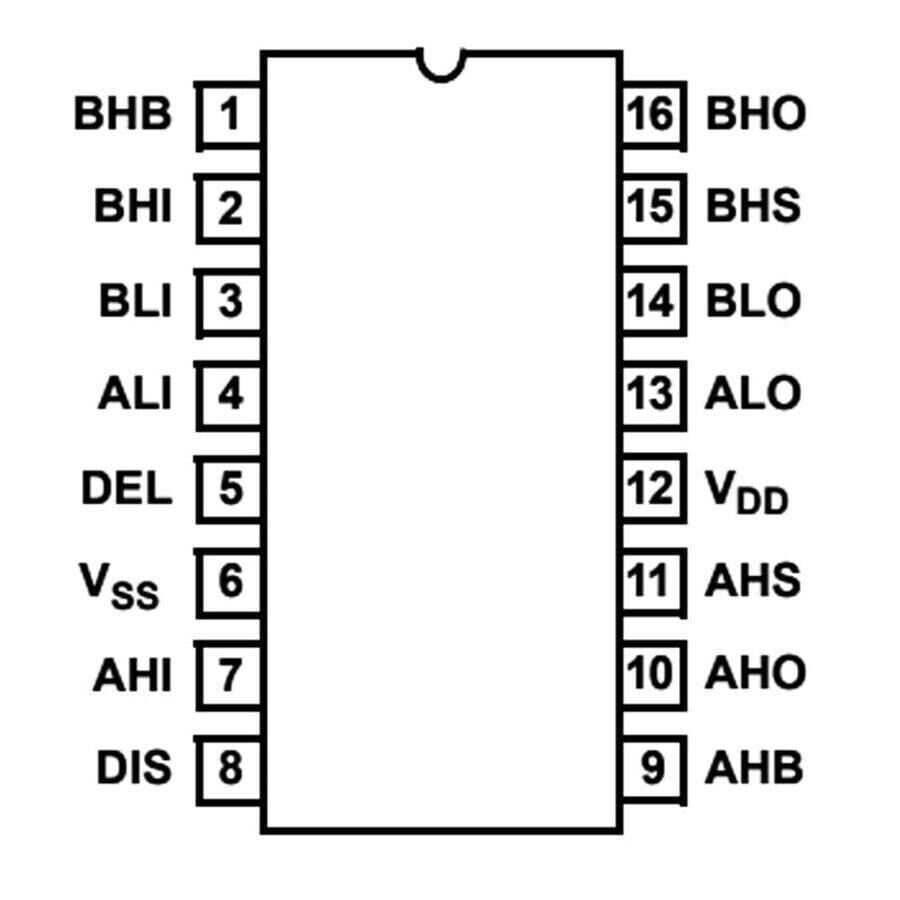

| Number of Pins |
16 Pin |
| Package Type |
SOIC-16 |
