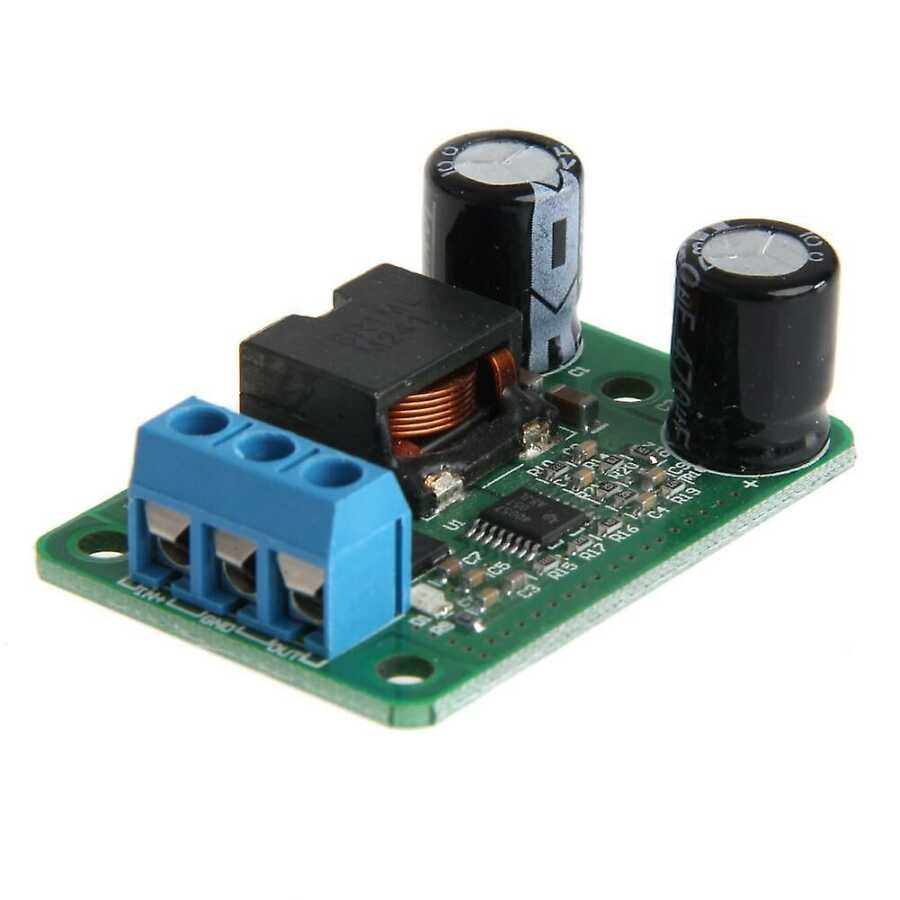

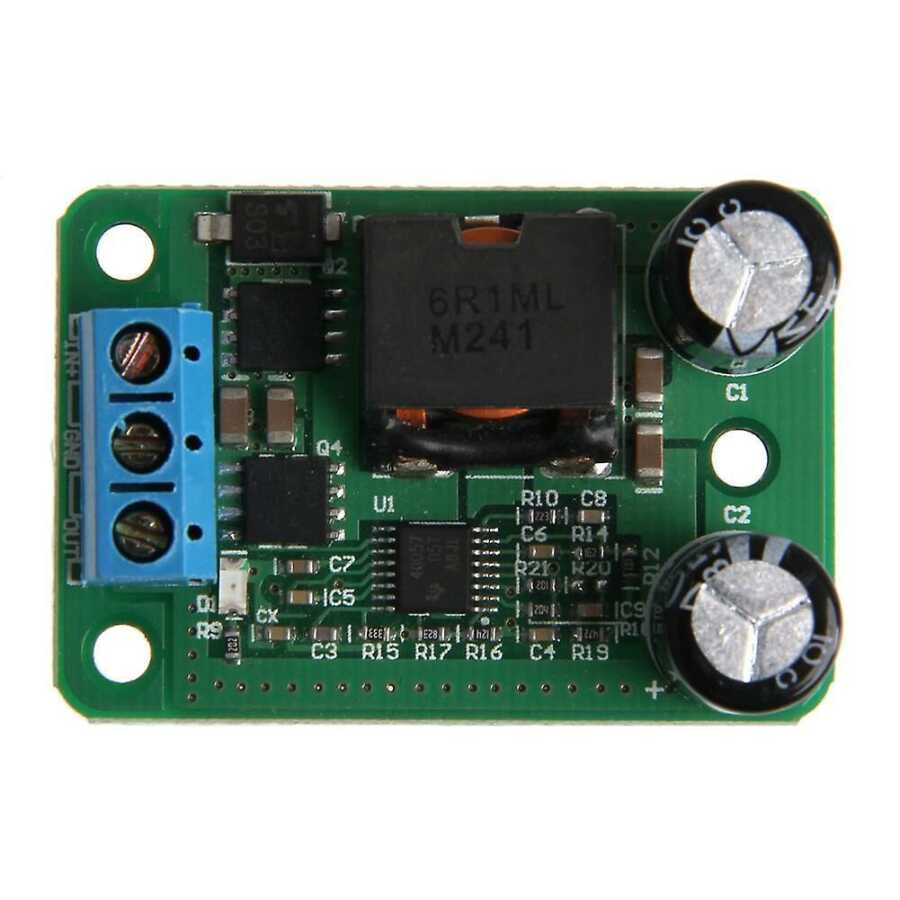

HW468 5V 5A Voltage Step Down Regulator Board
HW468 is a voltage step down board that gives 5V fixed output. It is suitable for use in places where constant 5V is required. It has a supply voltage between 9-35V.

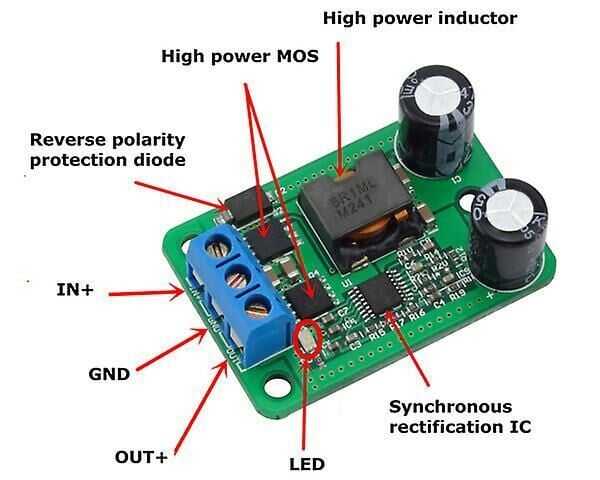

There are 3 terminals on the product. One of them is the Input, the other is the Output, and the middle one is the common minus terminal.
Features:
- Input Voltage: 9-35V
- Output Voltage: 5V
- Output Current: 5A
- Operating Temperature: -40°C+85°C
- Output Power Max.: 25W

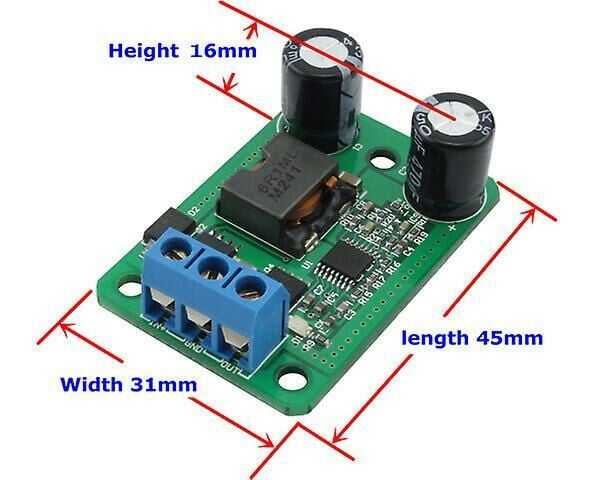

- Dimensions: 45 x 31 x 16mm
