Induction Heating Circuit ZVS 12-48V 50A 2500W

Ratings & Reviews (0)
Comment
Brand: Motorobit
Product Code: ELK.IND.01.000007
Stokta son 4 ürün
3,168.00 TL + VAT
VAT Included: 3,801.60 TL

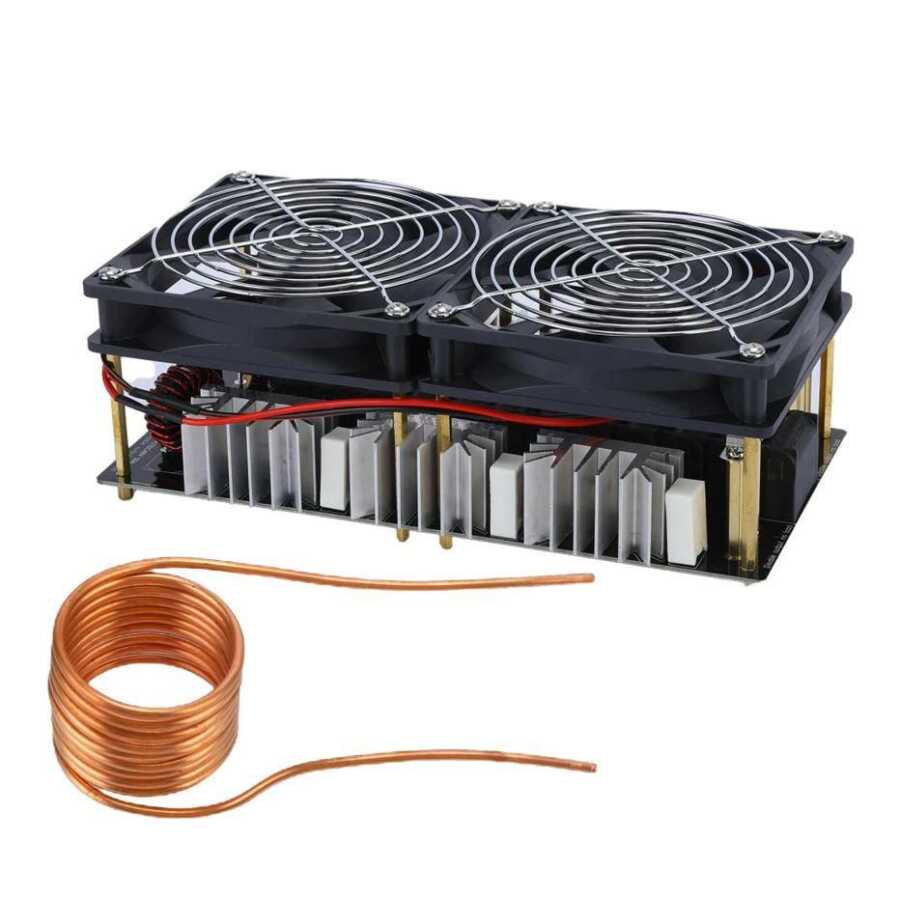

Induction Heating Circuit ZVS 12-48V 50A 2500W



It is an induction heating circuit with a maximum power of 2500w that you can use between 12-48V. It is an easy-to-use electronic card for quickly heating your small metal parts. The higher the voltage, the higher the heating process.

This product gives high voltage output from its output terminals. Please use carefully. It is unsafe to use by those who do not have basic electronic knowledge.

The propellers on the product are operated by external energy. If you want the fans to work, they will need to be removed from the sockets and supplied with 12-24V energy externally.



Technical Specifications:

  • Input voltage: DC 12V ~ 48V (36V and above are recommended)
  • Maximum power: 2500W
  • When used in heating, the power should be large enough!
  • 36V power supply, current more than 70A should be
  • 24V power supply, current should be more than 105A
  • 12V power supply, current should be more than 210A
  • Product Size: 240 x 120 x 80mm
Weight(Kg)
2
