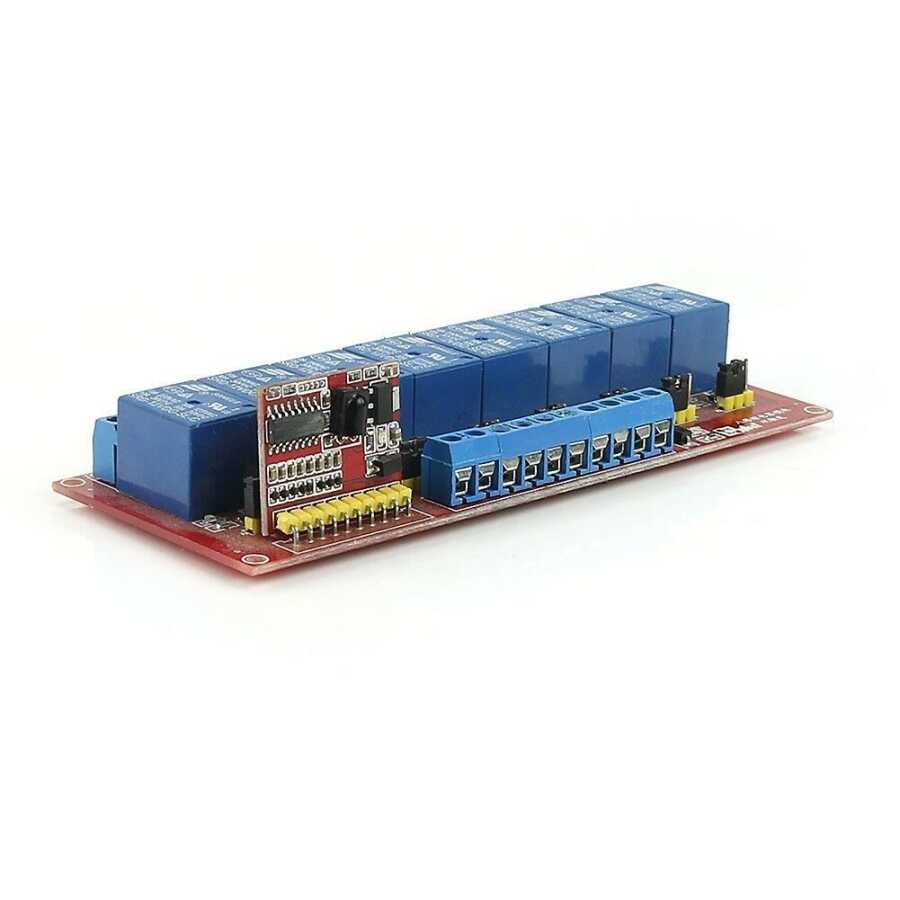

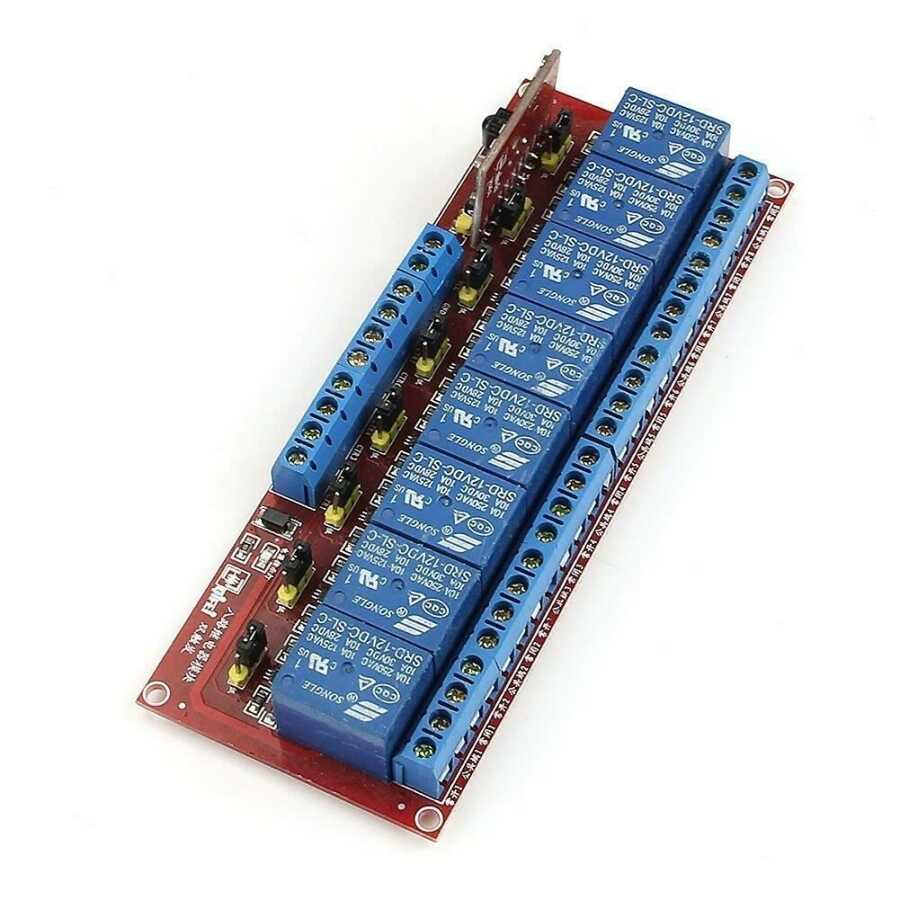

IR Controlled Relay Card 12V 8 Channel
It is a 12V 8 channel relay card that you can control with a remote control.
8-channel 12V relay module is level triggered and suitable for IO port output.
Suitable for Arduino, AVR, PIC, ARM, PLC, etc. It can be directly controlled by a wide range of microcontrollers, such as.
Relay coil with absorber diode protection.
Active-low signal input, VCC, GND power supply input terminal.

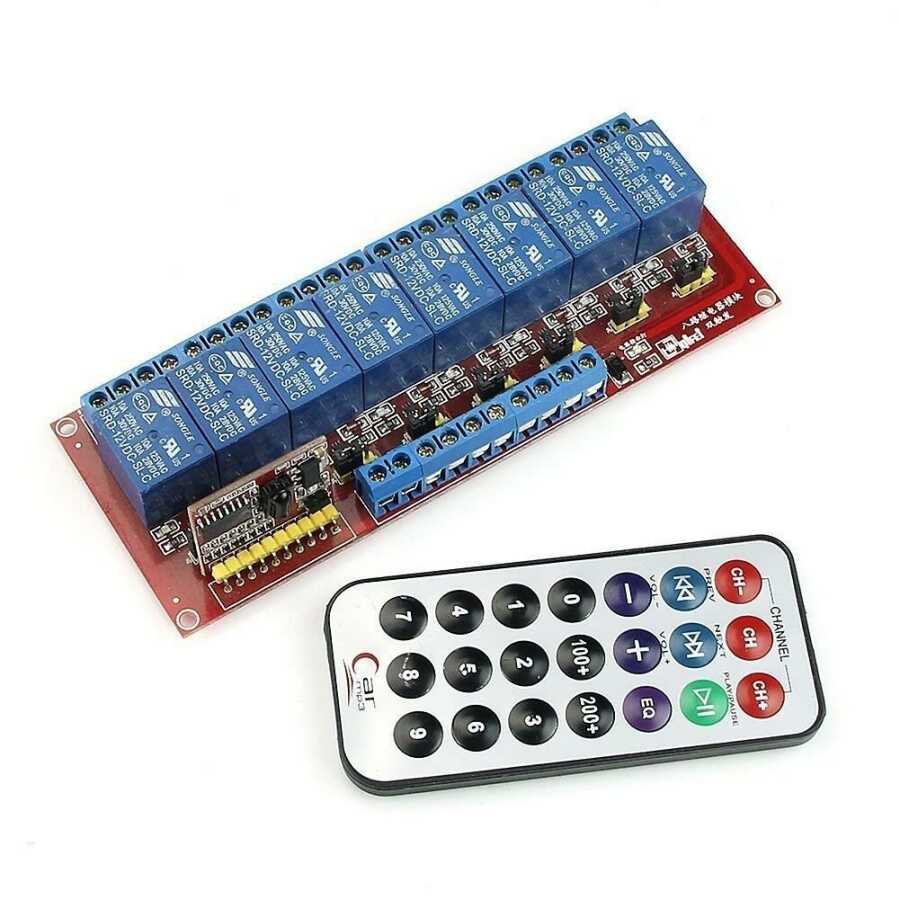

Remote Control Usage:
Only numeric keys work (1- 8)
When you press the button of the relay sequence you want to operate, the relay operates. When you press again, they stop.
After pressing the 0 button, they all start working.
After pressing the 9 button, they all stop.
Technical Specifications:
Operating voltage: 12V
Control distance: 8m
Relay Board Size: 13.50 x 5.00 x 2.10cm
Remote Control Size: 8.50 x 4.00 x 0.60cm
Package content:
1 x 12 Channel 5V Relay Module
1 x Remote Control
