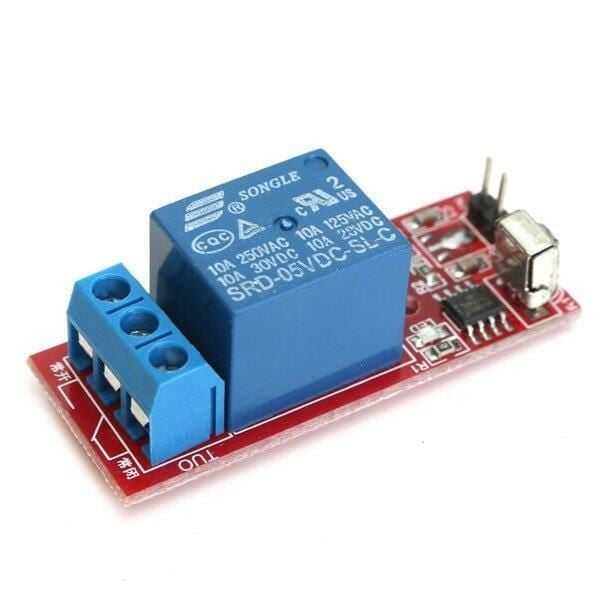

IR Controlled Relay Card 5V 1 Channel
It is a 5V single channel relay card that you can control with your remote control. It has On/Off mode.
1 channel 5V relay module is level triggered and suitable for IO port output.
Arduino, AVR, PIC, ARM, PLC, etc. It can be directly controlled by a wide range of microcontrollers, such as.
Relay coil with absorber diode protection.
Active-low signal input, VCC, GND power supply input terminal.
Technical Specifications:
Operating voltage: 5V
Control distance: 8m

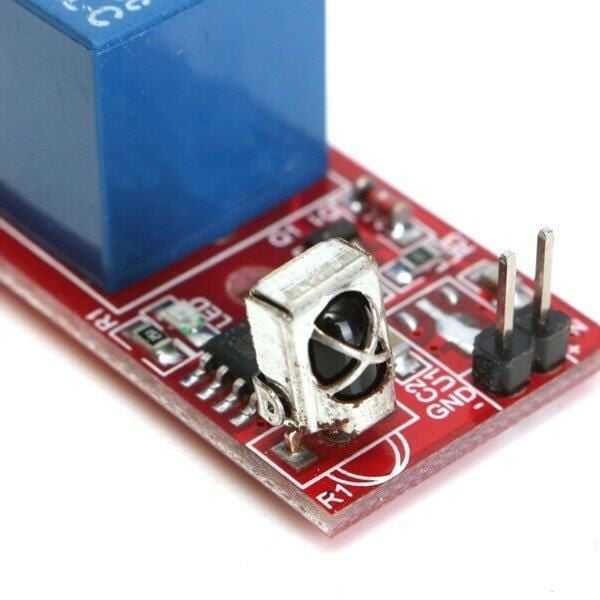

Remote Control, UPD6122 chip and NED coding
Control Frequency: 38K
Remote Control User Code: OxOOFF
Key Value: "ON" --- 40, "OFF" --- 19
Battery: CR2025 (Battery not included.)
Relay module size: Approx. 4.9cm x 1.9cm x 1.7cm
Remote control size: Approx. 8.5 cm x 3.9 cm x 0.6 cm

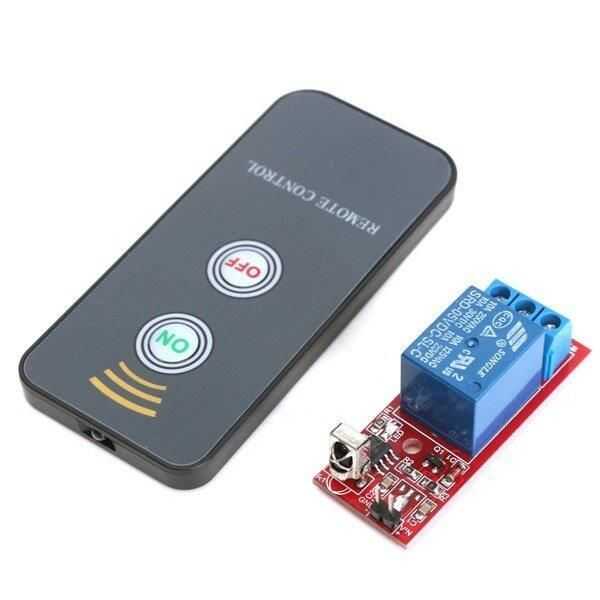

Package included:
1 x Single Channel 5V Relay Module

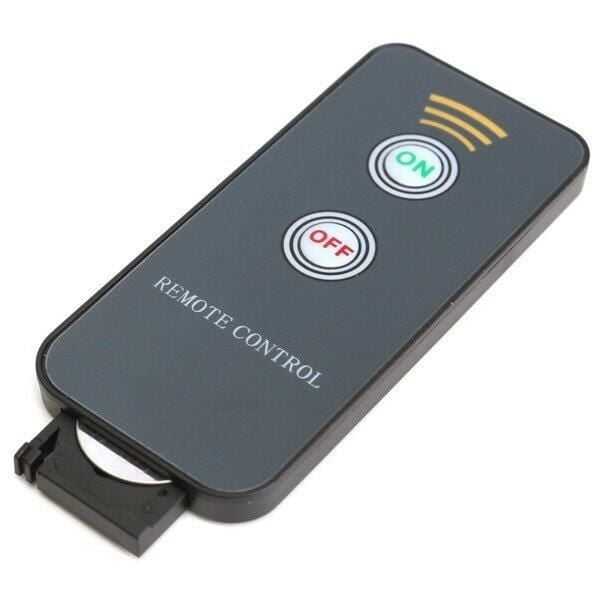

1 x Remote Control
