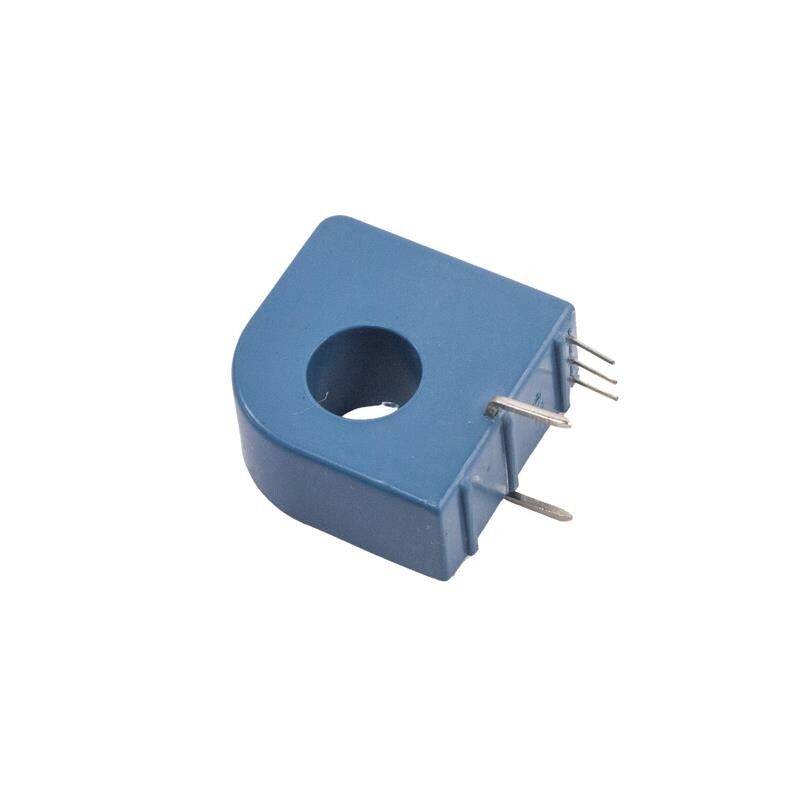

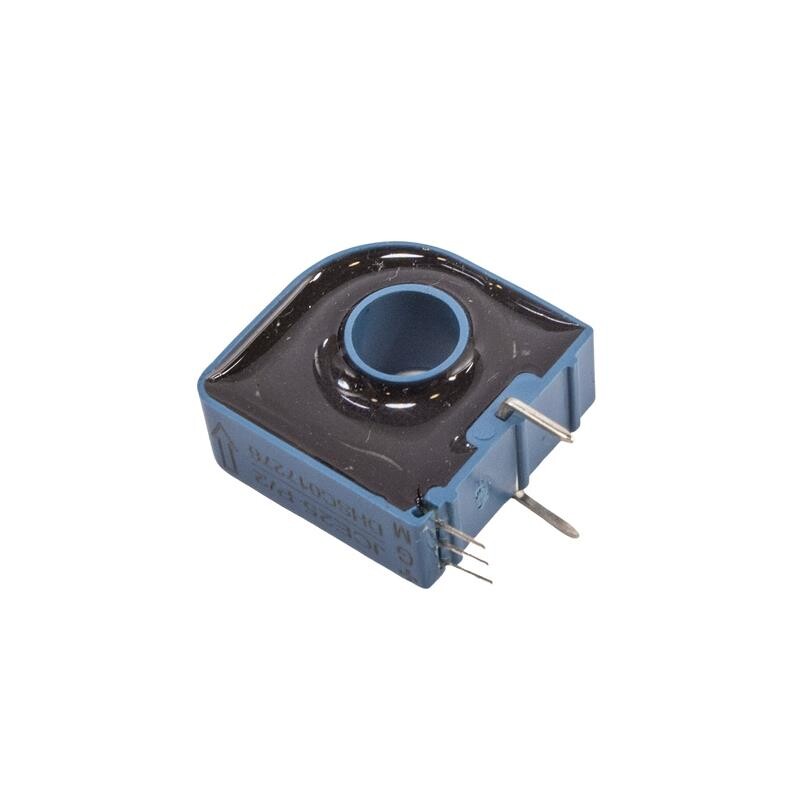

JCE25 P/2 25A Hall Current Sensor
JCE25 P/2 25A Hall Current Sensor. This Hall Effect current sensor is based on the closed circuit principle and is designed with high galvanic isolation between the primary conductor and the secondary circuit. DC and AC current, pulse currents, etc. can be used for measurement. The output of the transducer reflects the actual wave of the current-carrying conductor.
Specifications:
- Rated Input Current: 0-25A
- Power Supply: +5 V DC
- Output Signal: +2.5 V ± 2 V AC/DC
- Current Type: AC/DC
- Window Type: Round
- Hole Size (mm): Ø 8.50

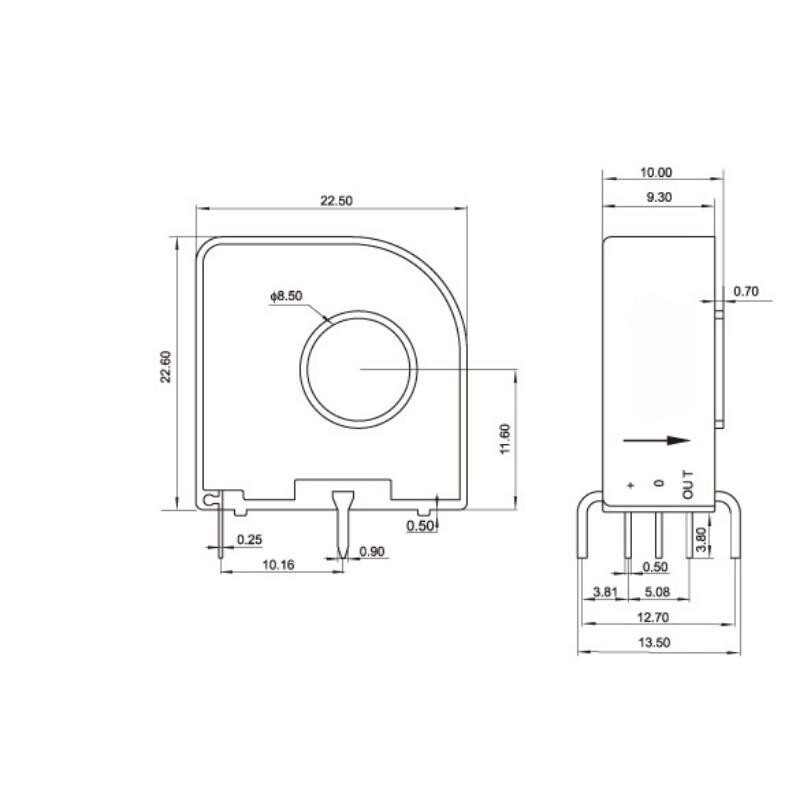

- External Dimension:
- Direction: bi-directional
- Accuracy: 0.5%
- Linearity: 0.1%
- Operating Temperature: -40°C ~ +85°C
- Frequency Bandwidth: DC ~ 200kHz
