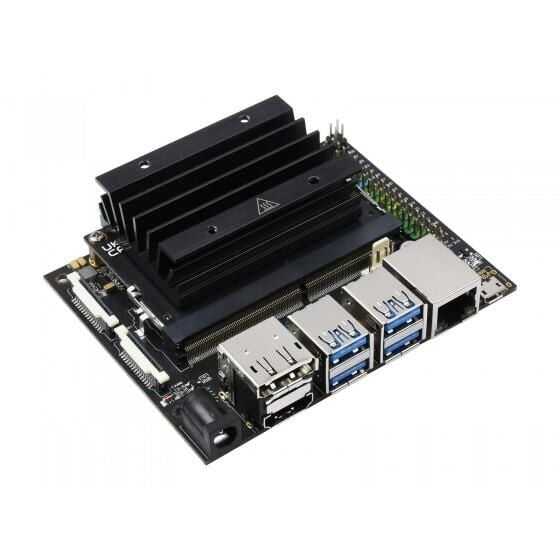

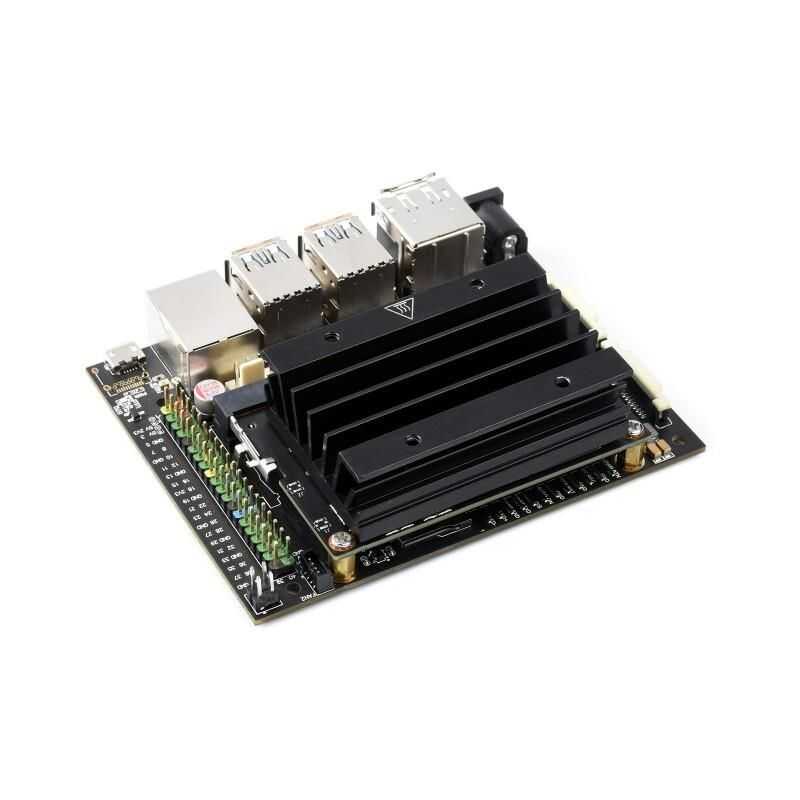

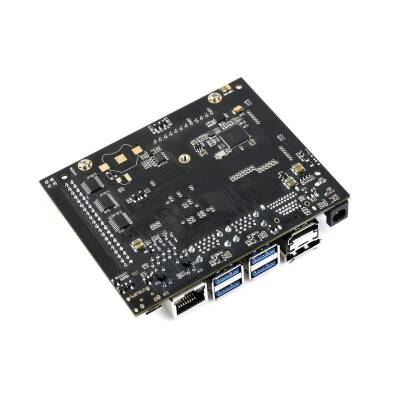

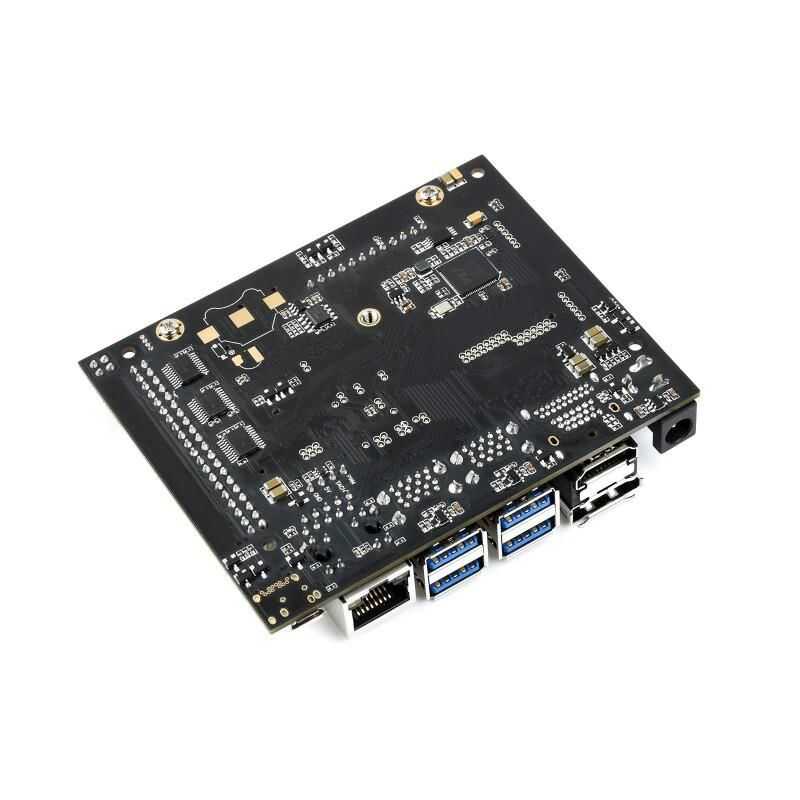

Jetson Nano Development and Expansion Kit - 4GB
Jetson Nano Developer Kit parallelizes multiple neural networks for applications such as image classification, object detection, segmentation, and speech processing. It is a small, powerful computer that allows you to run it as a computer.
By leveraging the power of the core module, it can perform image classification, object detection, segmentation, speech processing, etc. domains and can be used in a variety of AI projects.
The power of modern AI is now available to creators, learners, and embedded developers everywhere.
Includes a Nano module with built-in 16GB eMMC, more stable read/write, no extra TF card required for startup disk, provides enough space to install system image and development/running requirement in most cases.
Comes with 32GB USB drive and 64GB TF card, no need to purchase separately, suitable for complex development projects.
Support TF card. To use this function, you need to modify the device tree file, which is difficult for beginner users. Can be used as memory expansion or startup disk.
Technical Specifications:
- GPU: 128-core Maxwell
- CPU: Quad-core ARM A57 @ 1.43 GHz
- Memory: 4 GB 64-bit LPDDR4 25.6 GB/s
- Storage: 16 GB eMMC + 32 GB USB + 64 GB TF card
- Video Encoder: 250 MP/sec | 1x 4K @ 30 [HEVC] | 2x 1080p @ 60 [HEVC] | 4x 1080p @ 30 [HEVC]
- Video Decoder: 500 MP/sec | 1x 4K @ 60 [HEVC] | 2x 4K @ 30 [HEVC] | 4x 1080p @ 60 [HEVC] | 8x 1080p @ 30 [HEVC]
- Camera: 2x MIPI CSI-2 DPHY lanes
- Connection: Gigabit Ethernet, M.2 Key E expansion connector
- Display: HDMI and DP
- USB: 4x USB 3.0, USB 2.0 Micro-B
- Expansion Interfaces: GPIO, I2C, I2S, SPI, UART
- Dimensions: 100×80×29mm

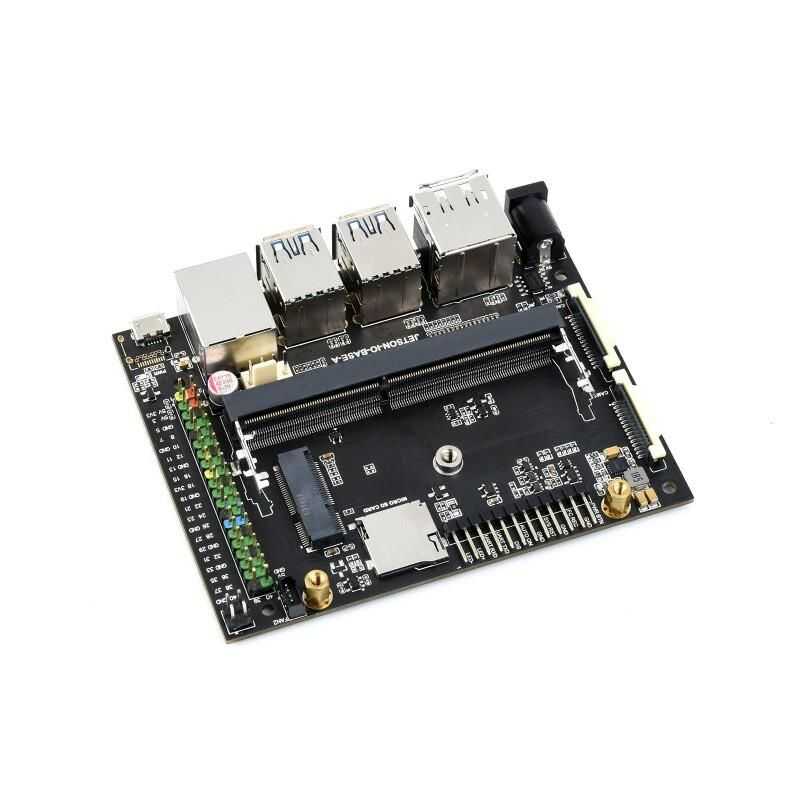

- Core Module Socket
- TF Card Jack
- M.2 Key E connector
- 1.25 mm Fan Socket
- PoE pins: PoE module not included
- 40PIN GPIO Socket
- 2.54 mm Fan Socket
- Micro USB Port : For 5V power input or USB data transmission
- Gigabit Ethernet Port
- 4x USB 3.0 Port
- HDMI Port
- Display Port
- DC Jack: for 5V Input
- 2x MIPI CSI Camera Connector
