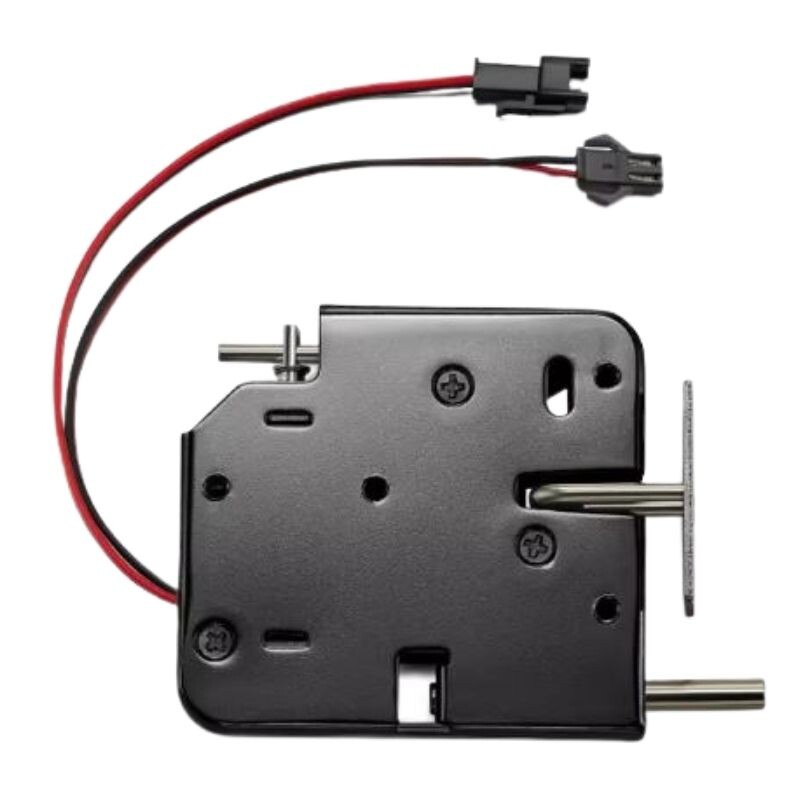

K02 12V 2A Magnetic Solenoid Lock - Push Spring

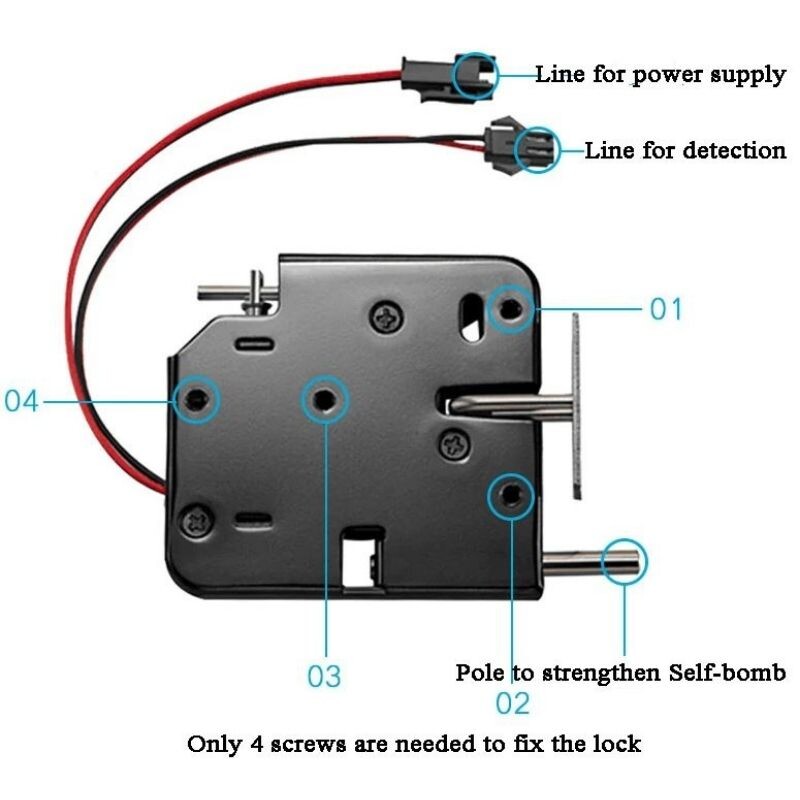

The electric lock mainly adopts carbon steel for material. It is strong and safe to use. It is stable, durable, energy-saving and has a long service life. The connector type of K02 is SM 2 Pin. Compared with K01, the additional cable can return the door status feedback signals and increase the security. If your cabinet does not have this function, you can ignore it. There is a female connector for power supply and another male connector for feedback signals.

Locked when power is cut off. Power must be supplied instantly to unlock the door. The hidden handle can be used for emergency unlocking. Pressing it can open the door without electricity.

Suitable for cabinet door weighing 0.5~4kg. Used for vending machines, storage shelves, file cabinets, display cabinets, ticket delivery, refrigerated cabinets, mailboxes, newspaper boxes, local grocers, book cabinets, drawers, etc.

The push spring is activated when the trigger is given and is used to open cabinet doors, etc. For more information, you can review the sample usage video.

• Model: K02 (with feedback signal cable)
• Rated voltage: DC 12V
• Rated current: 2A
• Lock Force Hook: 150kg
• Working Environment: - 40 to 60 ℃
• Solenoid Life: 0.5 million under nominal operating conditions times
• Cable Length: 160mm
• Suitable: 0.5 ~ 4kg weight cabinet door
• Size: Approx. 73 × 58 × 13mm
