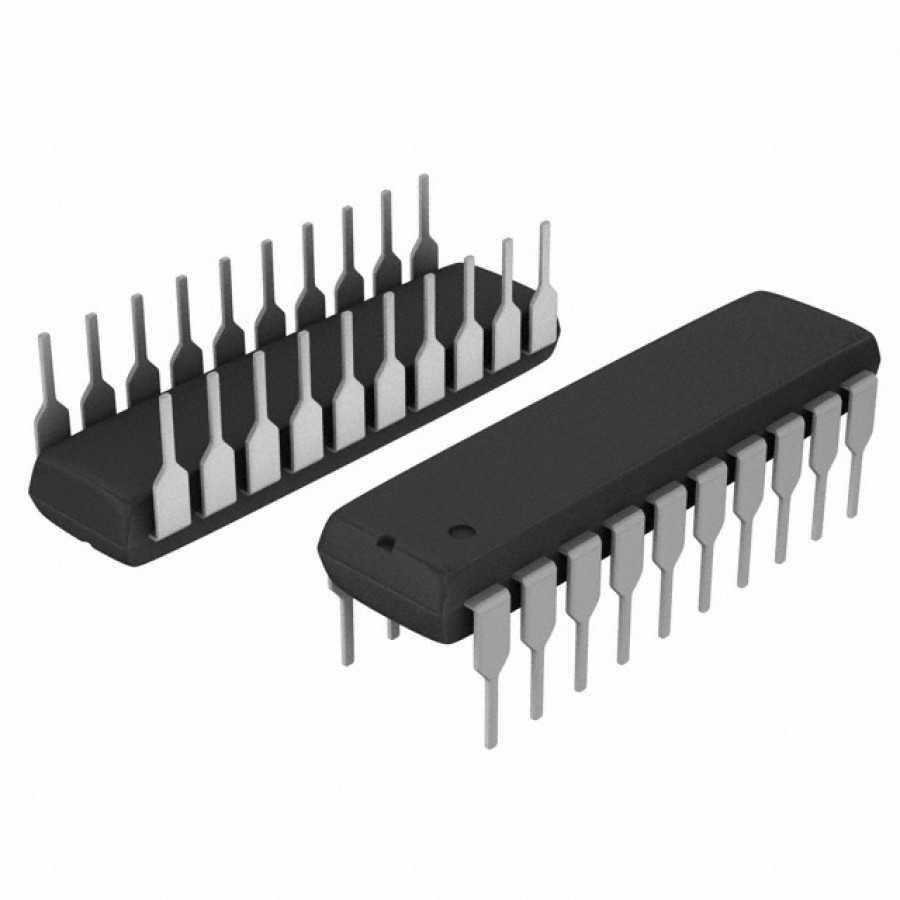

L293E are quad push-pull drivers capable of delivering output currents up to 1A per channel. Each channel is controlled by a TTL-compatible logic input, and each driver pair (full bridge) is equipped with a blocking input that turns off all four transistors. A separate supply input is provided for the logic so that it can be operated at a lower voltage to reduce dissipation.
| Series |
L293E |
| Supply Voltage |
4.5 V - 36 V |
| Output Current : |
1A |
| Work Feed Current |
2mA |
| Type |
Full Bridge
|
| Number of Pins |
20 |
| Package Type |
DIP-20 |
