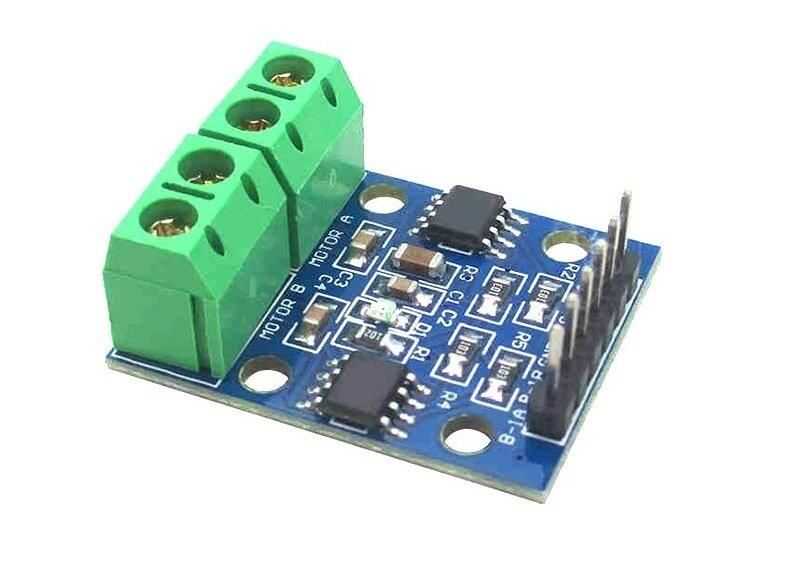

L9110 Dual Motor Driver Board



L9110 dual motor driver card is a very useful mini DC motor driver card that is affordable and small in size. There is an L9110 motor driver IC on the board. Two separate DC motors or a 4-wire 2-phase stepper motor can be controlled in both directions with the driver card, which operates at an input voltage between 2.5-12V.

The driver output voltage is 7.6V. In this way, it is very easy to use with 6V motors. It can continuously deliver 800mA and instantaneous 2A per channel. Mini sumo can be easily used in line-following robots and a wide variety of motor control applications. There is no enable pin on the driver. Channels are constantly active. PWM can be applied directly to the input pins.



IA2: Left engine 1st input

Technical Specifications

• Can control two separate motors independently of each other.
• It can deliver 800mA current per channel.
• It can deliver 7.5V voltage per channel.
• Dimensions: 31 mm x 22 mm
• Weight: 7 g
