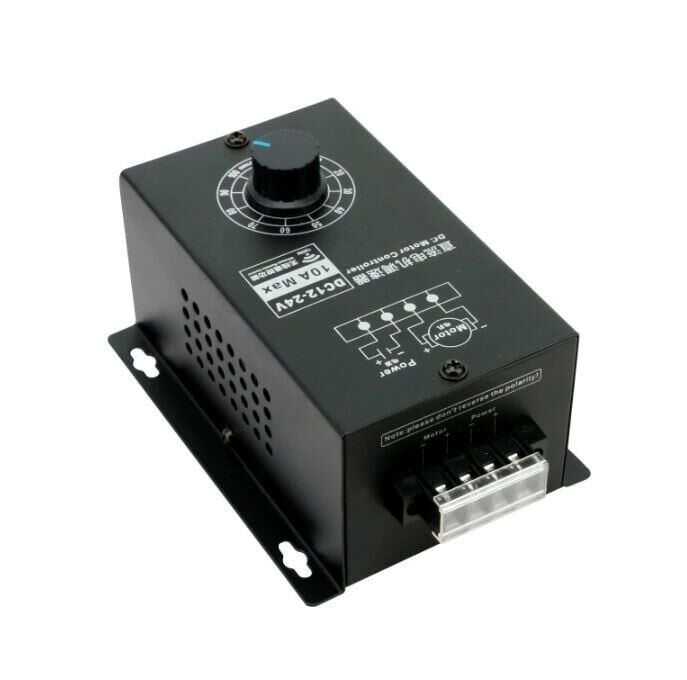

Controlled 10A DC Motor Drive PWM DC 12-24V

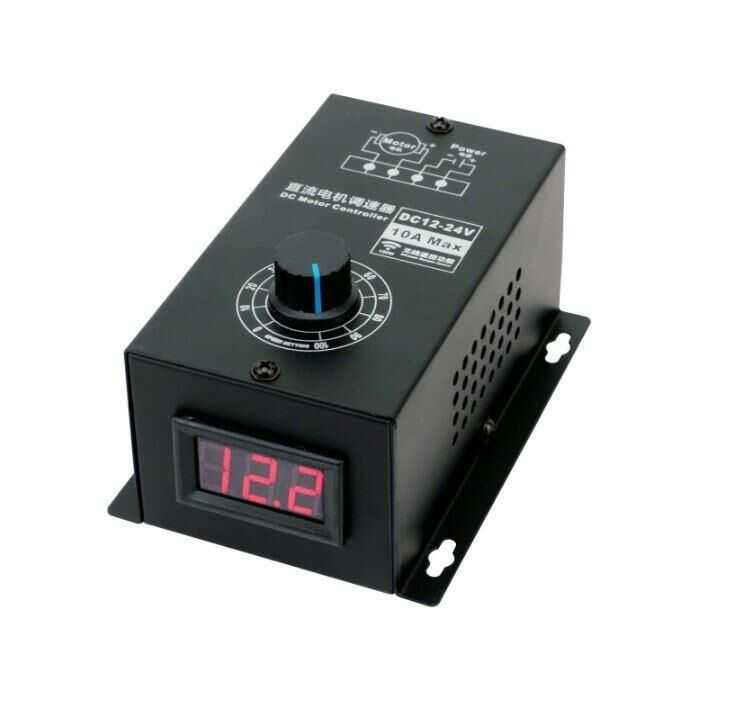

PWM DC Motor Speed Regulator with Pulse Width Modulation (PWM) It controls the speed of a DC motor by adjusting the Large 3-digit LED display numbers allow viewing in the most adverse conditions. The display range of the 3-digit LED display is between "000” - "100”. (For example, when "60" is displayed, it means that the PWM output duty cycle is 60%).

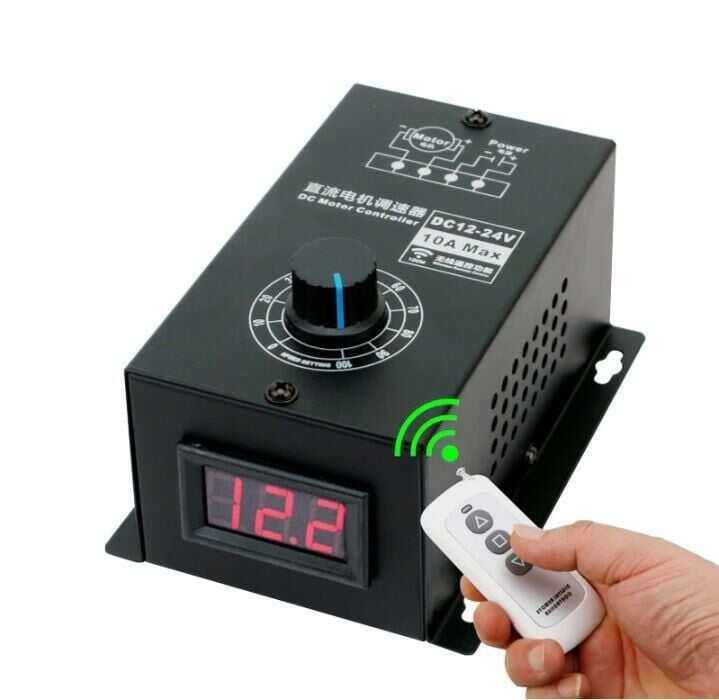

You can turn it on and off, increase or decrease the speed, with the remote control. The remote control distance is 100m. .It can also be controlled from the potentiometer on it.

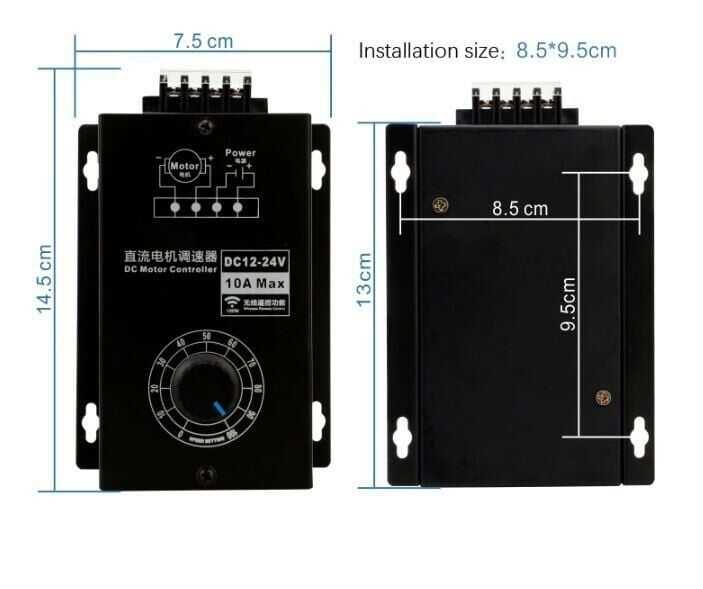

Technical Specifications
Input supply voltage range: DC 10V-24V
Rated current: 5A, Max 10A
PWM frequency: 13kHz
Adjustable speed range: 0-100%
Supports PLC control
WARNING:
-Before attempting to wire the drive, Make sure it is turned off.
-DO NOT CONNECT THE POSITIVE AND NEGATIVE POWER LOADS REVERSE. THIS WILL DAMAGE THE CONTROLLER.
-TO CHANGE THE DIRECTION OF THE MOTOR, SWITCH THE POSITIVE AND NEGATIVE CABLES OF THE MOTOR.
1. Connect the wires, refer to the "wiring diagram".
2. Turn on the power and adjust the potentiometer.
3. The LED display shows the PWM output duty cycle.
