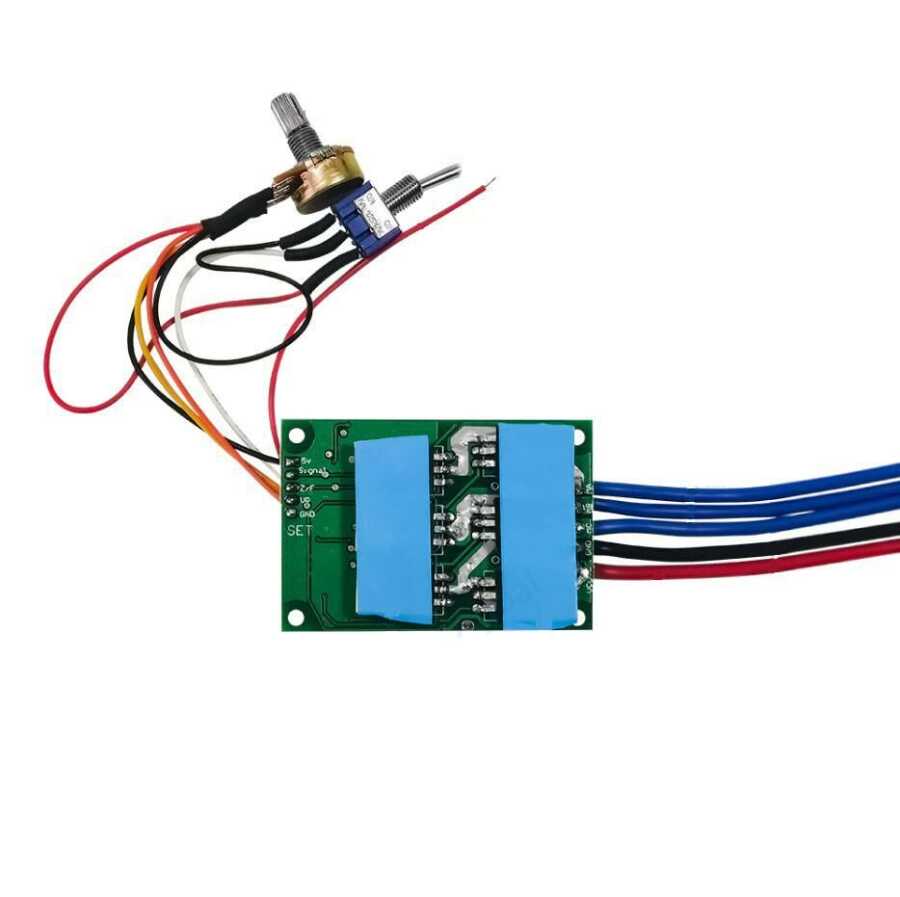

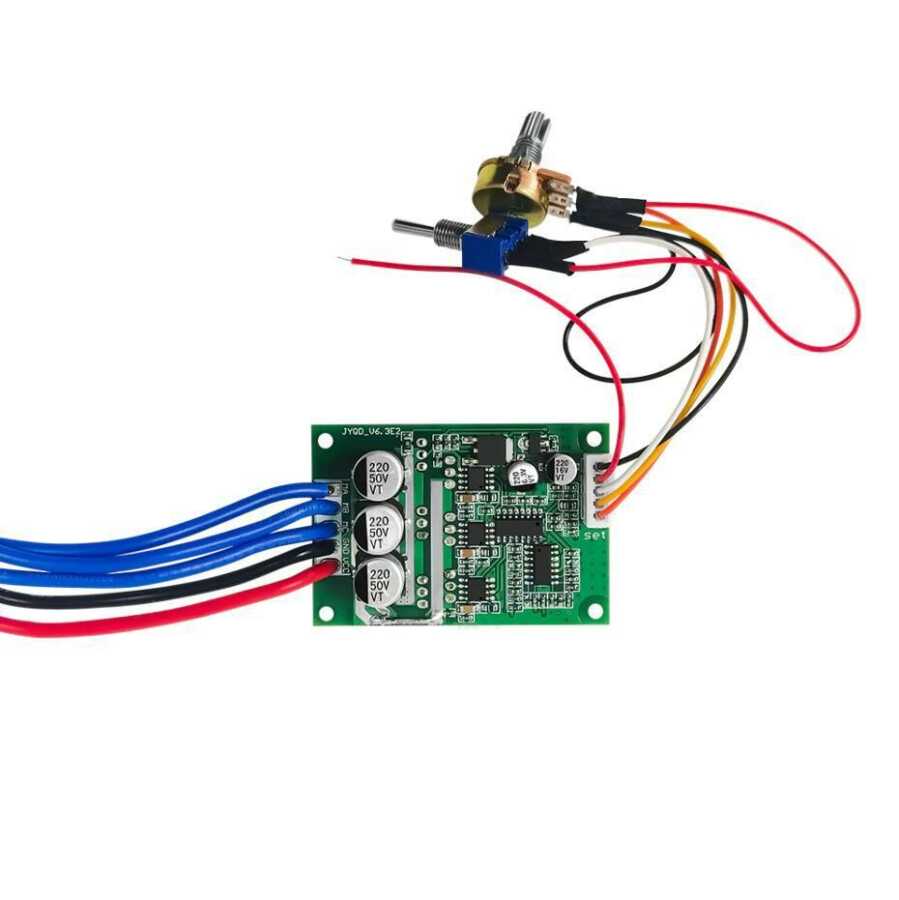

DC 12-36V 500W Brushless Motor Driver
DC 12-36V 500W Brushless Motor Driver. It is a brushless motor driver with which you can control your brushless motors. It works with a maximum of 20A and 500W.
Specifications:
- Supply Voltage: 12-36VDC
- Operating Current: <= 15A
- Max. Current: 20A
- Drive Power: <=500W
- Overcurrent Protection
- Operating Temperature Range: -40 ~ 85°C
- Size: 63x43x17mm
Motor wiring instructions
- VCC (+ connected to power)
- GND (connected to power connected-)
- MC (W connected to motor phase)
- MB (V connected to motor phase)
- MA (U connected to motor phase)
