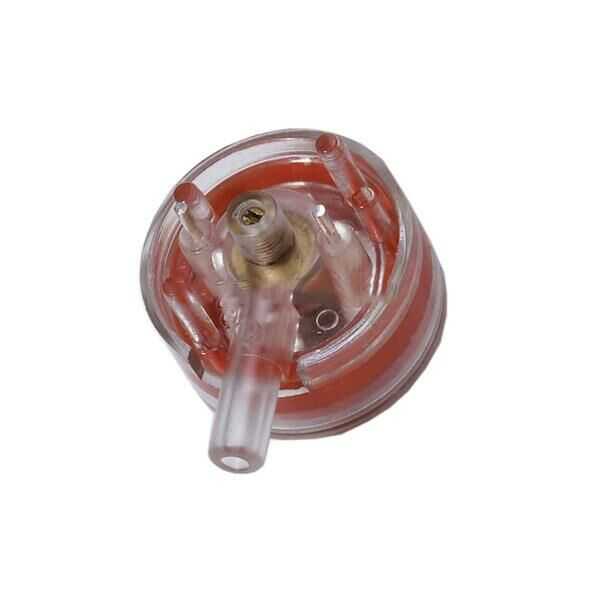

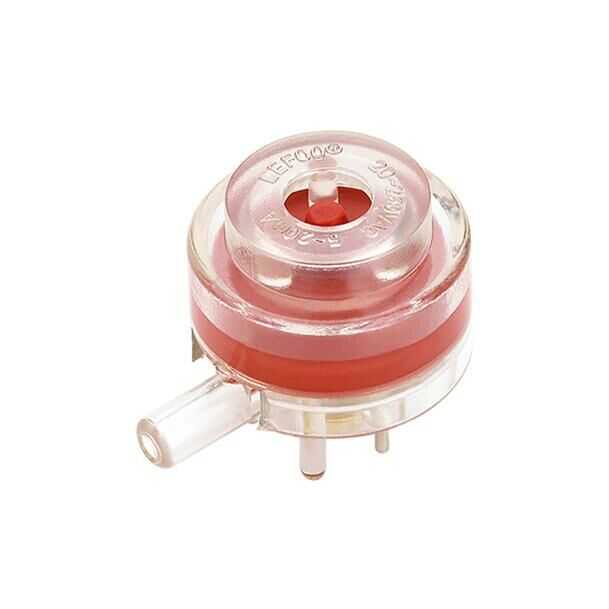

LFS-01 vacuum pressure switch is applied for the detection of both negative and positive pressure.
Supplied with solder pin connections and specifically designed for mounting on "Printed Circuit Boards", but can also be supplied with different leads, terminals and socket. It is designed as an economical interface with virtually no hysteresis between pressure systems and Printed Circuit Boards.
Technical Specifications
Model: LFS-01
Pressure: 160mbar
Electrical Function: 1 pole NO
Switch Value: 20 mA, 250 V
Operating Temperature: -10~95°C
Electrical Connections: Solder pins 1.0 mm, 10 mm apart
