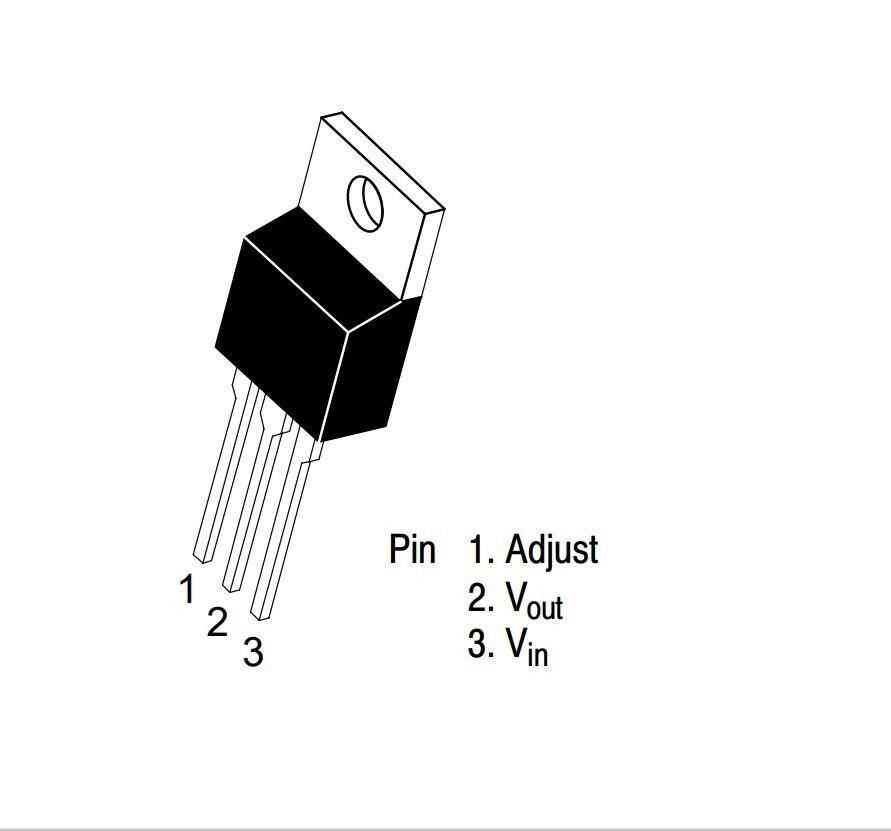

LM350 provides 3.0 A in the output voltage range of 1.2 V to 33 V It is an adjustable three-terminal positive voltage regulator that can provide more than . This voltage regulator is extremely easy to use and requires only two external resistors to adjust the output voltage. . It also uses internal current limiting, thermal shutdown, and safe area compensation.
LM350 serves a wide variety of applications, including on-board local regulation. This device also makes a particularly simple adjustable switching regulator, a programmable output regulator, or by connecting a fixed resistor between the adjustment and the output the LM350 can be used as a precision current regulator.
Usage Fields
- Positive voltage regulations
- Variable power supply
- Current limiting circuits
- Reverse polarity circuits
- Desktop PC, DVD and other consumer products
- Motor control circuits
