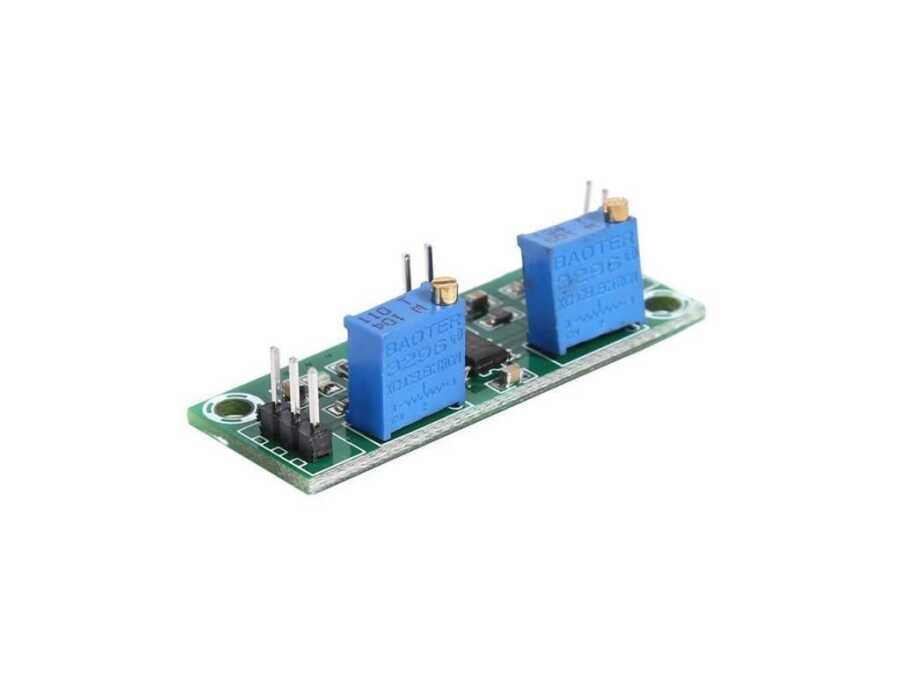

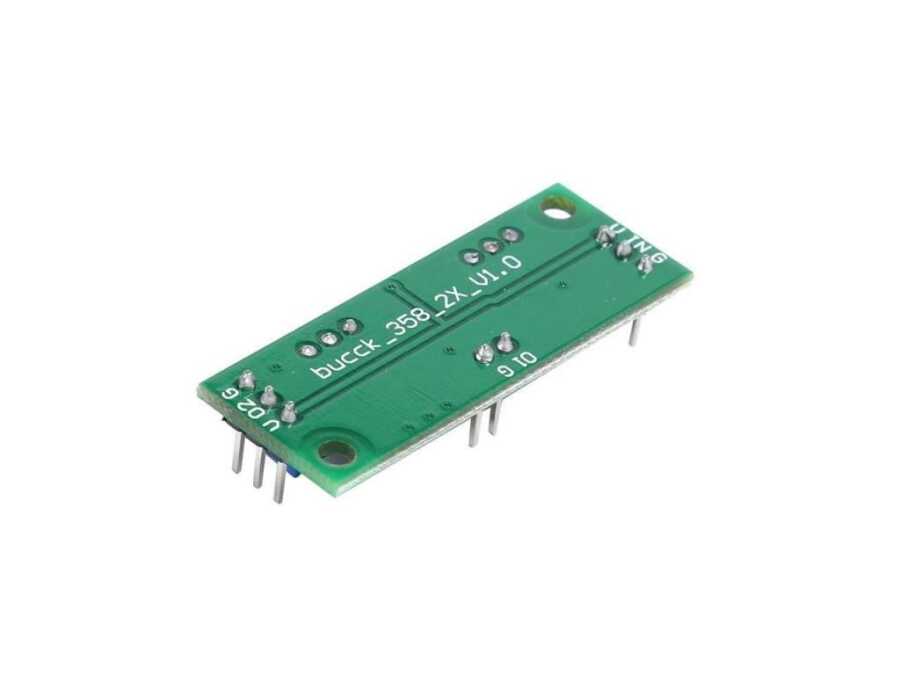

LM358 OpAmp Two Stage Signal Amplifier Module
LM358 is a two-stage amplifier that can amplify weak DC signals such as DC voltage signals, DC pulse signals and millivolt or weaker signals. It is a staged operational amplifier.

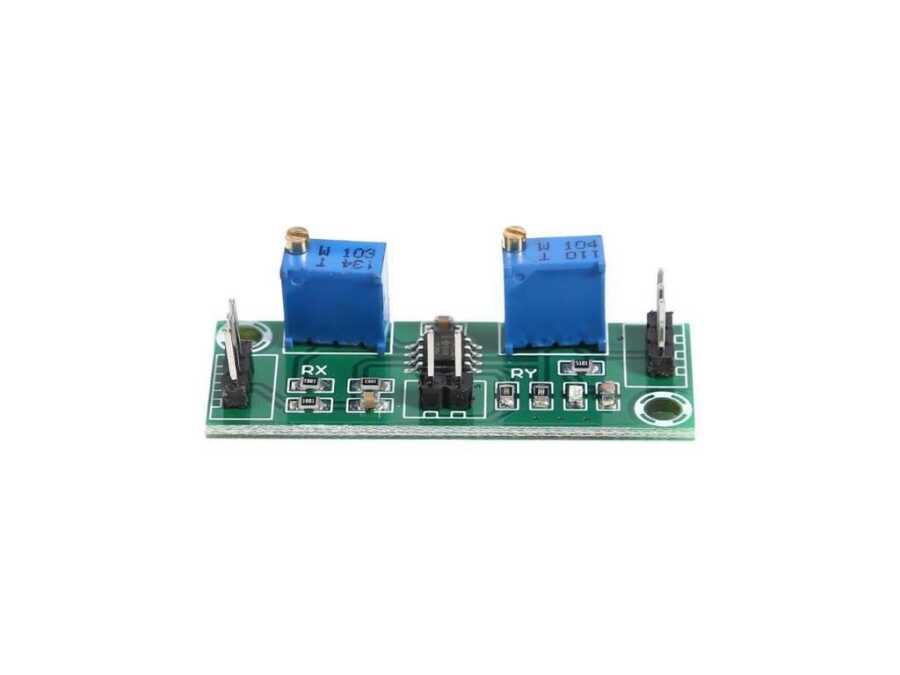

There are two potentiometers, the first and second stages are adjusted by single-stage amplification, but the total amplification is a product of the two-stage multiplier, so the amplification will be greatly adjusted.
Technical Specifications:
- Supply Voltage: 3.5-24V DC Power Supply
- Current Output : Maximum 15-20MA (Non-Linear)
- Voltage Output: Output = Input Voltage Signal * Amplification Multiplier
- Amplification Multiplier: Total Multiplier = First Multiplier * Second Multiplier

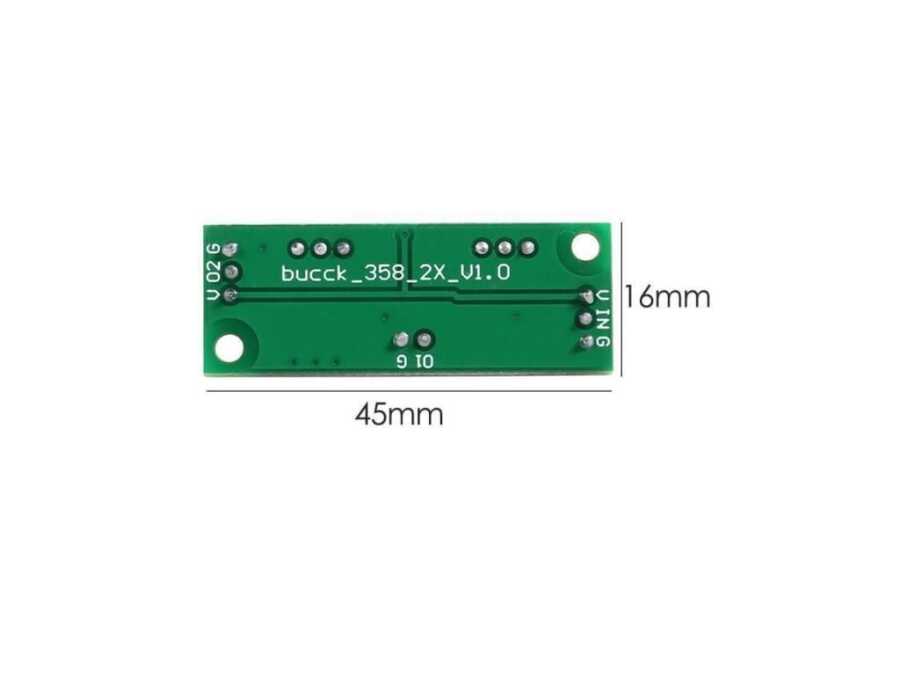

< LI>Board size: 45mm*16mm*13mm/1.77*0.62*0.51''- The counterclockwise rotation of the two potentiometers on the board is multiplied.
- Packing weight: 4g
Note: Please allow 1-3mm differs due to manual measurement.
