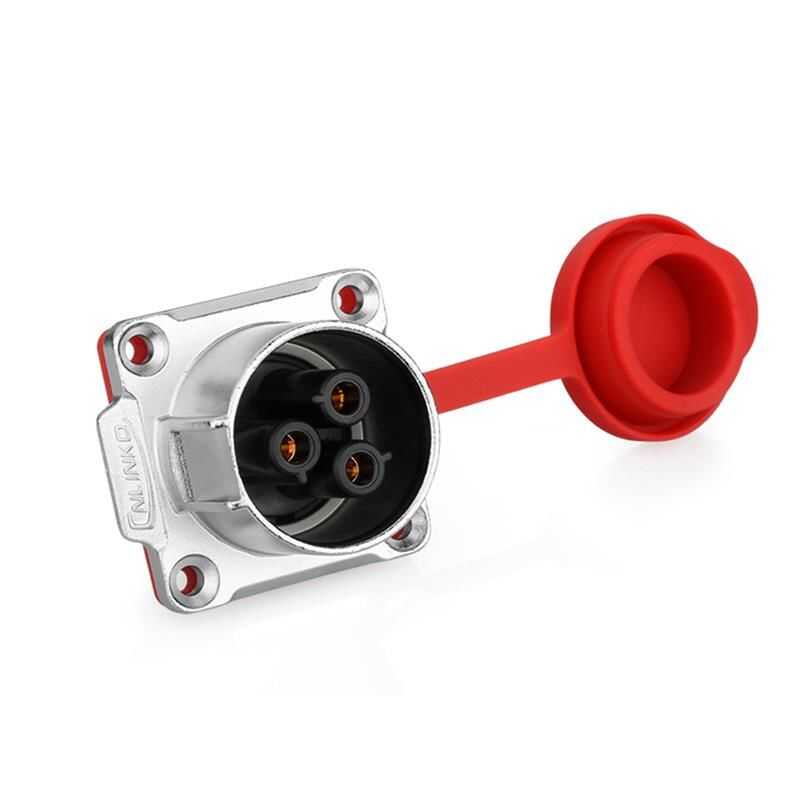

LP-24-J03SX-03-401 3-Pin Waterproof Connector - Female
It is a 3-pin female connector for power applications. Compatible with 12-14 AWG cable. It has a snap design for a reliable connection. Built to withstand the demands of industrial applications.
The LP series is one of the best-selling waterproof connector series made from high-performance engineering plastics. Quick plug design allows one-handed plug/remove. It has gold plating technology that is resistant to corrosion and suitable for high and low temperatures. LP-24 series connectors are widely used in various harsh environments and situations such as audio-visual equipment, medical equipment, industrial control, inspection and measurement due to their small size, flexible operation and automatic plug-in/disconnect. Compact components, simple operation, fast and stable connection, IP67-rated outdoor waterproof performance.
Technical Specifications
- More gold-plated contacts for increased corrosion protection
- PBT shell
- High temperature and pressure resistance
- IP65/67 rating when connected
-
Number of Pins: 3
-
Cable Size: 14-12 AWG
-
Diameter Range: 8-12mm
-
Contact Diameter: 3mm
-
Rated Current: 25A
-
Operating Voltage: 500V< /div>
-
Contact Resistance: <1mOhm
-
Withstand Voltage: 2500V
-
Insulation Resistance: > 500MOhm
-
Operating Temperature: -40 C to 80 C (-40 F to 176 F)
-
Housing Material: High Performance Plastic
-
Hardware: Zinc Alloy
-
Contact Material: Gold-Plated Copper Alloy
-
Flammability Rating: UL94-V0
-
Approvals: UL, CE, CCC, RoHS, ISO9001
