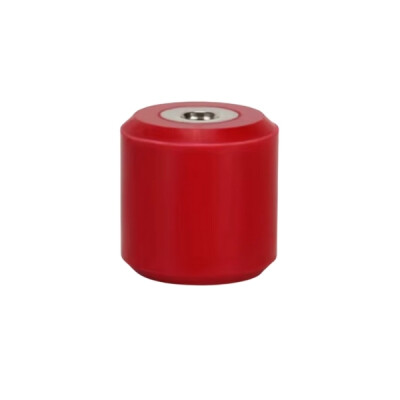

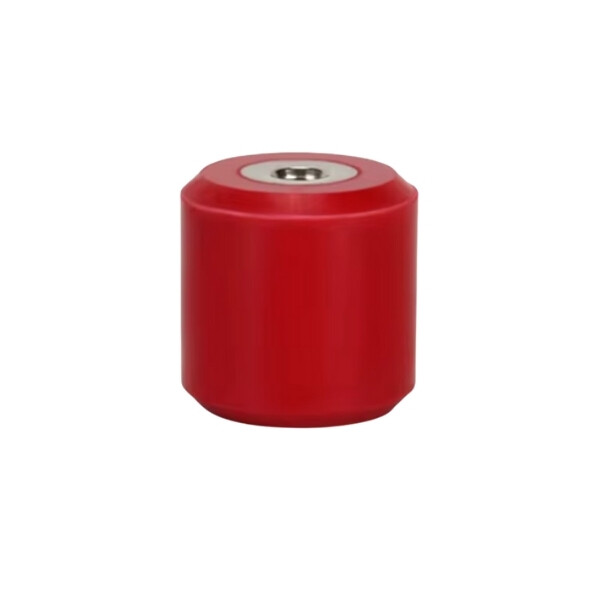

MNS 30X30 M8 Busbar Post Insulator

MNS 30X30 M8 Busbar Post Insulator

MNS 30X30 M8 Busbar Post Insulatoris made of flame retardant fiberglass reinforced polyester and is stronger and holds closer tolerances than traditional porcelain insulators. Our stand-off insulators isolate electrical conductors from mechanical assembly, preventing short circuits, combining high mechanical strength with high arc resistance.

Features

• Insulation Voltage: 8 KV
• Torque: 10 N/m
• Usage Temperature Range: -40 ~ 140°C

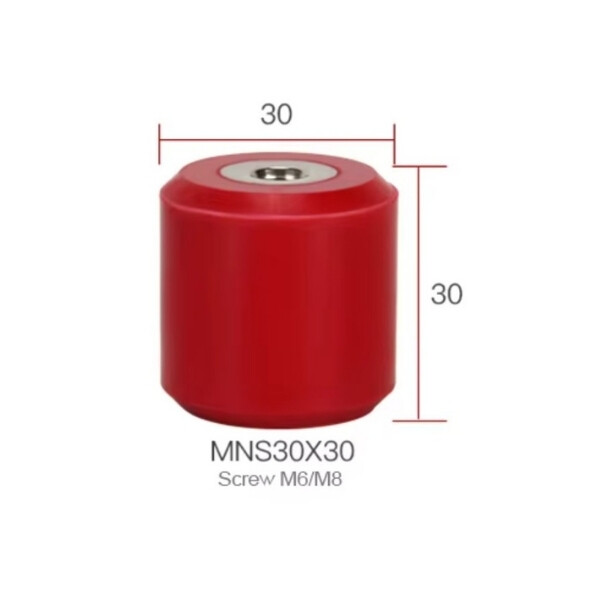

• Diameter: 30mm
• Height: 30mm
• Metric Size: M8
• Screw Depth: 9mm
