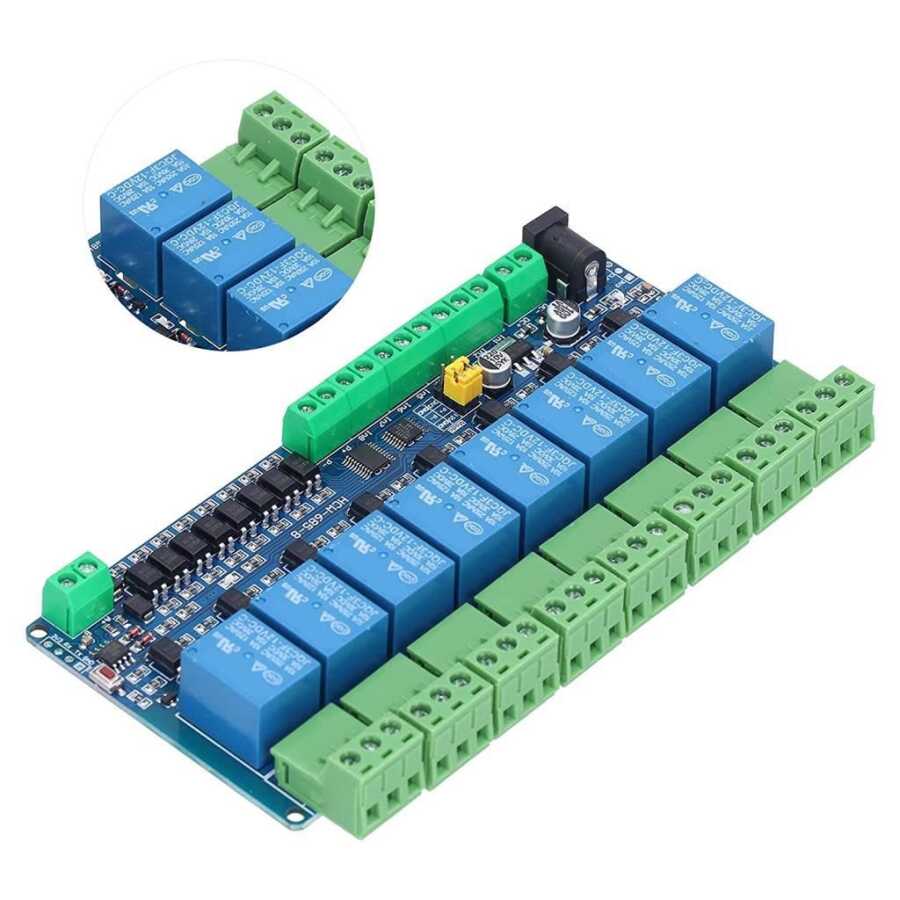

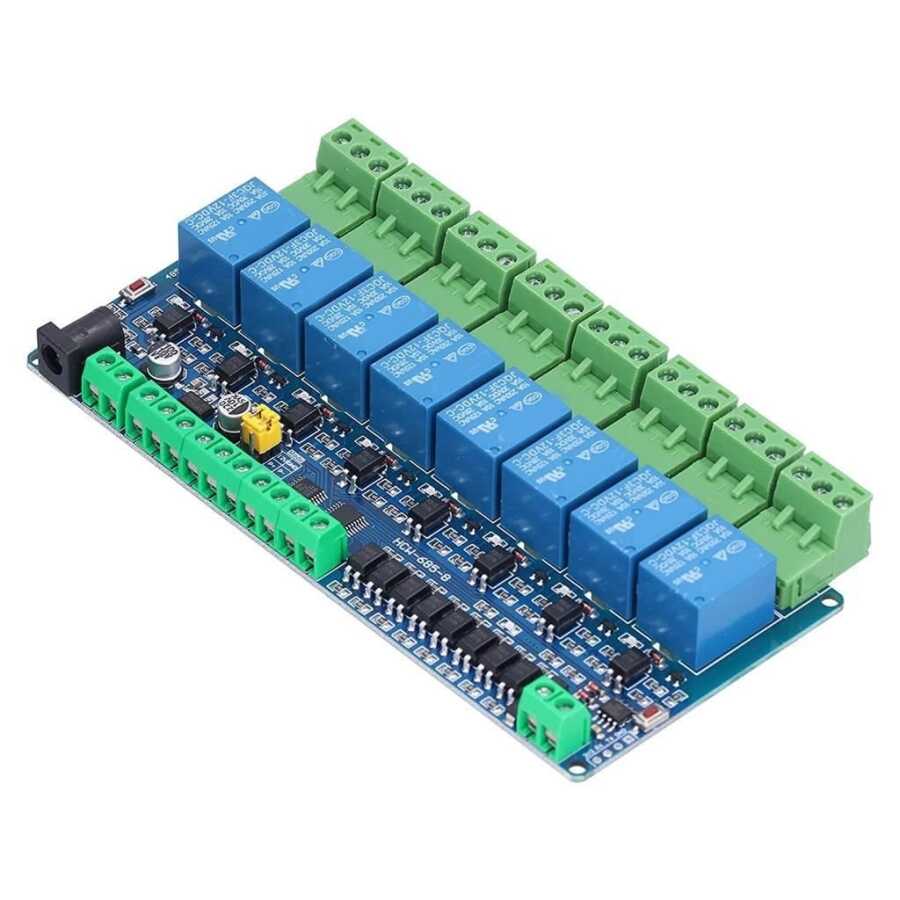

Modbus-RTU 12V 8 Channel Relay Module
Modbus RTU/RS485 8 Channel 12V Relay Card is used to control devices via Modbus RTU or RS485 . This is a single-channel Modbus RTU relay module equipped with stable 8-bit MCU and RS485 level communication chip, adopting standard MODBUS RTU format RS485 communication protocol. It can realize 2-bit input signal detection and provide 2-bit relay output. Can be used for digital sensing or power control situations.
Technical Specifications
-
Product name: 8Bit MODBUS RTU Relay Module
-
Operating voltage: DC 12V
-
Working current: 1A
-
Baud rate: 4800/9600/19600bps(default 9600bps)
-
Optocoupler input signal: DC 12V
-
Set address:1~255
-
Relay control mode: ON/OFF,Delay_ON,Delay_OFF mode
-
Delay time: 0~25.5s
-
Load: AC 250V 10A or DC 30V 10A
-
Protocol:Modbus RTU
-

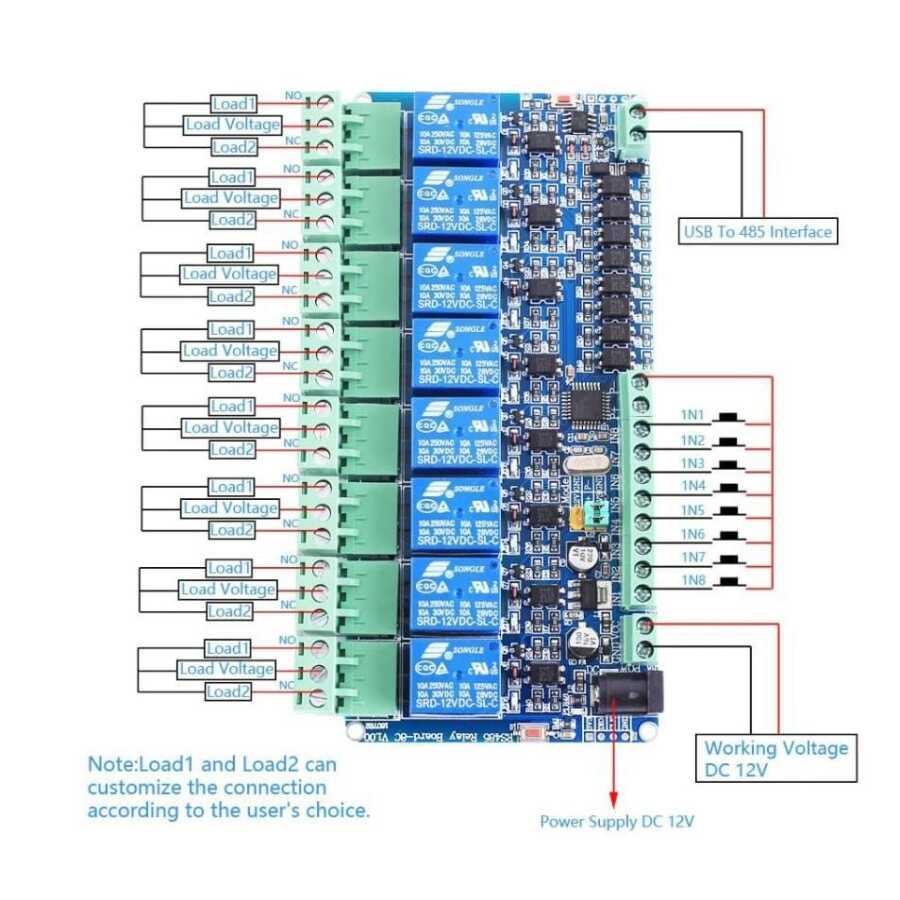

Interface: RS485/TTL UART
-
Supports Modbus RTU protocol
-
Output indication in multi-mode
-
Address adjustable
-
Support input reverse connection protection
-
Relay output
-
Support parameter memory function
-
Optocoupler isolation
-
PCB Size: 145*78*22mm
Modbus RTU Instruction
