MPPT 5A Voltage Stepper - Solar Panel Charging Circuit

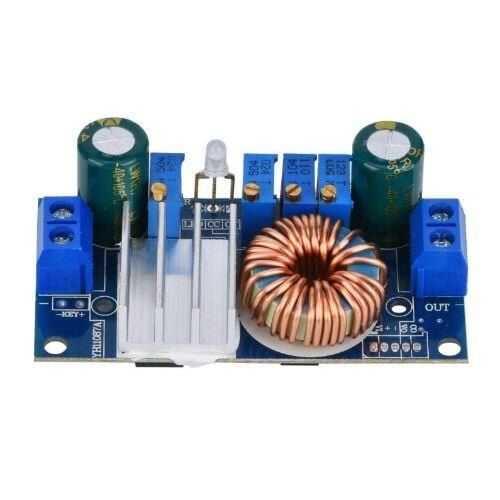

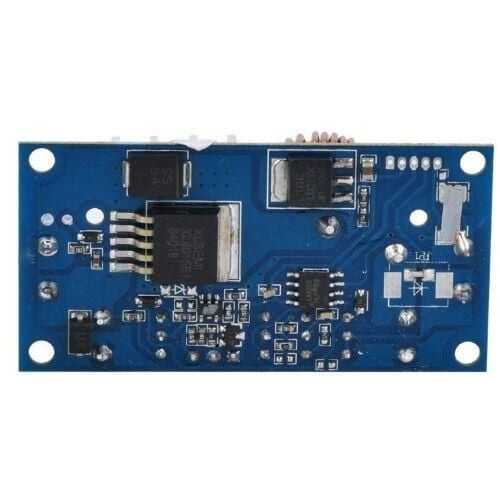

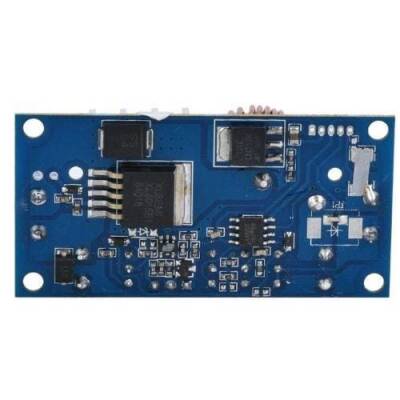

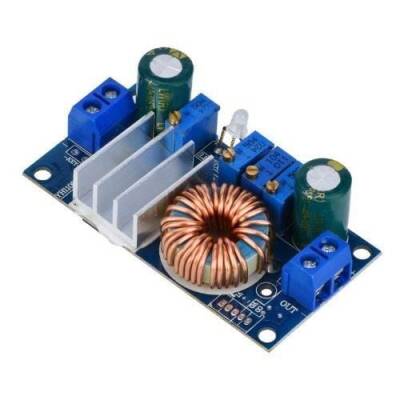

MPPT 5A Voltage Stepper - Solar Panel Charging Circuit. It works with a supply voltage between 6-36V. It has MPPT protocol, which is ideal for solar panel charging. Its operating frequency is 180Khz. It has short circuit and over-temperature protection. It does not have reverse polarity protection. Be careful when making connections. It has an LED on it to show the charging status. .It turns green when fully charged and red when charging.



MPPT value, current and output voltage can be adjusted with the trimpots on it.

• Input Voltage: 6 - 36V
• Output Voltage: 1.25 - 32V adjustable (5V by default)
• MPPT voltage range: 6 - 36V
• Output Current Range: 0.05 - 5A (Default 3A)
• Operating Temperature: -40 ℃ ~ 85 ℃
• Operating Frequency: 180KHz
• Conversion Efficiency: 95%
• Short Circuit Protection
• Over-Temperature Protection
• Dimension: 60x31x22mm
