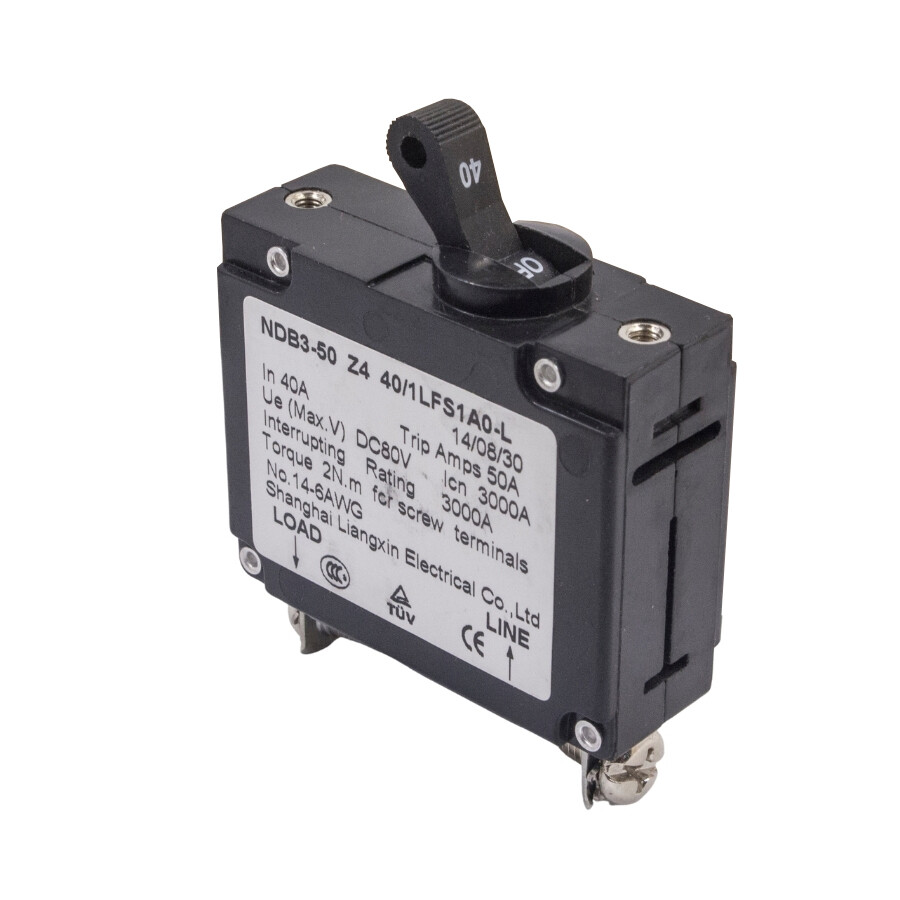

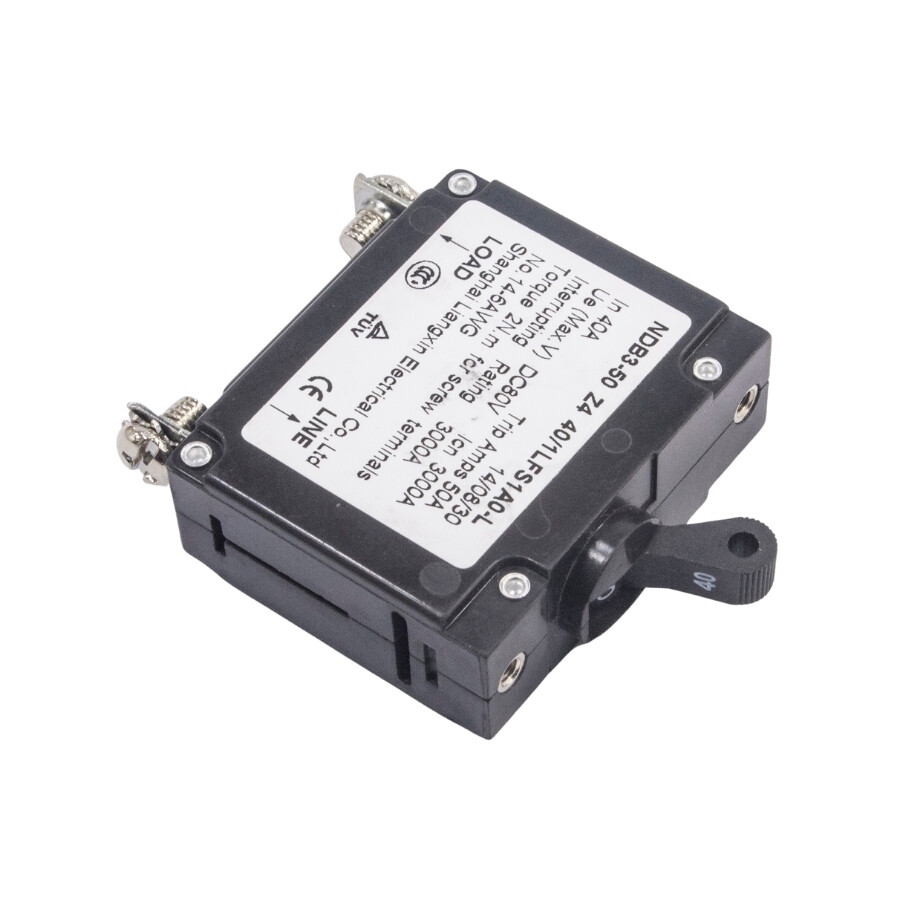

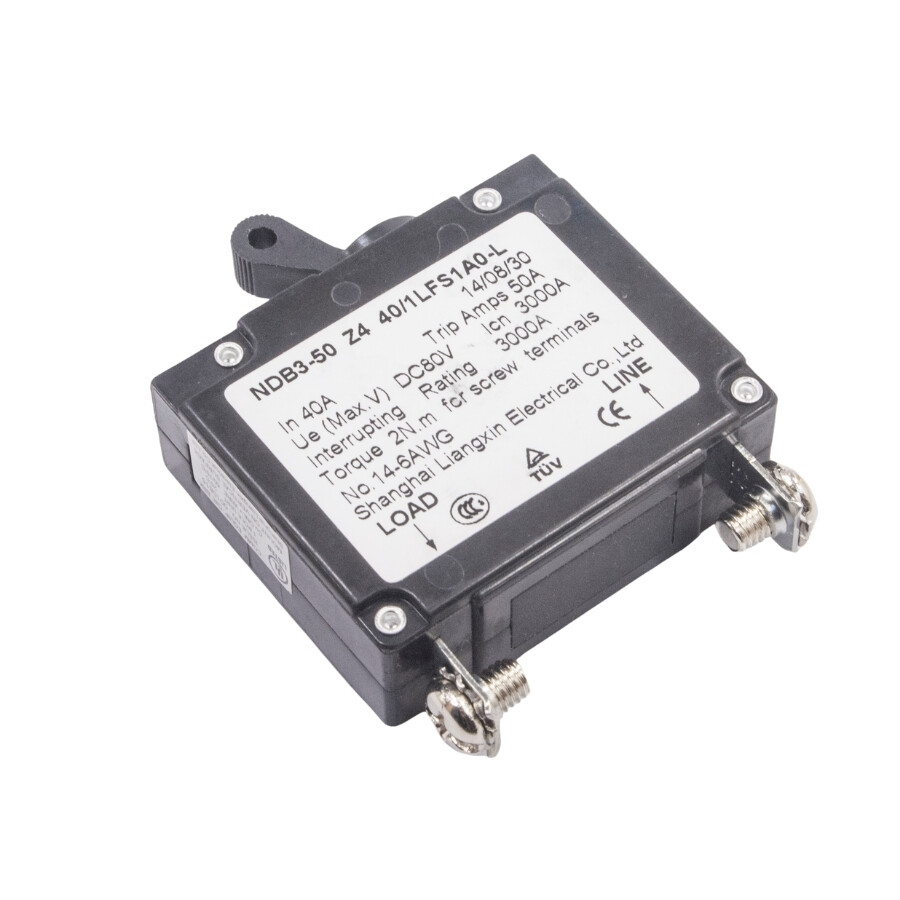

NDB3-50 40/1LFS1A0-L 80V DC 40A Circuit Breaker

NDB3-50 40/1LFS1A0-L 80V DC 40A Circuit Breaker

NDB3-50 40/1LFS1A0-L 80V DC 40A Circuit Breaker is applicable to power systems with rated current up to 40A, rated voltage AC480V, AC277V, 50Hz/60Hz and DC80V and below.

It can be used for overload and short circuit protection, and can also be used for infrequent connection and disconnection. Widely used in computer and peripheral equipment, industrial automation system, telecommunication equipment, general power supply system, UPS uninterruptible power supply equipment, railway locomotive, marine power system, aviation, elevator control system and mobile power supply equipment.

Features

• Model: NDB3-50
• Nominal Current: 40A
• Trip Amps: 50A
• Icn: 3000A
• Cable Cross Section: 6-14AWG

Datasheet
