NEMA 14 Bipolar. 200 Steps. 35×26mm. 7.4V Stepper Motor - PL-1207

Ratings & Reviews (0)
Comment
Brand: Soyo
Product Code: MTR.STP.03.000001
Stokta 10+ ürün
598.40 TL + VAT
VAT Included: 718.08 TL

NEMA 14 Bipolar, 200 Steps, 35×26mm, 7.4V Stepper Motor - PL-1207

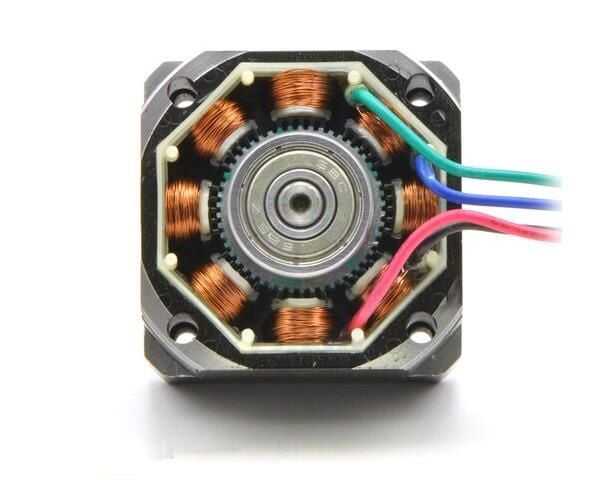

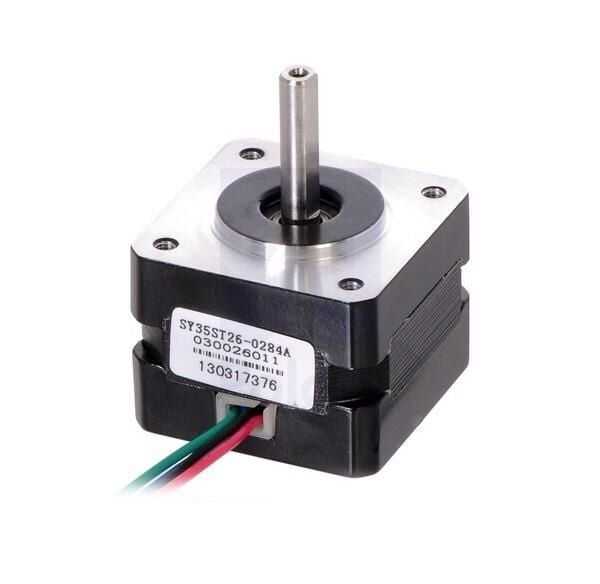

SY35ST26-0284A hybrid bipolar stepper motor with 1.8° step angle (200 step / revolution). Each phase draws 280 mA at 7.4 V, allowing a holding torque of 650 g-cm. The motor has four color-coded wires terminated with bare ends: black and green connect to a coil; red and blue are connected together. The motor can be controlled with a pair of suitable H-bridges (one for each coil), but bipolar stepper motor driver.

Technical Specifications

  • Dimension:35 mm square × 26 mm, not including spindle (NEMA 14)
  • Weight: 130 g
  • Spindle diameter: 5 mm "D”
  • Steps per revolution: 200
  • Current rating: 280 mA per coil
  • Voltage rating: 7.4 V
  • Resistance: 26 Ω per coil
  • Holding torque: 650 g-cm
  • Inductance: 19.2 mH per coil
  • Output shaft supported by two ball bearings

Dimensions

The diagram below shows the stepper motor dimensions in mm. Its length is 26 mm. The output D-shaft has a length of 21 mm and a diameter of 5 mm, with a flattened cross section of 0.5 mm. This shaft is Can be used with 5mm Motor Mounting Bracket.

NEMA 14 Bipolar, 200 Steps, 35×26mm, 7.4V Stepper Motor - PL-1207

Stepper Motor Applications

Stepper motors are often used in a variety of applications where precise position control is desired and the cost or complexity of a feedback control system is not warranted. A few applications where stepper motors are often found:
  • Printers
  • CNC machines
  • 3D printer / prototyping machines
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard disks

Weight(Kg)
0.1
