NEMA 14 Bipolar. 200 Steps. 35×36mm. 2.7V Stepper Motor - PL-1209

Ratings & Reviews (0)
Comment
Brand: Soyo
Product Code: MTR.STP.03.000003
Stokta 10+ ürün
774.40 TL + VAT
VAT Included: 929.28 TL

NEMA 14 Bipolar, 200 Steps, 35×36mm, 2.7V Stepper Motor - PL-1209

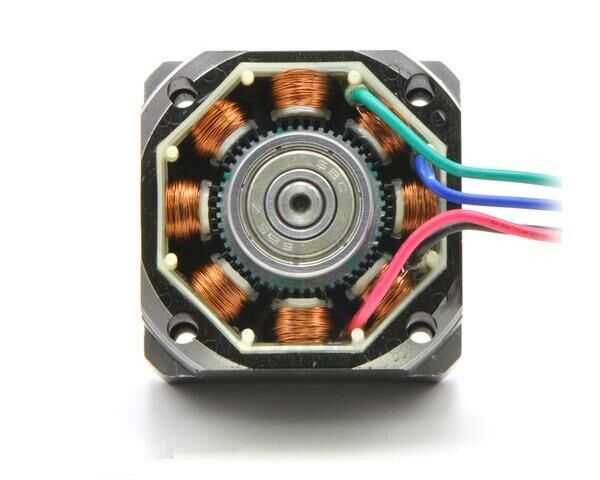

SY35ST36-1004A hybrid bipolar stepper motor has 1.8° step angle (200 step / revolution). Each phase draws 1A at 2.7 V, allowing a holding torque of 1.4 kg-cm. The motor has four color-coded wires terminated with bare ends: black and green connect to a coil; red and blue are connected together. The motor can be controlled with a pair of suitable H-bridges (one for each coil), but bipolar stepper motor driver.

Technical Specifications

  • Dimension: 35 mm square × 36 mm, not including spindle (NEMA 14)
  • Weight: 180 g
  • Spindle diameter: 5 mm "D”
  • Steps per revolution: 200
  • Current rating: 1A per coil
  • Voltage rating: 2.7 V
  • Resistance: 2.7 Ω per coil
  • Holding torque: 1.4 kg-cm
  • Inductance: 4.3 mH per coil
  • Output shaft supported by two ball bearings

Dimensions

The diagram below shows the stepper motor dimensions in mm. Its length is 36 mm. The output D-shaft has a length of 21 mm and a diameter of 5 mm, with a flattened cross section of 0.5 mm. This shaft is Can be used with 5mm Motor Mounting Bracket.

NEMA 14 Bipolar, 200 Steps, 35×36mm, 2.7V Stepper Motor - PL-1209

Stepper Motor Applications

Stepper motors are often used in a variety of applications where precise position control is desired and the cost or complexity of a feedback control system is not warranted. A few applications where stepper motors are often found:
  • Printers
  • CNC machines
  • 3D printer / prototyping machines
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard disks

Weight(Kg)
0.1
