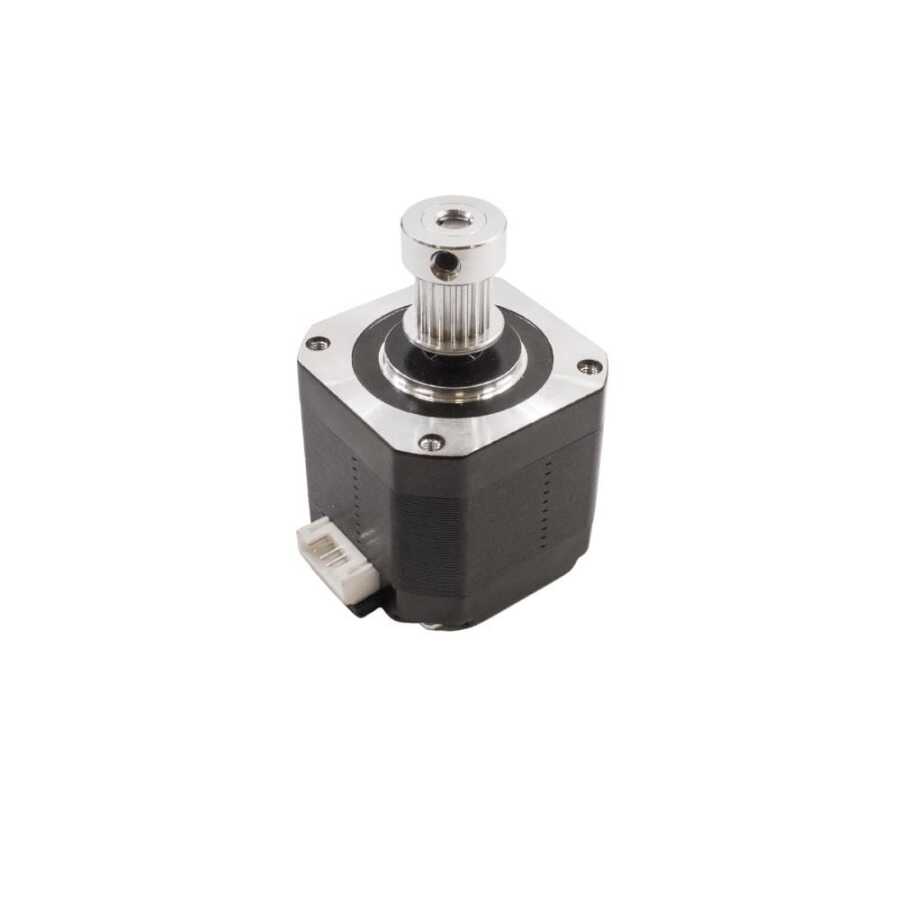

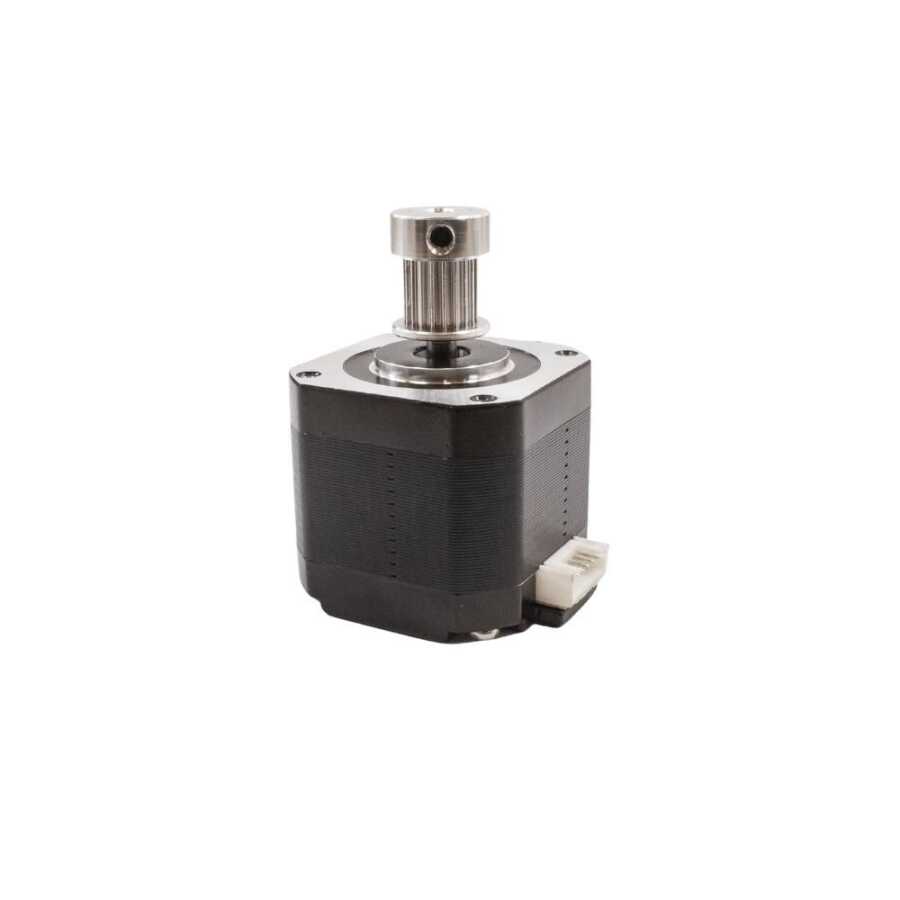

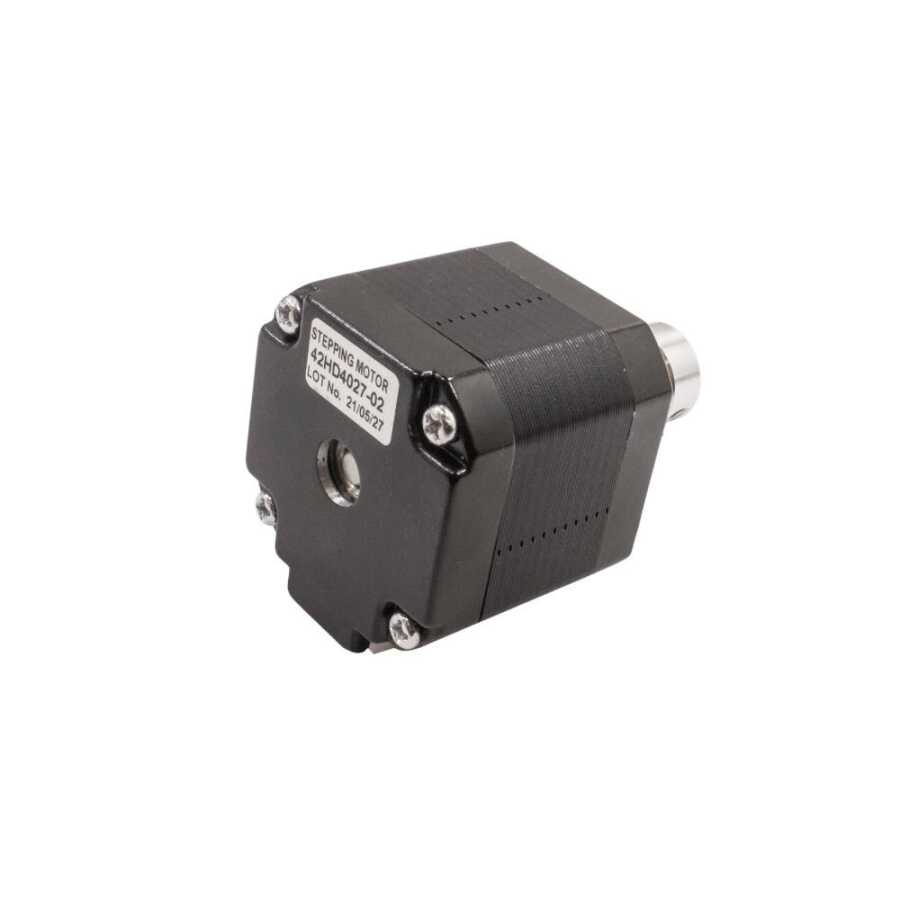

Nema 17 Stepper Motor 42HD4027-02



You can use it in your 3D Printer, CNC, laser engraving machine, 3D, monitor equipment, medical/textile/packaging machines and robotics projects. It is a Nema 17 stepper motor with long shaft.



Connection cable is not included.



• Model: 42HD4027-02
• Spindle length: 22mm (including pulley)
• Spindle diameter: 5mm
• Pulley: 16mm GT2 Pulley
• Pitch angle: 1.8°
• Number of phases: 2
• Holding torque: 400mN.m
• Rated voltage: 3.3V
• Rated current: 1.5A
• Inductance per phase: 3.8 mH ± 20%
• Resistance per phase:2.2Ω ± 10%
• Cable connection port: 6 pin female PH 2.0
• Dimension: 42x42x39mm
• Weight: 273gr
