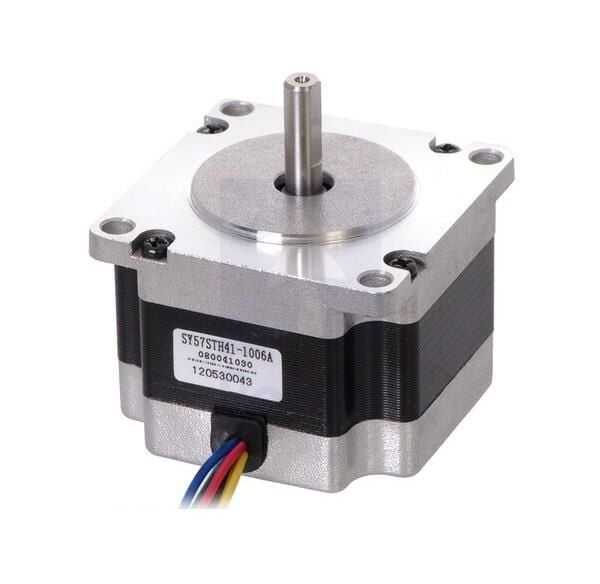

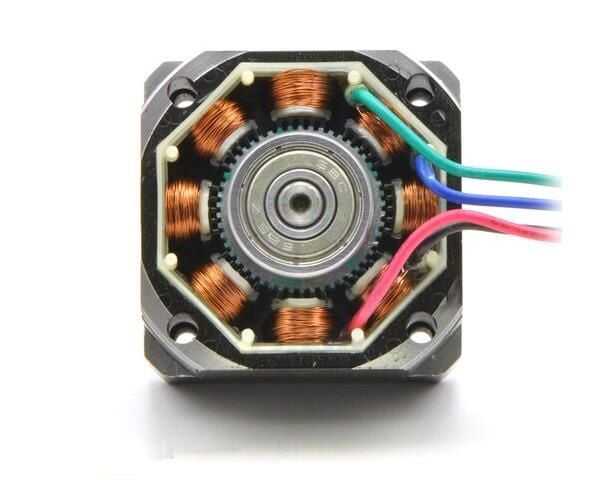

NEMA 23 Unipolar/Bipolar, 200 Steps, 57×41mm, 5.7V Stepper Motor - PL-1476


SY57STH41-1006A hybrid stepper motor unipolar or bipolar stepper motor and has a 1.8° step angle (200 steps / revolution). Each phase draws 1A at 5.7V, allowing a holding torque of 4 kg-cm. The motor has six color-coded wires that allow it to be controlled by both unipolar and bipolar stepper motor drivers. When used with a unipolar stepper motor driver, all six leads are used. When used with a bipolar stepper motor driver, the midrange yellow and white wires can be disconnected (the red-blue pair provides access to one coil and the black-green pair provides access to the other coil). We recommend using bipolar stepper motor driver .


Specifications

  • Dimension: 56.4 mm square × 41 mm, not including shaft (NEMA 23)
  • Weight: 450g
  • Shaft diameter: 6.35 mm "D”
  • Steps per revolution: 200
  • Current rating: 1A per coil
  • Voltage rating: 5.7V
  • Resistance: 5.7 Ω per coil
  • Holding torque: 4 kg-cm
  • Inductance: 5.4 mH per coil
  • Output shaft supported by two ball bearings


Dimensions

The diagram below shows the stepper motor dimensions in mm Length is 41 mm. The output D-shaft is 20.6 mm long and 6.35 mm in diameter, with a 0.5 mm flattened cross section will help you mount this stepper motor in your project.
NEMA 23 Unipolar/Bipolar, 200 Steps, 57×41mm, 5.7V Stepper Motor - PL-1476


Stepper Motor Applications

Stepper motors are often used in a variety of applications where precise position control is desired and the cost or complexity of a feedback control system is not warranted. A few applications where stepper motors are often found:
  • Printers
  • CNC machines
  • 3D printer / prototyping machines
  • Laser cutters
  • Pick and place machines
  • Linear actuators
  • Hard disks
