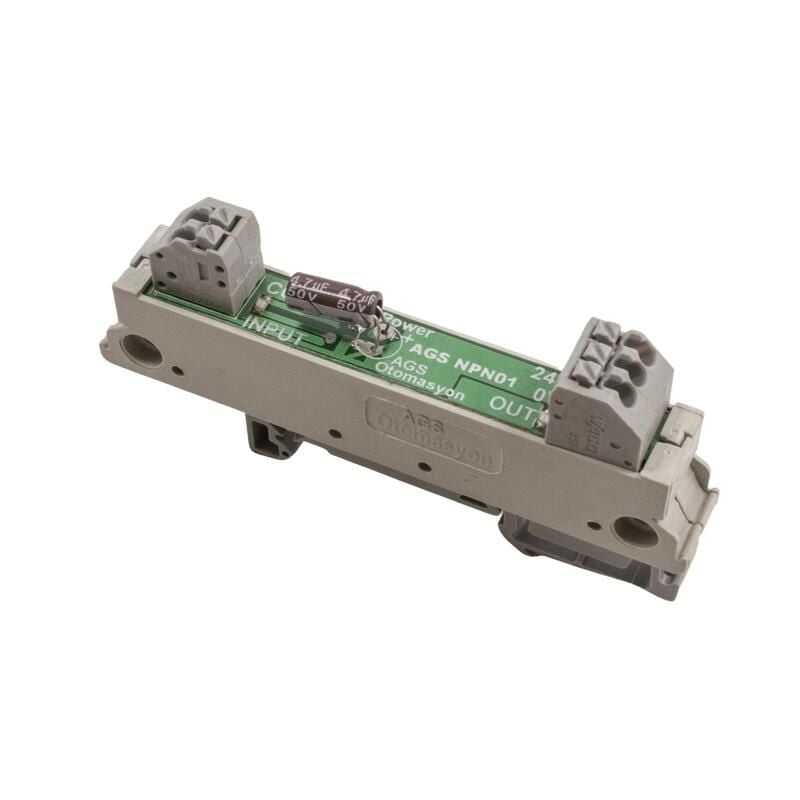

NPN-01 5A Single Channel DC NPN Relay Module - Rail Mounted
NPN-01 5A Single Channel DC NPN Relay Module - Rail Mounted. It is a domestic circuit board produced for use with PLCs.
Features:
- Does not arc
- Long on-off life
- Optocoupler isolation
- Inputs compatible with PLCs with NPN and PNP outputs
- Suitable for PWM applications
- Green LED on inputs
- Red LED at the outputs
- Can be used as high current and PWM dimmer for LED lighting
- Hydraulic valves, pneumatic valves, DC contactors, DC motors, DC fans and similar inductive devices Ideal for loads and reactive loads

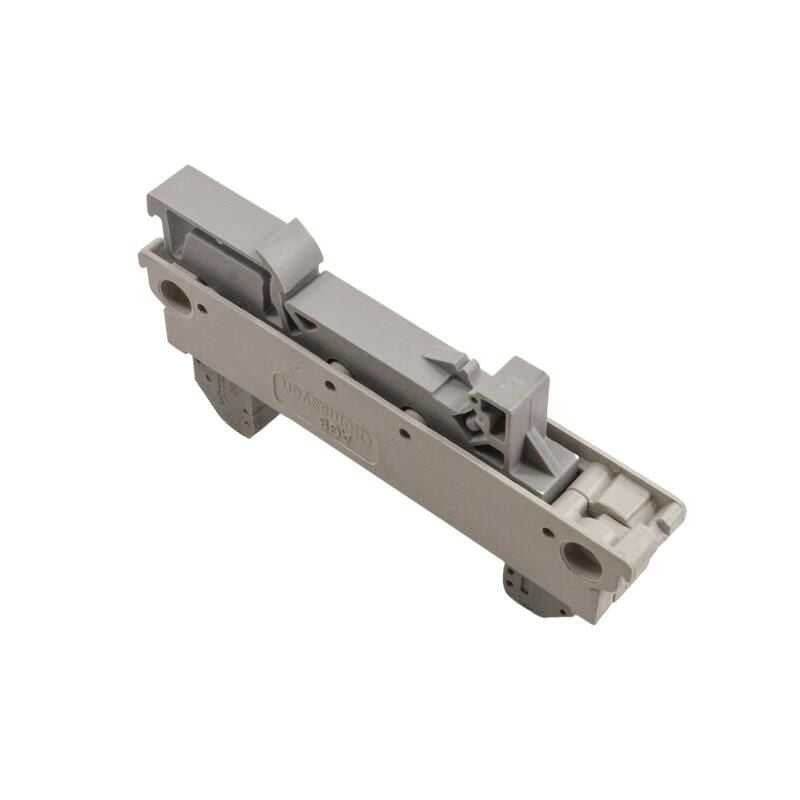

- W automatic rail mounting, Convenient design, advantage in assembly labor
- No to the problem of transistor heating (The power consumed on it is 35 times lower than the classical transistor)
- Dimensions: Length: 85mm, Width: 13mm, Depth: 40mm
Electrical Specifications:
- Operating Voltage (on): 5V>
- Operating Voltage (off): 5V<
- input current range: 7-8mA
- Max. Trigger Frequency: 10 KHz
- Output Voltage Range: 12-50V
- Max. Current: 5A
- Max. On - Off Time: 150ns
Connection Diagram:
.png)
