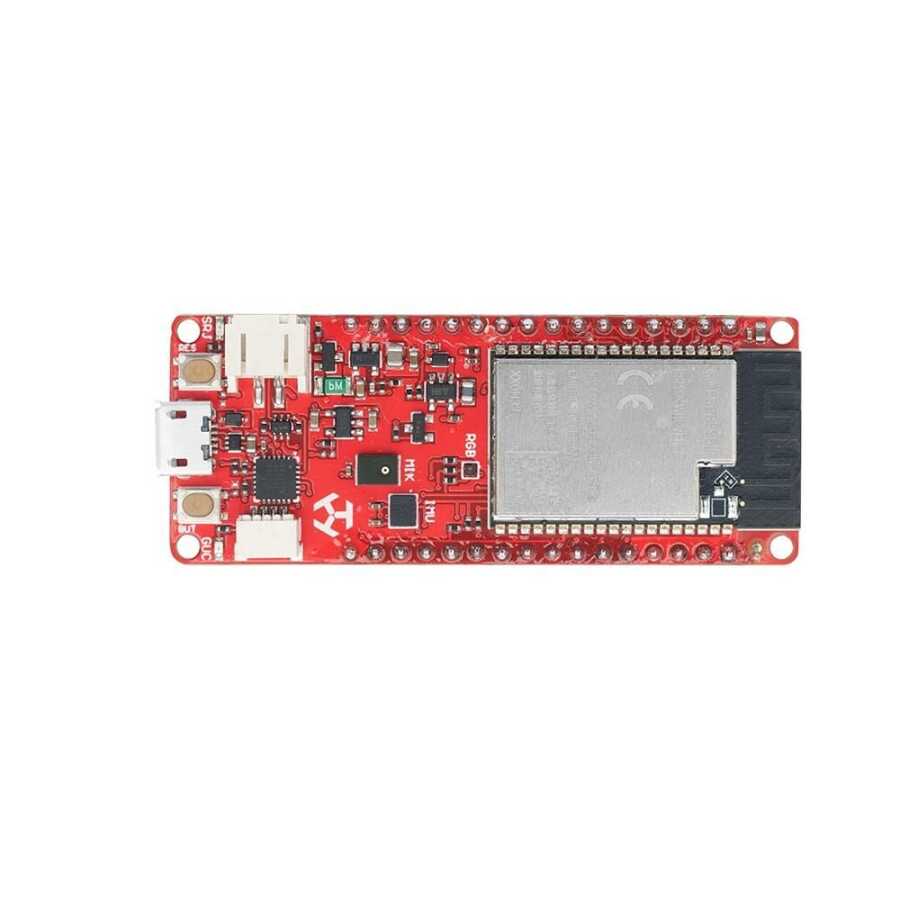

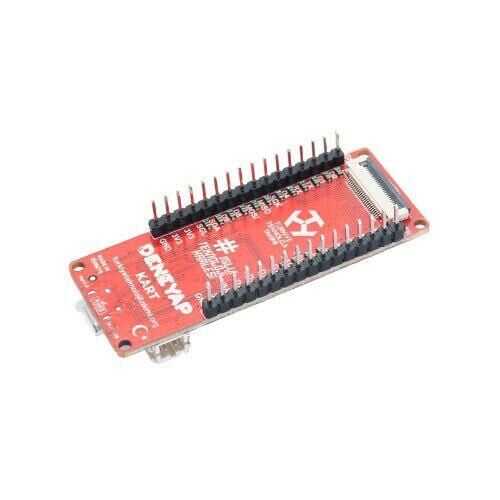

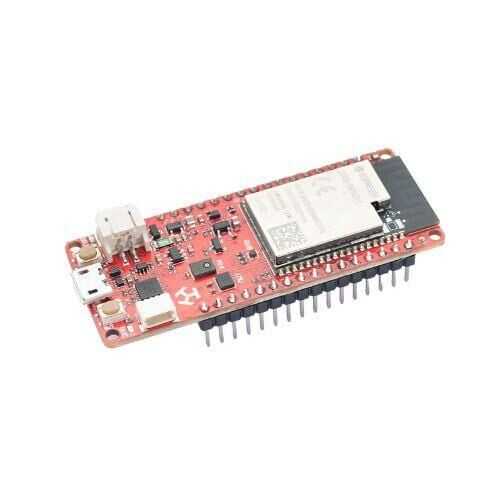

Deneyap Electronic Development Card
Deneyap Electronic Development Card. Versatile and powerful electronic development card made by Deneyap company, using the original ESP32-WROVER-E module. It has been developed. Thanks to its built-in Wi-Fi and Bluetooth communication features, it will enable you to prepare internet of things and cloud-based projects.
You can exchange data between your system and your cloud-based application by using the Wi-Fi communication feature. You can establish a closed-loop wireless communication network by using Deneyap Kart as a server.
Deneyap Kart has an internal high-sensitivity LSM6DSM sensor. With this sensor, you can measure 3-axis acceleration and 3-axis rotation and monitor the temperature of your system. It allows you to perform speech and voice recognition applications.
It has a rich connection interface such as UART, I2C, SPI, I2S, Ethernet, SDIO, Capacitive Sensor. Additionally, to provide you with flexibility, some of these connection interfaces can be used from any pin you want according to your needs.
Features
- 240 MHz Dual Core Tensilica Xtensa 32 -bit LX6 Microprocessor
- 520 KB SRAM
- 128 KB ROM
- 8 MB SPI PSRAM
- 4 MB SPI Flash
- 2.4 GHz Wi-Fi – 802.11b/g/n
- Bluetooth v4.2 BR/EDR and BLE
- Internal PCB Antenna
- MEMS 3 -Axis Gyroscope and 3-Axis Accelerometer (ST LSM6DSM)
- MEMS PDM Microphone (ST MP34DT05-A)
- General Purpose Button (Pin: GPKEY)
- 3.3V Operating Voltage
- 3.3V and 5V Output Voltage
- 3.3 – 5.5V Input Voltage
- Dimension: 63.50mm x 25.4mm x 15.70mm
Documents
Deneyap User Manual
