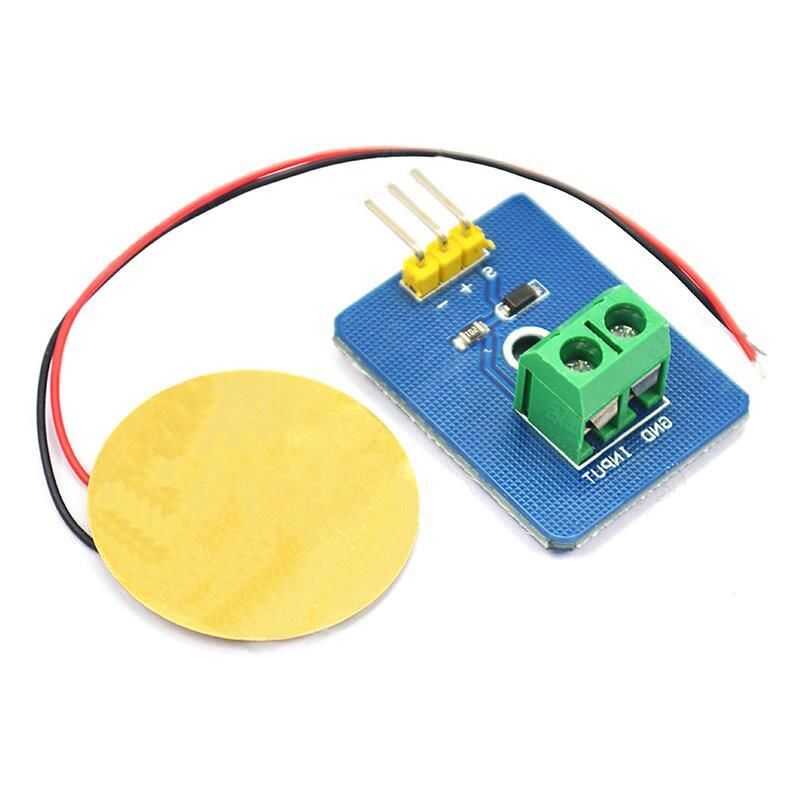

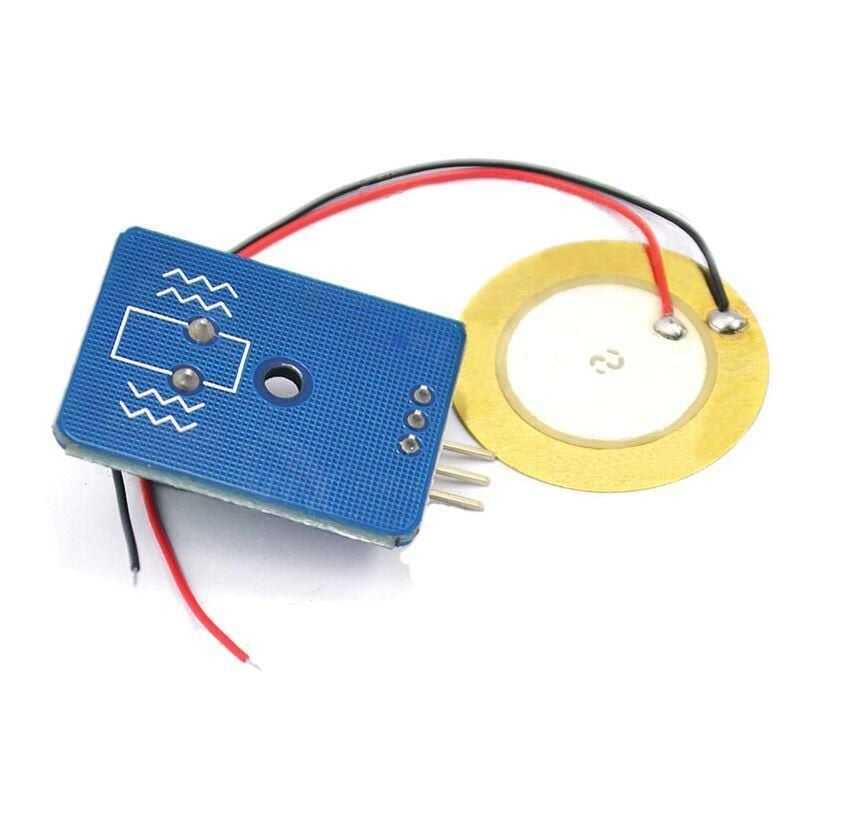

Piezoelectric Ceramic Vibration Sensor

Simulated piezoelectric ceramic vibration sensor is the reverse process of vibration of the electrical signal generated by piezoelectric ceramics. Piezoelectric ceramic film vibration, combined with the Arduino sensor expansion board v5.0 for Arduino, will generate electrical signal. The analog port can detect a weak vibration signal, which can realize the interaction with shock, such as electronic drum interactive works.

Technical Specifications

• Operating voltage: 3.3V or 5V
• Operating current: <1mA
• Temperature range: - 10 ~ 70 degrees Celsius
• Interface type: analog signal output
• Size: 23mm X 30mm
• Pinout: S signal output, + power (VCC), ground - (GND )
• Input: positive electrode of piezoelectric ceramic plate
• Gnd: Negative electrode of piezoelectric ceramic
