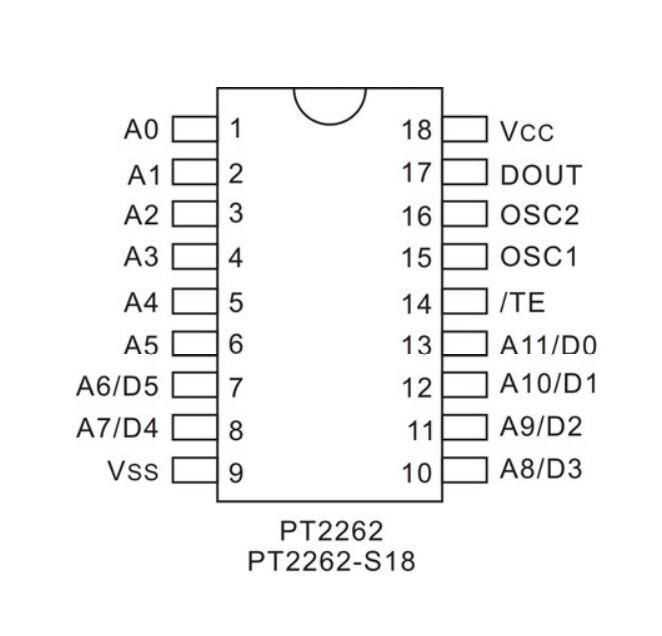

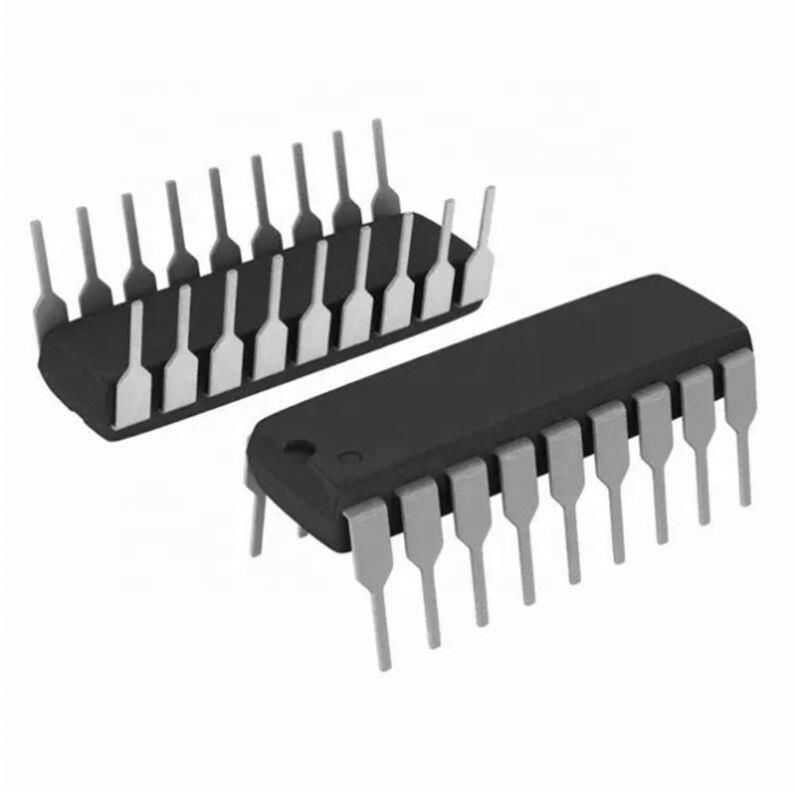

PT2262 DIP-18 Encoder Integrated
PT2262 is a remote control encoder paired with PT2272 using CMOS Technology. It encodes data and address pins into a serial coded waveform suitable for RF or IR modulation. The PT2262 has a maximum of 12-bit three-state address pins providing up to 531,441 (or 312) address codes; thus, greatly reducing any code collisions and unauthorized code scanning possibilities.
Uses
*Vehicle Security System
*Garage Gate Controller
*Remote Control Fan
*Home Security/Automation System
* Remote Control Toys
*Remote Control for Industrial Use
| Series |
PT2262 |
| Supply Voltage |
4-15V |
| Power distribution |
300mW |
| Number of Data Pins |
6 Pin |
| Tri-State Code Address Pins |
12
|
| Number of Pins |
18
|
| Package Type |
DIP-18 |
