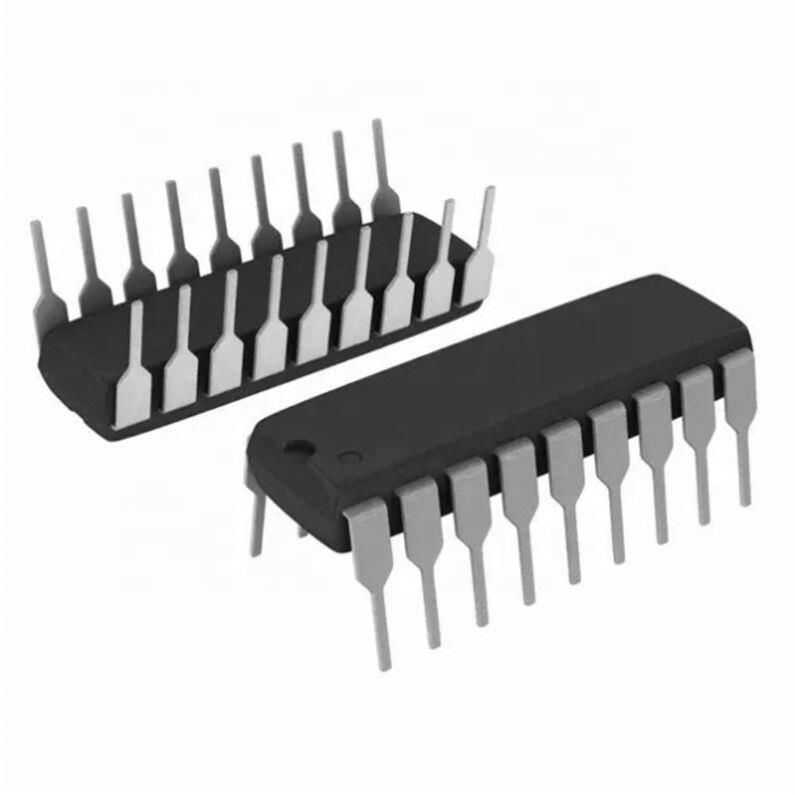

PT2272 L4 DIP-18 Decoder IC
PT2272 is a remote control decoder paired with PT2262 using CMOS Technology. It has 12-bit tri-state address pins providing a maximum of 531,441 (or 312) address codes; thus greatly reducing any code collisions and unauthorized code scanning possibilities. The PT2272 is available in a variety of options to suit every application need: variable number of data output pins, latching or momentary output type.
Uses
*Vehicle Security System
*Garage Door Controller
*Remote Control Fan
*Home Security/Automation System
*Remote Control Toys
*Remote Control for Industrial Use
| Series |
PT2272 |
| Supply Voltage |
4-15V |
| Power distribution |
300mW |
| Number of Data Pins |
6 |
| Tri-State Code Address Pins |
12
|
| Number of Pins |
18
|
| Package Type |
DIP-18 |
