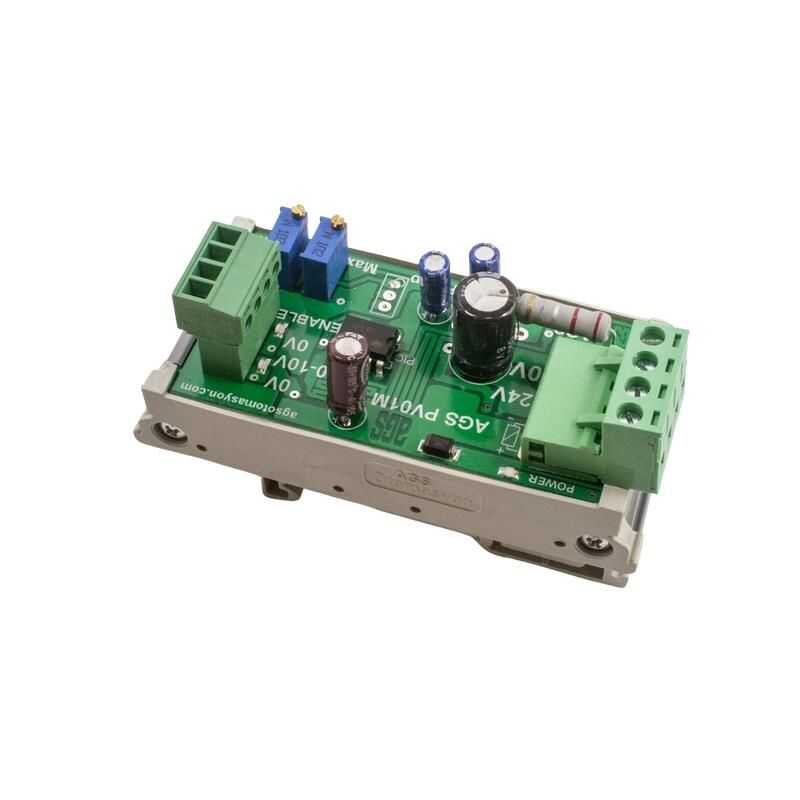

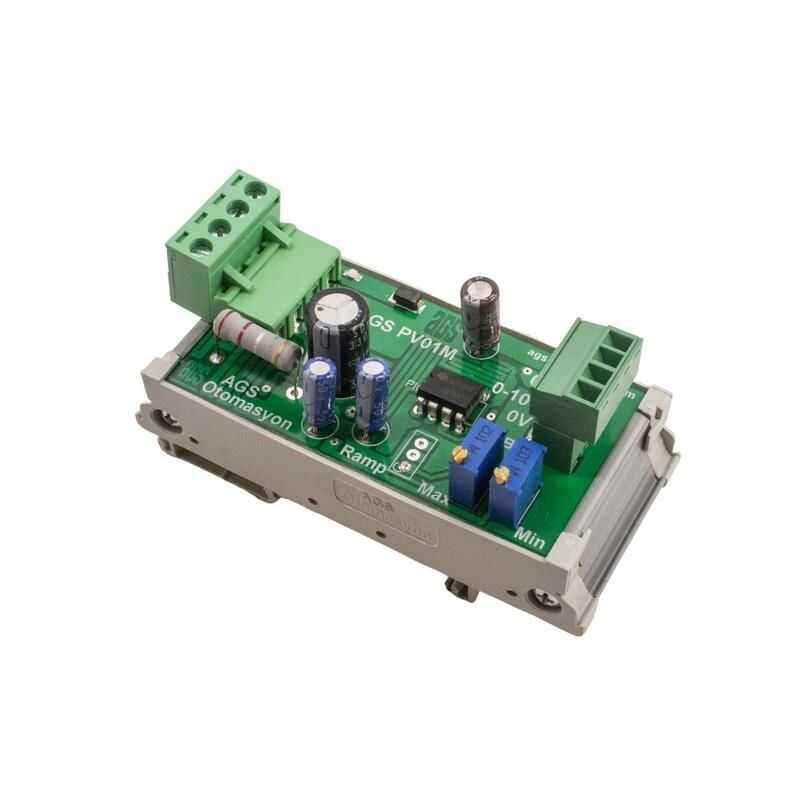

PV-01 Single Channel Proportional Valve Control Card - Rail Mounted
PV-01 Single Channel Proportional Valve Control Card - Rail Mounted. It is a domestic circuit board produced for use with PLCs.
Features:
- Single channel proportional valve control
- High Sensitivity
- Compatible with all brands of proportional valves
- 12V & 28V Wide operating range 0-10V input
- Max 50A, continuous 3A draw
- LED on analog inputs

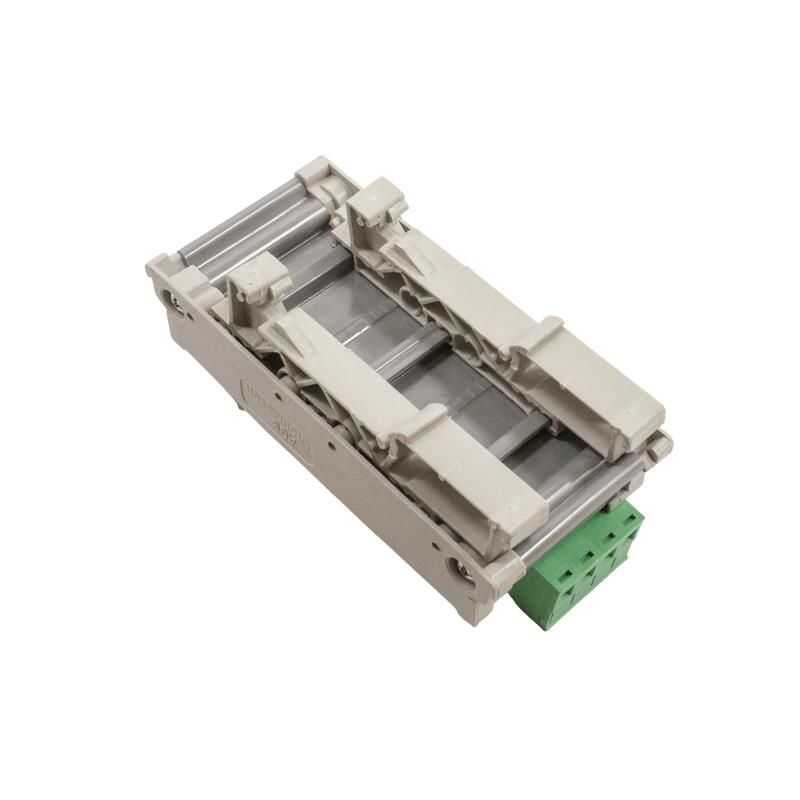

- W automat rail mounting, Convenient design, advantage in assembly labor
- Very easily adjustable offset, gain and ramp adjustment trimpots.
- Dimensions: Length: 87mm, Width: 39mm, Depth: 43mm
Electrical Specifications:
- Operating Voltage (on ): 0V>
- Operating Voltage (off): 0.1V<
- Operating Range: 0V-10V
- Control Terminals: 24V
- input current range: 7-8mA
- Output Voltage Range: 12V-28V
- Max. Current: 3A
- Max. Current Overflow (10ms): 50A
- On-Off Time: 150ns
Connection Diagram:
.png)
