PWM TO DC 2 Channel PWM-DC Conversion - Rail Mounted

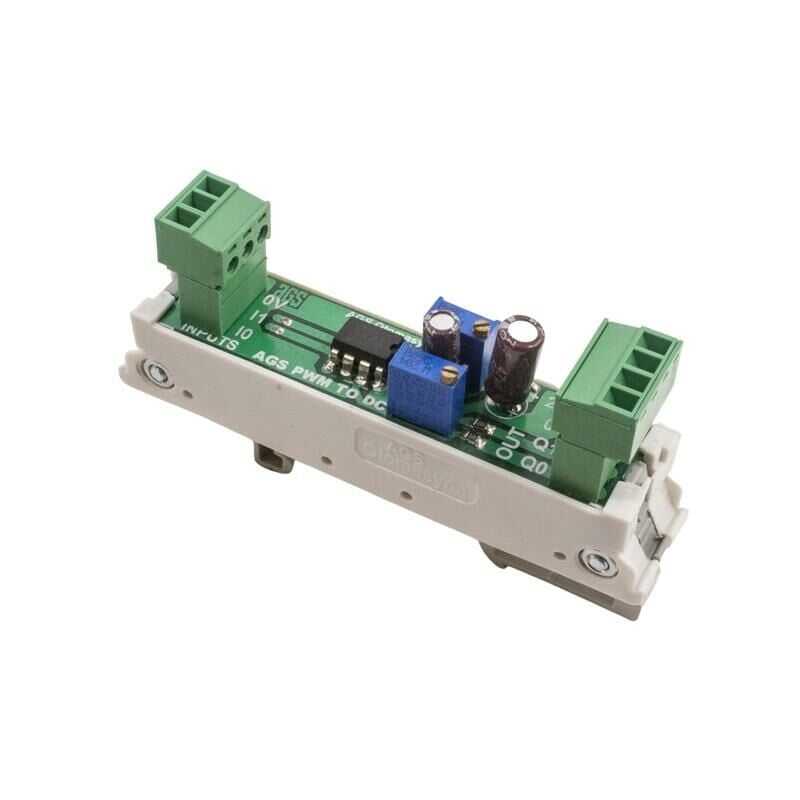

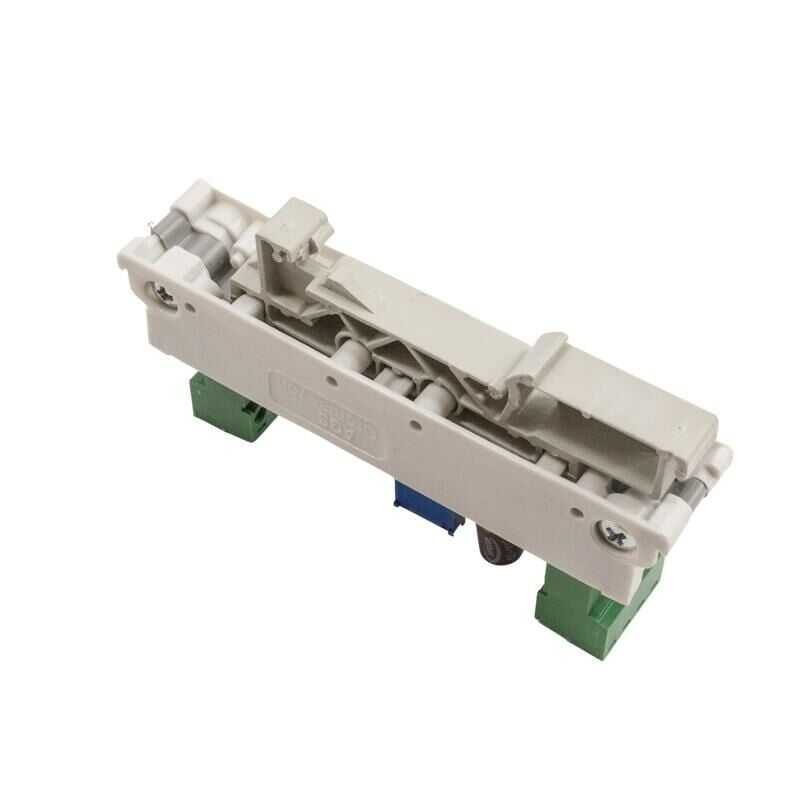

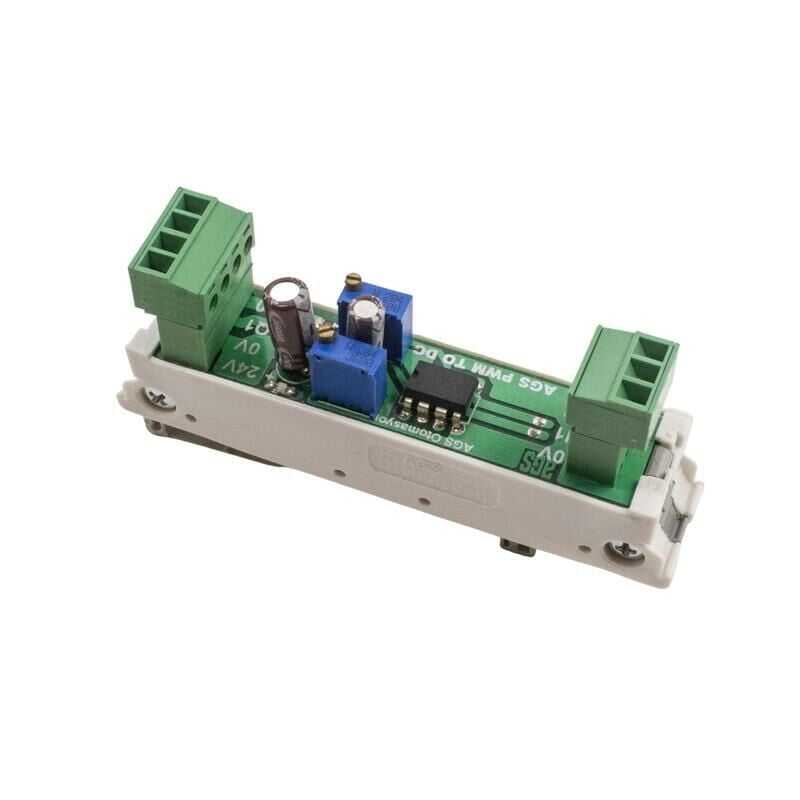

PWM TO DC 2 Channel PWM-DC Conversion - Rail Mounted. It is a domestic circuit board produced for use with PLCs.
Features:
- 2 Channel PWM-DC converter
- 24V DC Supply (12V DC-35V DC Working Range)
- Possibility of transferring the input signal to the output at the desired rate thanks to trimpots
- Possibility of converting the incoming PWM to DC without trimpots
- High precision
- Dimensions: Length: 85mm, Width: 18mm, Depth: 45mm
Electrical Specifications:
- Operating Voltage (on): 0V>
- Operating Voltage (off): 0.1V<
- input current range: 7- 8mA
- Operating Range (Supply): 12V-35V
- Max. Trigger Frequency: 10 KHz
- Output Voltage Range: 0V-11V
- Max. Current: 100 mA
Connection Diagram:
.png)
