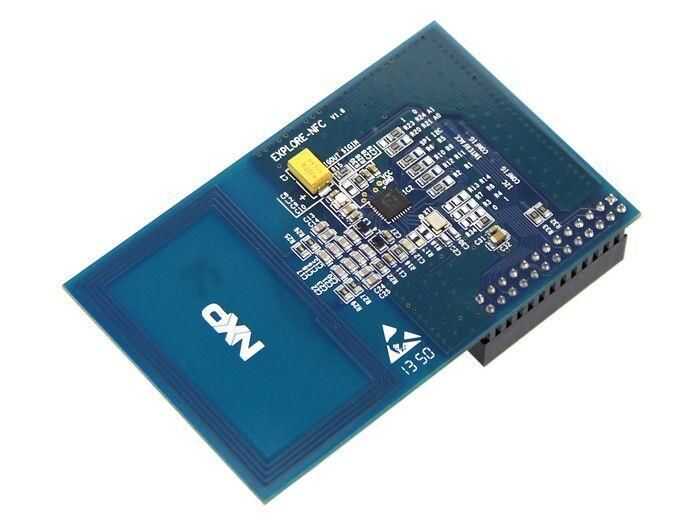

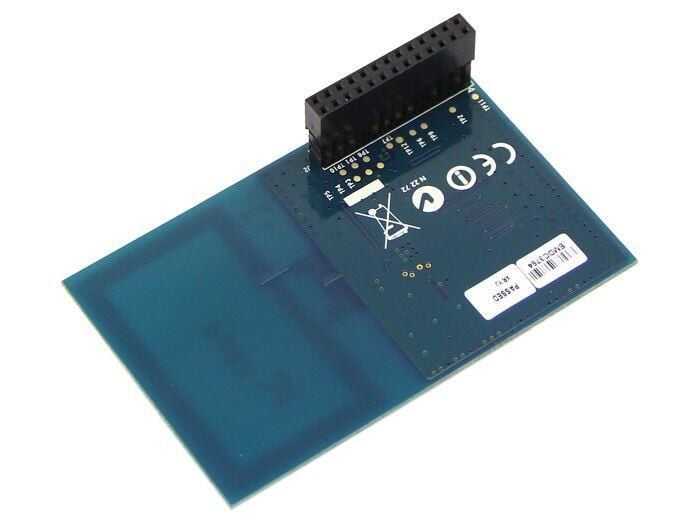

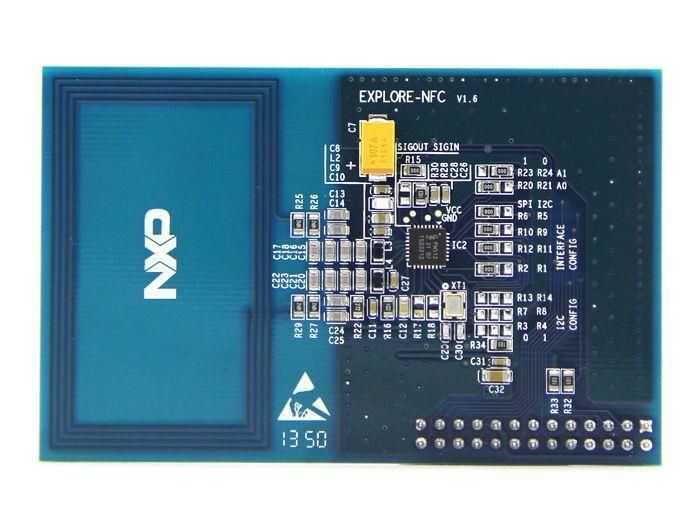

Raspberry Pi NFC Module

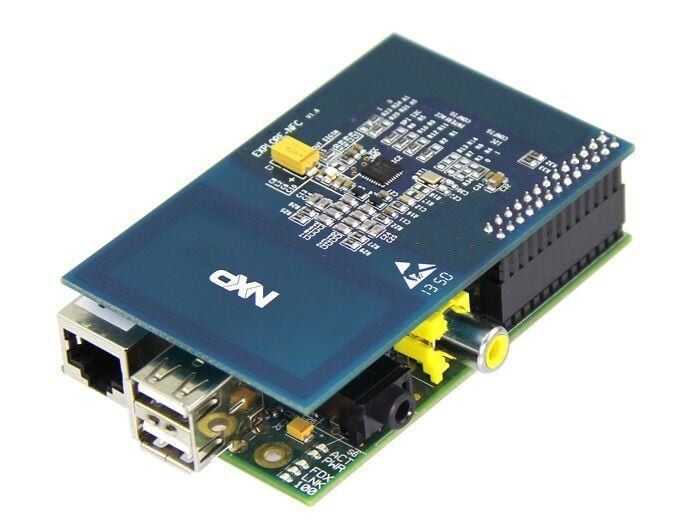

EXPLORE-NFC is a high performance and NFC compatible expansion card. This module, specially designed for Raspberry Pi, is compatible with Raspberry 3/2/B+/A+/B models.
The card is designed and manufactured by NXP company and is based on NXP PN512.
Read/write mode supports P2P modes. In addition to the high-performance internal NFC antenna on the card, it offers comfortable use with the SPI interface.
Technical Specifications
- High-performance NFC compatible expansion card
- Based on NXP PN512.
- Integrated RF detector
- Integrated Data mode detector
- ISO/IEC 14443 A/MIFARE supported
- ISO/IEC 14443 B Read/Write mode
- Up to 50mm operating distance in Read/Write mode
- Up to 50mm operating distance in NFCIP-1 mode
- FIFO buffer 64bytes transmit and receive
- Flexible interrupt modes
- Restart with low power function
- Flexible interface selection (SPI or I2C). The software currently only supports SPI.
- High performance integrated antenna
