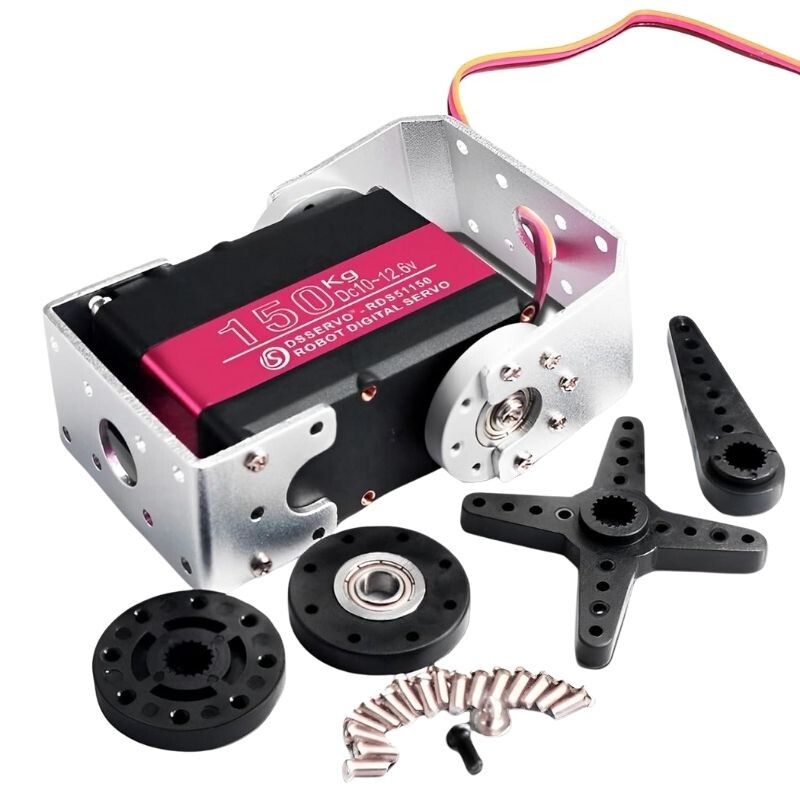

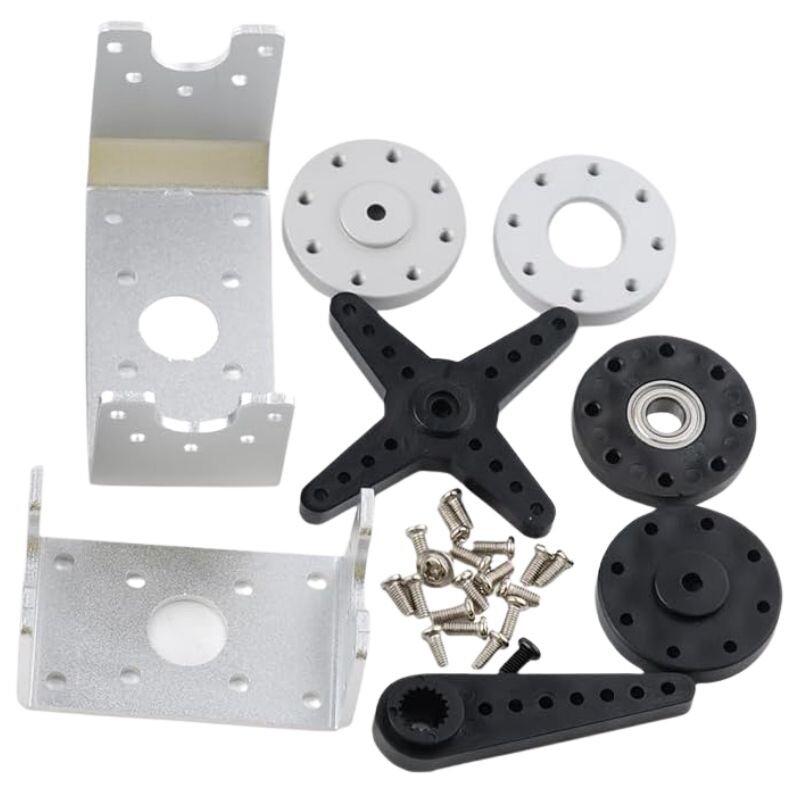

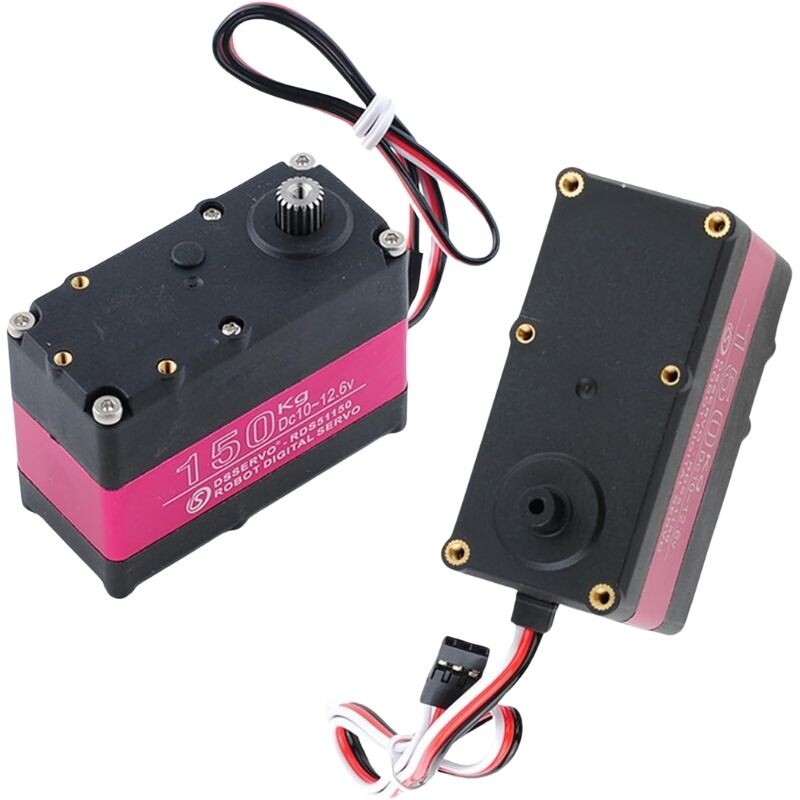

RDS51150 150KG Digital Servo Motor 180° - U Servo Bracket Included
RDS51150 150KG Digital Servo Motor 180° - U Servo Bracket Included, It is a high torque digital servo motor. It has a 180 degree movement capacity. 150kg-cm torque value, high precision and waterproofness are the main reasons for preference. You can use it with peace of mind in various robotic and electronic projects. Internal gears are metal.
RDS51150MG Technical Specifications:
- Brand: DSSERVO
- Product Code: DS51150 150KG Digital Servo
- Working Voltage: 10-12.6 DC Volt
- Torque: 150kg.cm (10V), 165kg.cm (12V), 173kg.cm (12.6V)
- Speed: 0.24 sec / 60 ° (10V), 0.21 sec / 60 ° (12V), 0.19 sec / 60 ° (12.6v)
- PWM: 500us-2500us
- Weight: 162g
- Dimension: 65 * 30 * 48mm
Pinout
.png)
