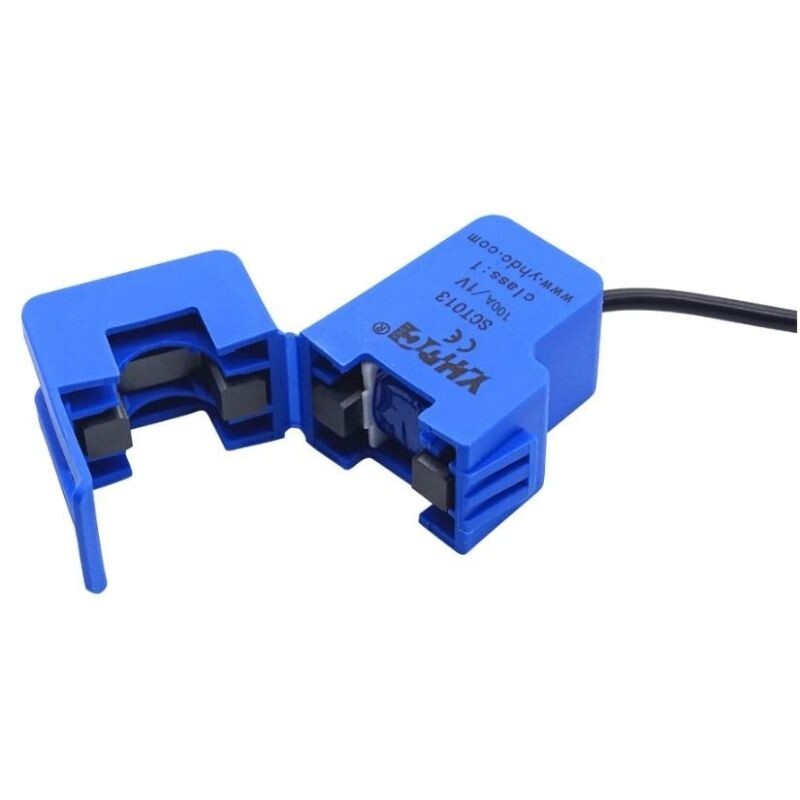

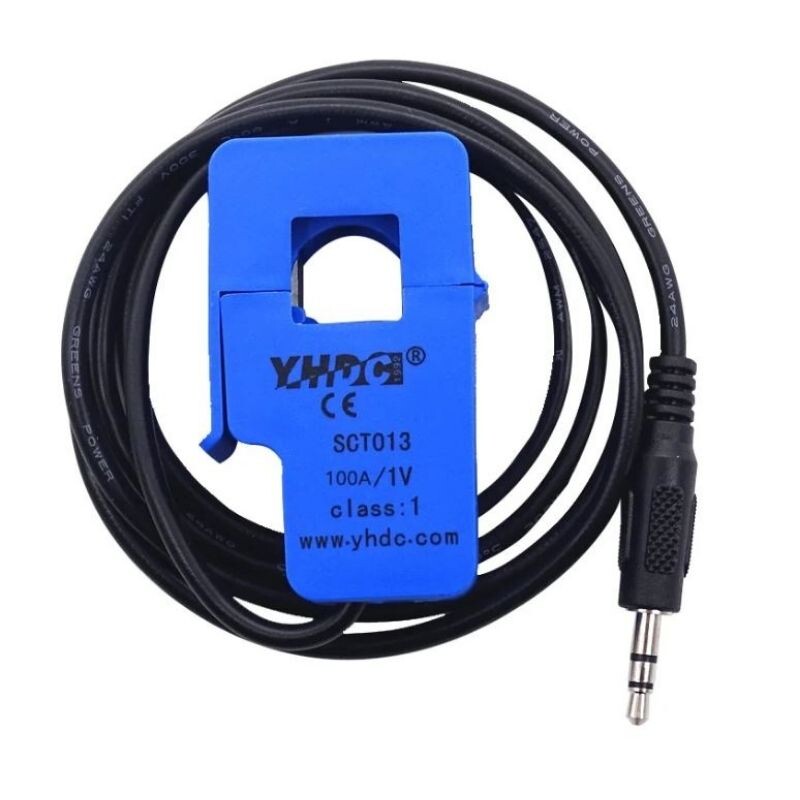

SCT-013 0-100A Current Sensor
This AC current sensor is used for measuring alternating current and can measure up to 100 A. This split core transformer is particularly suitable for DIY use and works well with Arduino and Raspberry Pi. It is preferred due to its ease of use and can be easily integrated into many systems.
This discrete device can be used to create your own energy monitor, reduce your power usage, or create an overcurrent protection device for an AC load. use the core current sensor.
Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement and overcurrent protection.
Technical Specifications
- Model: SCT-013-000
- Type: Non-invasive current transformer
- Core Material : Ferrite
- Input Current: 0 ~ 100A AC
- Output Mode: 0 ~ 50mA
- Cable Length: 1m
- Cable Input: 3.5 mm (like headphone jack)
- Spinning Ratio: 1: 1800
- Operating Voltage: 660V
- Resistance rating: class b
- Maximum Sampling Resistance: 10 Ω
- Linearity: ± 3%
- Accuracy: ± 1%
- Operating Frequency: 50-1 KHz
- Operating Temperature: -25˚C ~ 70˚C
- Dielectric Strength: 6000V AC / 1min
