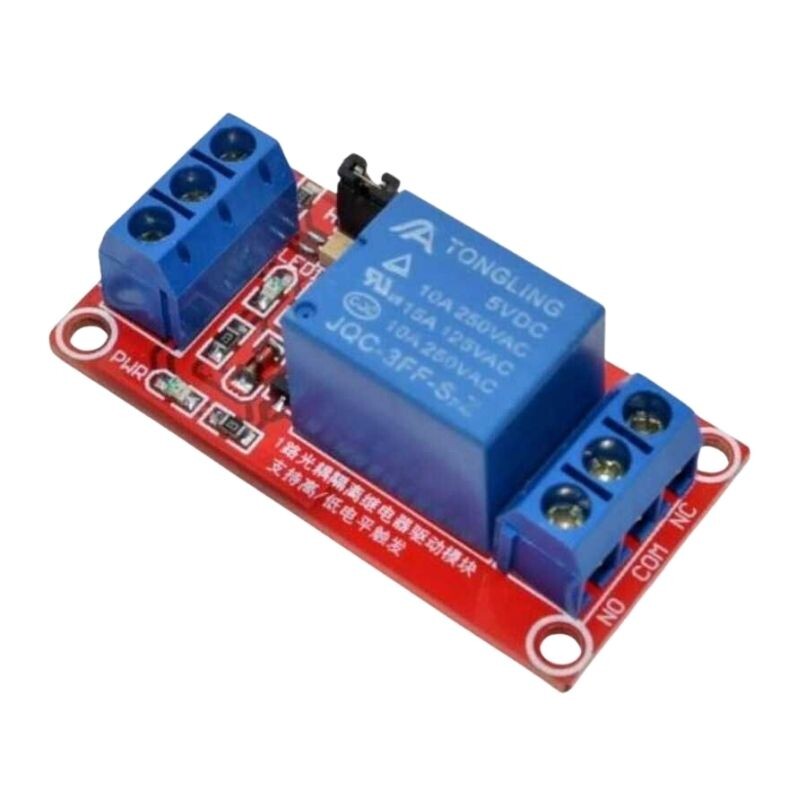

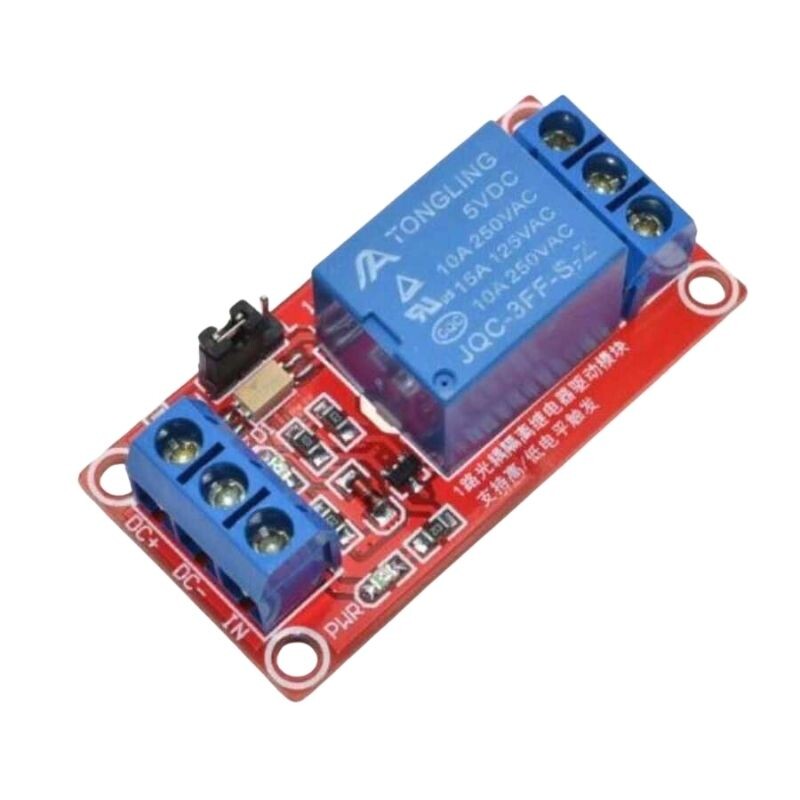

Single Channel 24V Plus/Minus Triggered Relay Module
Single Channel 24V Plus/Minus Triggered Relay Module is a h/l triggered relay module that works with 24 volts. Module If you plug the short circuit jumper on it to the H part, it can be used as positive trigger (high trigger), if you plug it to the L part, it can be used as minus trigger (low trigger).
Trigger The signal draws 20mA current. Since it can switch voltage up to 10A at 220V, this product can be used in many projects. Thanks to the NC, NO and COM terminals on it, both the operations of short circuiting when the relay is triggered or turning on the energy when the relay is triggered can be done with this module.

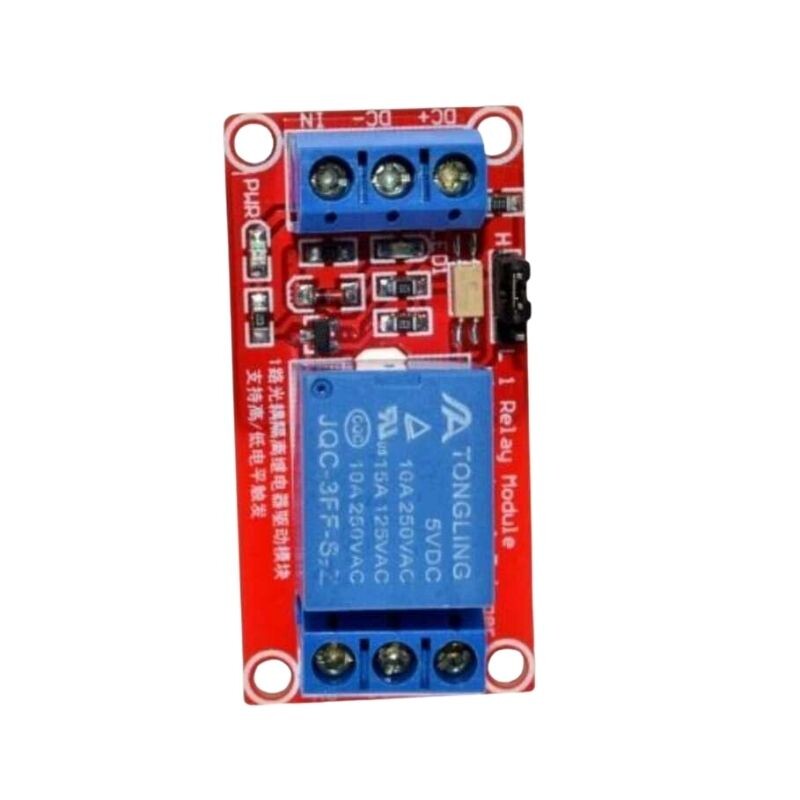

Pinout
Input
- DC+ : + of the power supply
- DC- : - of the power supply
- IN : Trigger pin of the relay module (H/L Trigger)
Output
- NO : Normally Open Contact
- COM : Common Pin
- NC : Normally Closed Contact
Features
- Supply Voltage: 24VDC
- Switching Voltage: 10A max.
- Switching Voltage: 220VAC
- High/Low Level Triggering
- Contact Resistance: 100Mohm
- Operating Temperature: -25° ~ 75°
- Dimension: 50x26x17mm
