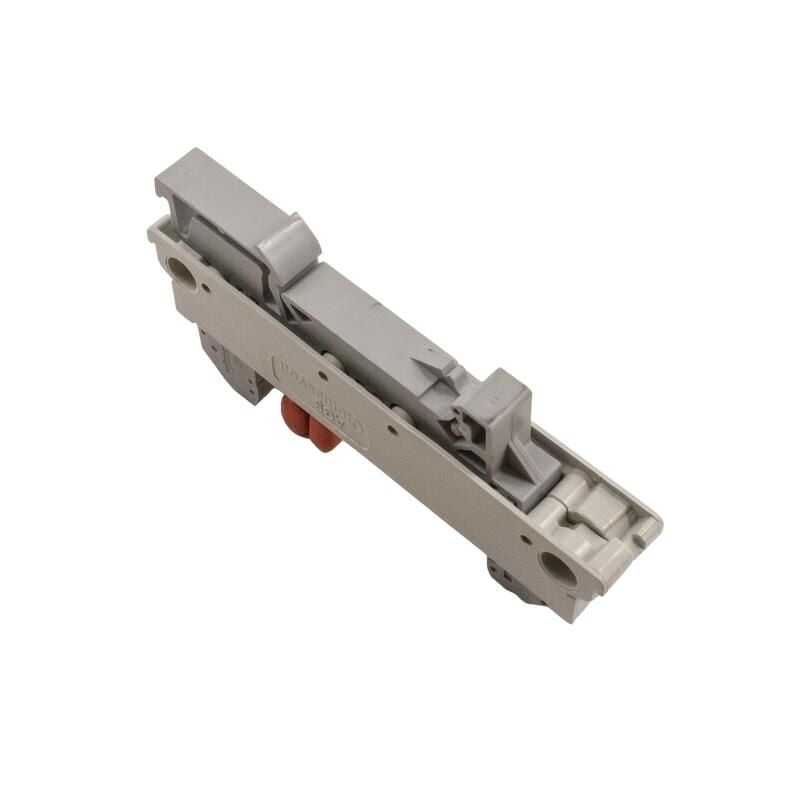

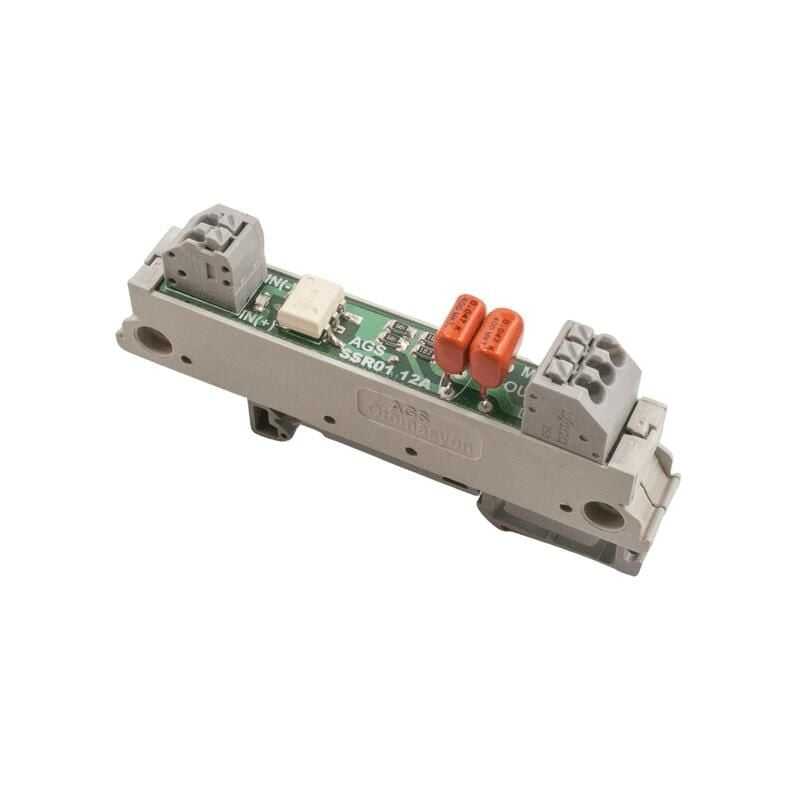

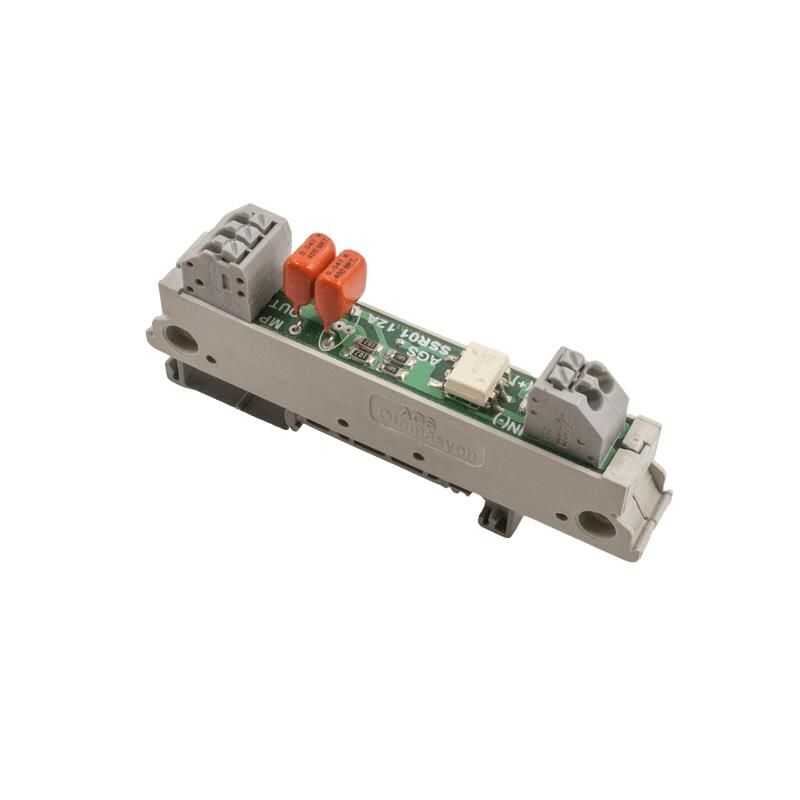

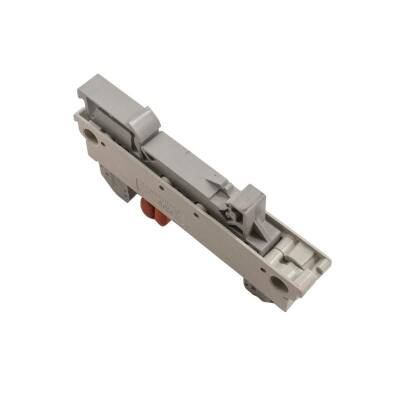

SSR-01 2A Single Channel SSR Relay Module - Rail Mounted
SSR-01 2A Single Channel SSR Relay Module - Rail Mounted. It is a domestic circuit board produced for use with PLCs.
Features:
- No arcing
- Long on-off life
- Optocoupler isolation
- Inputs compatible with PLCs with NPN and PNP outputs
- Suitable for PWM applications
- Green LED on inputs
- Ideal for hydraulic valves, pneumatic valves, AC contactors, AC motors, AC fans and similar inductive loads and reactive loads
- Suitable for PID applications
- W automatic rail assembly, Convenient design, advantage in assembly labor
- Dimensions: Length: 85mm, Width: 13mm, Depth: 41mm
Electrical Properties :
- Operating Voltage (on): 8V>
- Operating Voltage (off): 8V<
- input current range: 7-8mA
- Operating Voltage Range: 8V-32V
- Output Voltage Range: 90V-250V
- Max. Current: 2A
- Max. Current Overflow (10ms): 12A
Connection Diagram:
.png)
