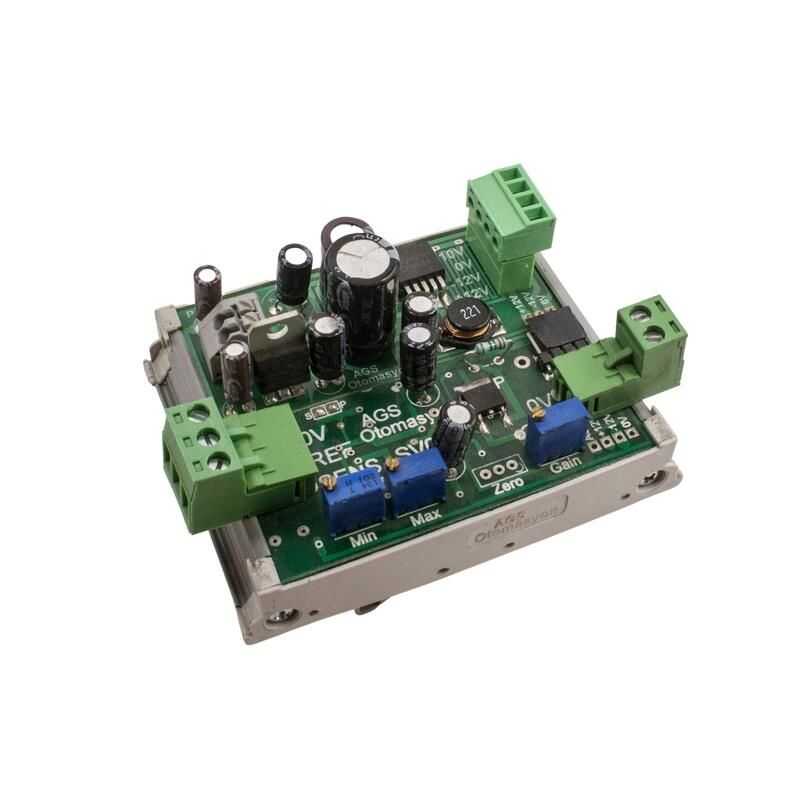

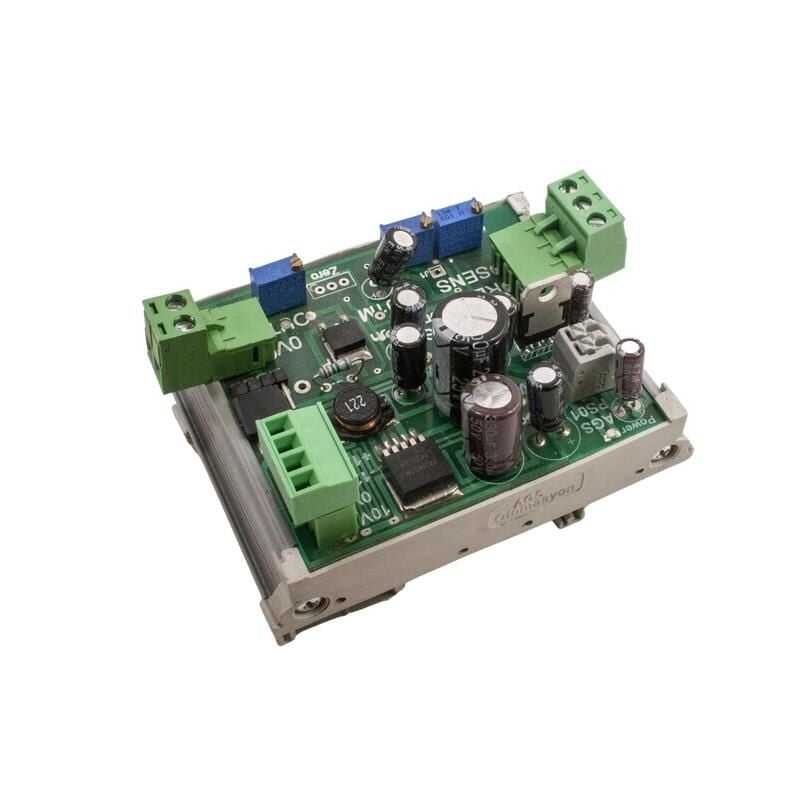

SV-01 Single Channel Servo Valve Drive - Rail Mounted
SV-01 Single Channel Servo Valve Drive - Rail Mounted. It is a domestic circuit board produced for use with PLCs.
Features:
- High Sensitivity
- Compatible with all brands of servo valves
- Ideal for Parison
- Possibility to get feedback and calibrate from any sensor, whether a ruler or pressure sensor
- 12V & 35V Wide input voltage range
- Voltage output to the outside (+10V,-12V,+12V)
- Ability to control double-layer valves with additional card
- Can read LVDT with additional card
- Analog Inputs -10 to +10V

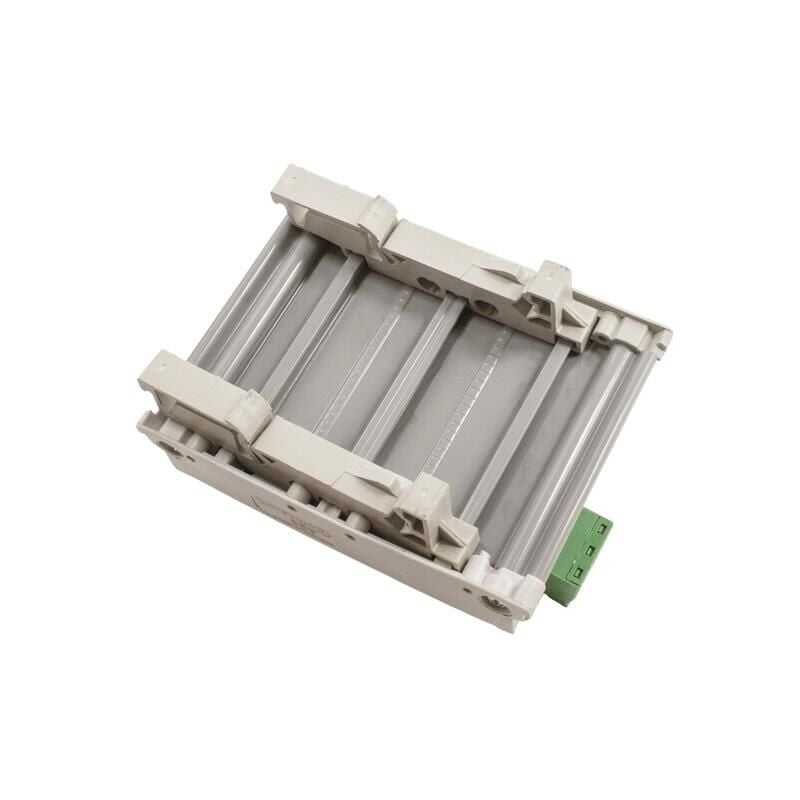

- W automatic rail mounting, Convenient design, advantage in assembly labor
- Easily adjustable Max and Min Trimpots
- Dimensions: Length: 88mm, Width: 62mm, Depth: 45mm
Electrical Specifications:
- input current range : 7-8mA
- Analog Inputs: -10V, +10V
- Supply Voltage Range: 12V-35V
- Output Voltage Range: -10V, +10V
- Max. Current: 3A
- Max. Current Overflow (10ms): 50A
Connection Diagram:
.png)
