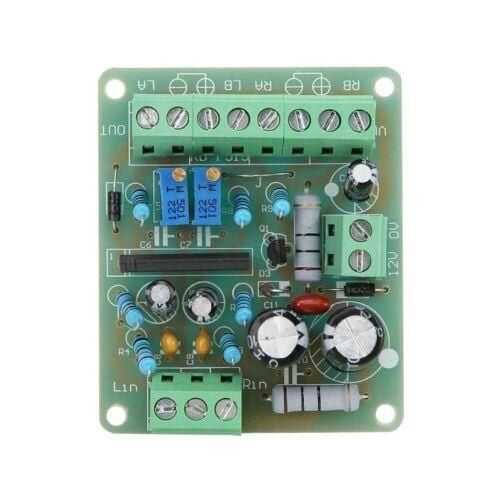

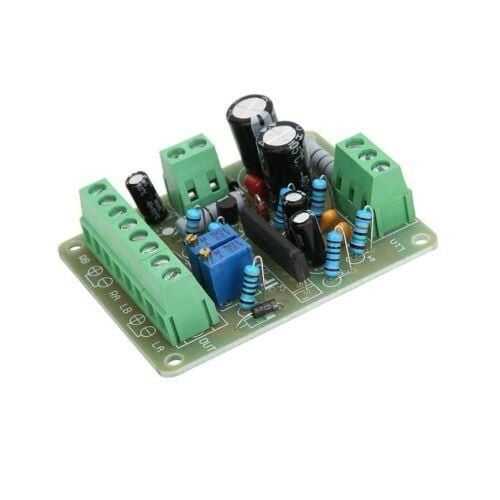

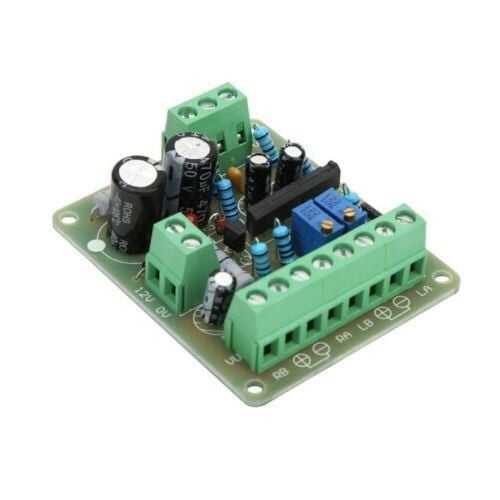

TA7318P 12V VU Meter Driver Card
TA7318P 12V VU Meter Driver Card. It is a 63x52x20mm sound level meter driver card that works with 12 volts. It is easy to use.
Constant 12V power must be supplied. The card has circuit protection for a short time, but the card will burn in the long run.
Features
- Input Sensitivity: 400Hz audio signal with 8025B Digital Multimeter range
- Supply Voltage: 12V AC
- Current : 0.12A
- Dimension: 63x52x20mm
- Vu Meter Level Measurement Sensitivity: Recommended 500UA, 630 ohm internal resistance.
Wiring Diagram
.png)
