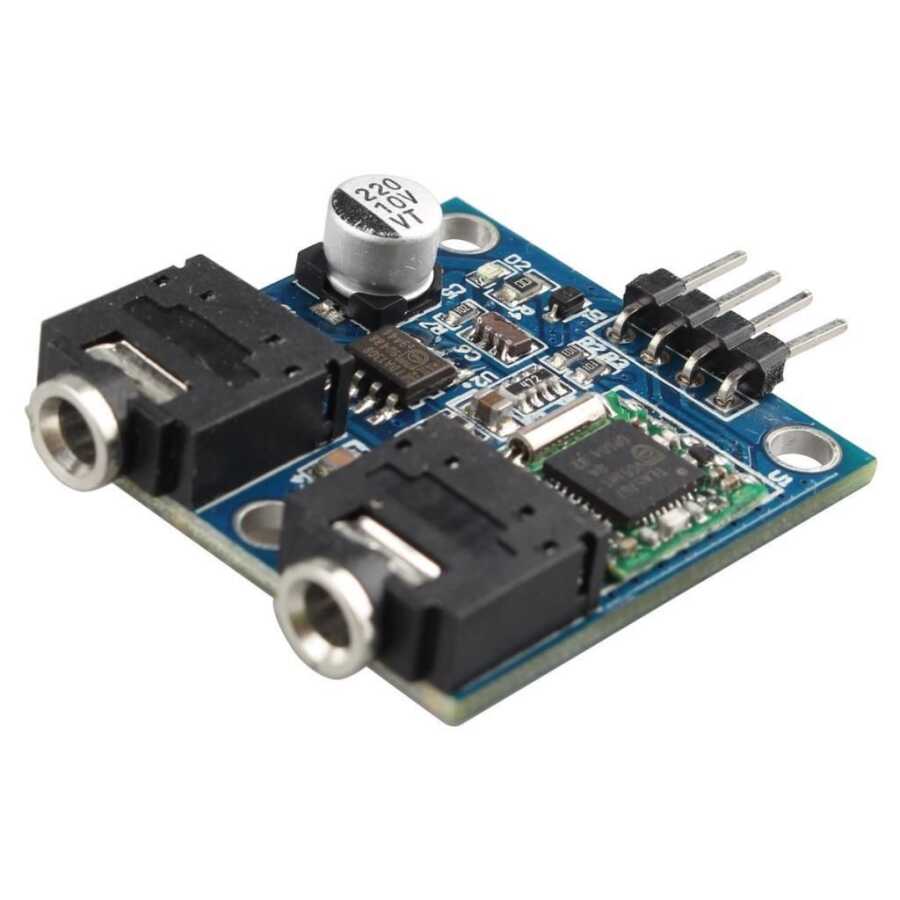

TEA5767 Arduino FM Stereo Radio Module 76-108 MHZ

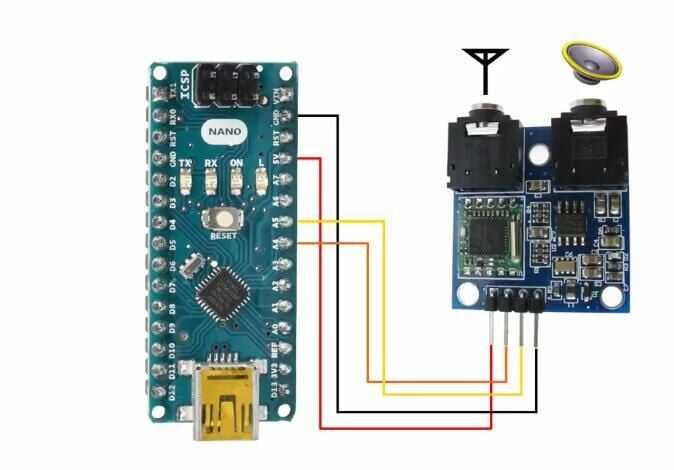

TEA5767 radio module is a circuit used with Arduino with an automatic digital tuning frequency range of 76-108MHz . It has high sensitivity, high stability, low noise. It can be used with Arduino with its 5V, GND, SDA, SLC pins.



Advantages:

• High sensitivity ( low noise RF input amplifier)
• 76-108 MHZ frequency range
• High level AGC (AGC) circuit
• Low cost hard chip tuned LC oscillator
• In-house FM IF, select IF free transfer
• Phase-locked loop tuning system
• Soft squelch, stereo noise cancellation (SNC), high cut-off when bus off (HCC)< /LI>

Technical Specifications:

• Power: 5 V
• Size: 31 X 30 MM
• With reverse power protection diode
• Board with power output filter inductor
• Multiple filter capacitor combinations
• Blue Power indicator

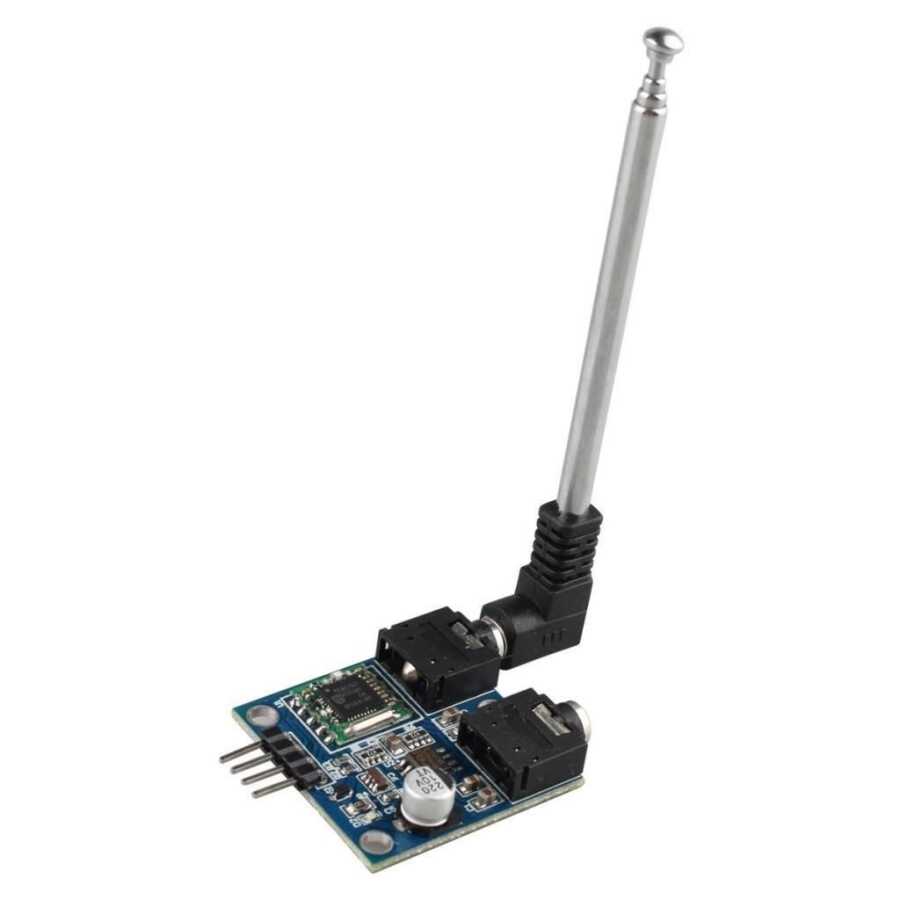

< LI>Can directly plug an antenna port
• I2C bus communication
• Philips company proprietary chip module TEA5767 FM FM
• Company board uses Philips headphone amplifier chip TDA1308 audio As amplifier
• Built-in 3.5MM audio interface can be directly connected to headphone amplifier and so on.
• Just connect the power and ground communication microcontroller, and there can be two I2C communication lines.
