Stereo 2x30W Amplifier Circuit DY-AP3015
DY-AP3015 is a stereo sound module. Allows dual channel audio output. It is an ideal amplifier circuit for making your own speaker.
Features:
- Wide operating voltage range
- Easy sound setting
- Reverse connection protection
- Short circuit protection
- Overheating protection
Technical Specifications:
- Model: DY-AP3015
- Operating Voltage: DC 8V-24V
- Operating Mode: Class D (PWM)
- Dual channel
- Output Power:
- >. Output power 18W * 2
- > at 12V 4ohm. Output power 10W * 2
- > at 12V 8ohm. Output power 15W*2 at 16V 8ohm
- >.Output power 20W*2 at 20V 8ohm
- >.Output power 30W*2 at 24V 8ohm (Extra heat need to add absorber!)
- > .4ohm at 12V
- > .8 ohm at 24V
- Operating Temperature: -40 ℃ ~ 85℃

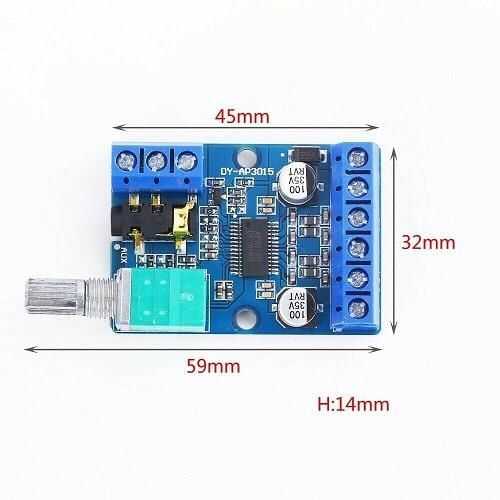

- Module Size: 59*32*14mm
