XY-P15W Bluetooth Amplifier Module Amplifier Circuit

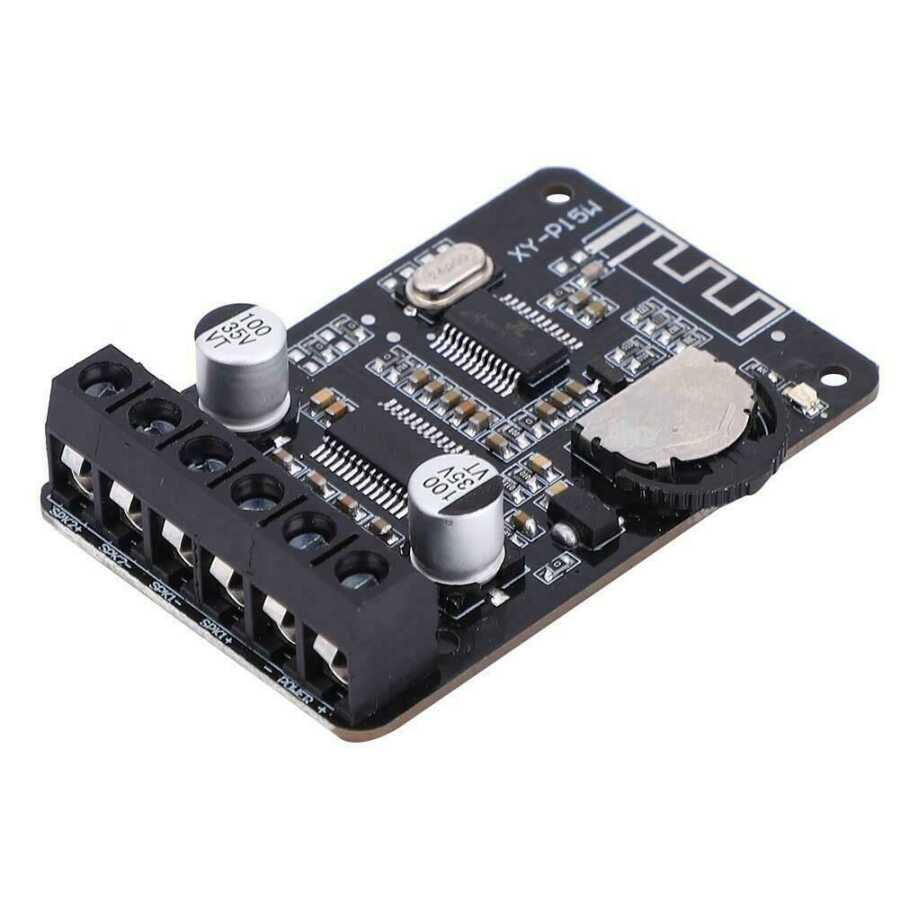

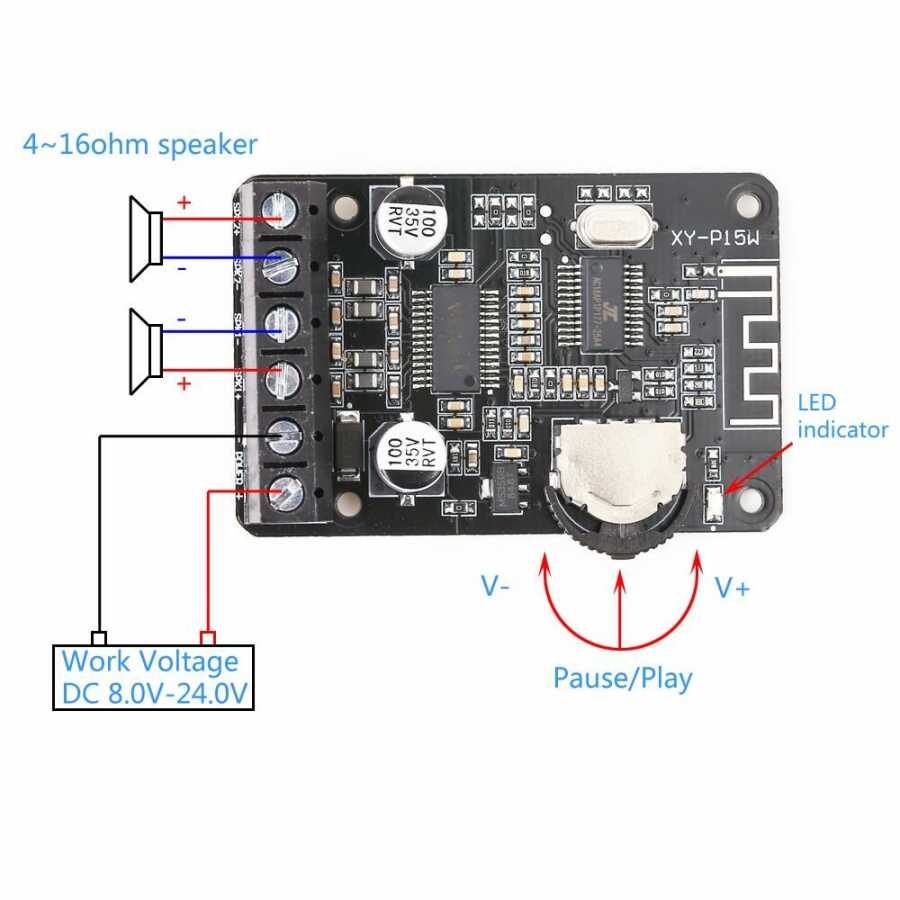

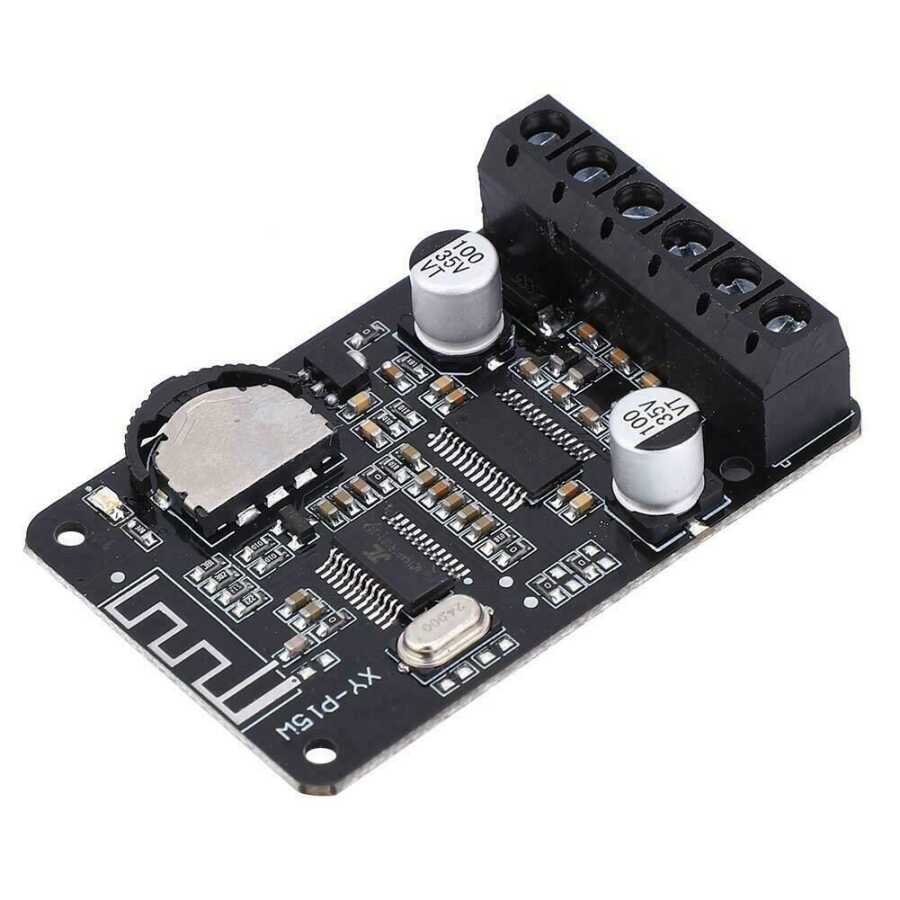

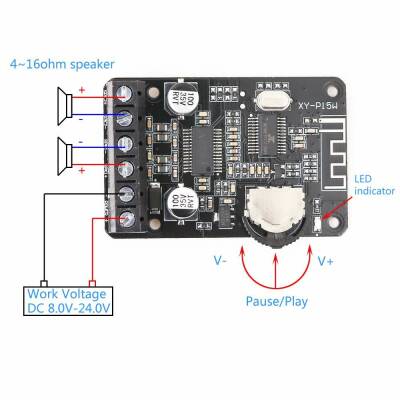

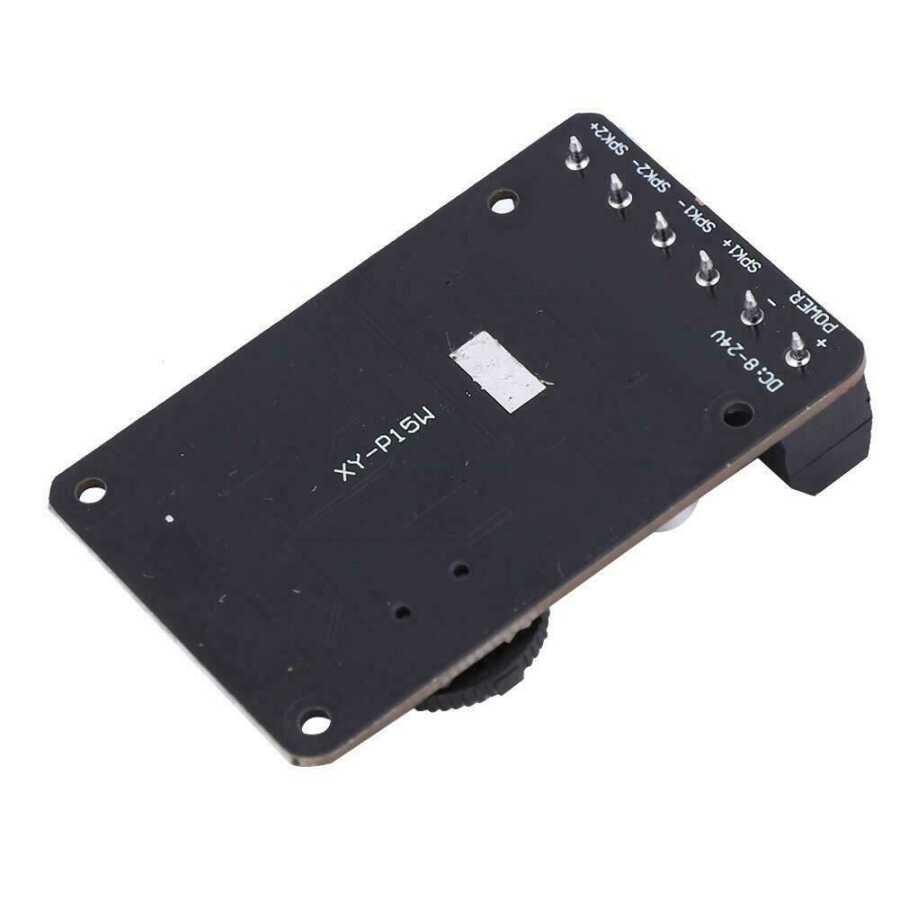

XY-P15W is a high power stereo Bluetooth audio module. It has dual channels and two speakers can be connected. It can be fed with a DC source between 8-24V from the terminal terminals. It is very easy to use. Speakers are connected from SPK1 and SPK2 terminals. Then, you can listen to your audio files by establishing a Bluetooth connection with your phone or computer.



With the rotatable volume adjustment knob on it, you can both pause the playing tracks and turn the volume up and down.

Note: It does not transmit sound during phone calls.



Features:

• Wide voltage operating range
• Can work with many different speaker types 4-16 ohms
• Easy volume adjustment
• Reverse connection protection
• Short circuit protection
• Overheat protection

Technical Specifications:

• Operating Voltage: DC 8V-24V
• Communication distance: 15 meters (max)
• Dual channel
• Output Power (at 1KHz):
• Output power 16W * 2 at 12V 4ohm
• Output power 10W * 2 at 12V 8ohm
• Output power 15W * 2 at 16V 4ohm
• Output power 20W * 2 at 20V 4ohm
• Output power 30W*2 at 24V 4ohm (Need to add extra heat sink!)
• Matched speaker (30W~150V):
• 7.1 at 12V> . 4ohm
• 7.2 at 24V> .8 ohm
• 7.3> .16ohm at 24V
• Operating Temperature: -40 ℃ ~ 85 ℃
• Module Size: 50*35*14mm
