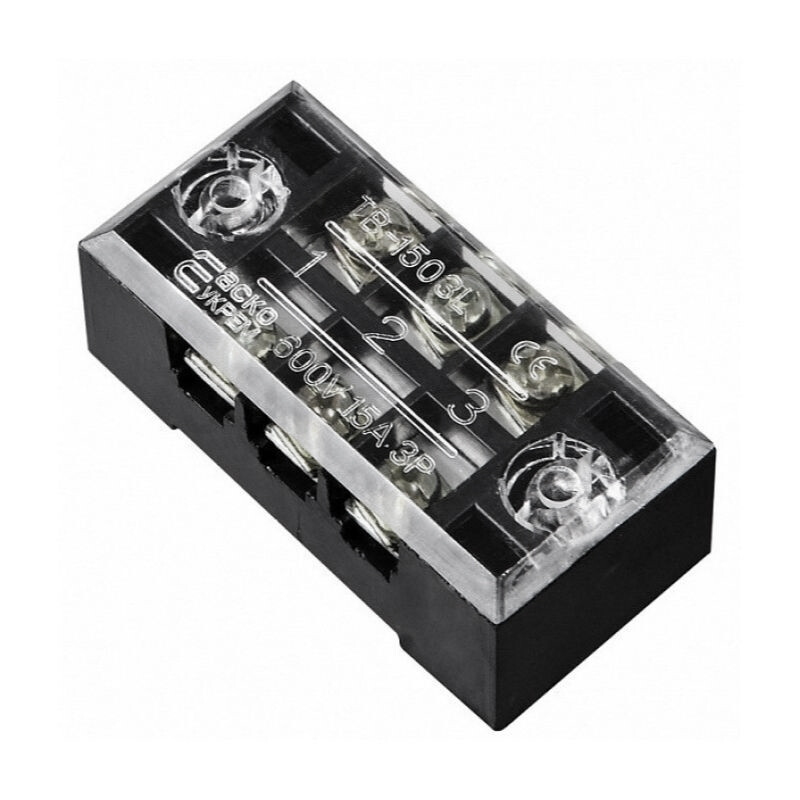

TB-1503 3P Double Row Terminal Block - 600V 15A

TB-1503 3P Double Row Terminal Block - 600V 15A

TB-1503 3P Double Row Terminal Block - 600V 15A, double row terminal blocks are a product that you can use to facilitate and organize cable connections in electrical - electronic projects. It enables the cables to be connected to each other by screwing without the need for soldering or any other addition.

Features

• Model: TB-1503
• Number of Poles: 3
• Voltage: 600V Max.
• Current: 15A Max.
• Usage Temperature Range: -40°C - +115°C
• Size: 45.3 x 22 x 17.5mm
• Cable Cross-Section: 2mm2 / 14AWG
• Screw: M3
