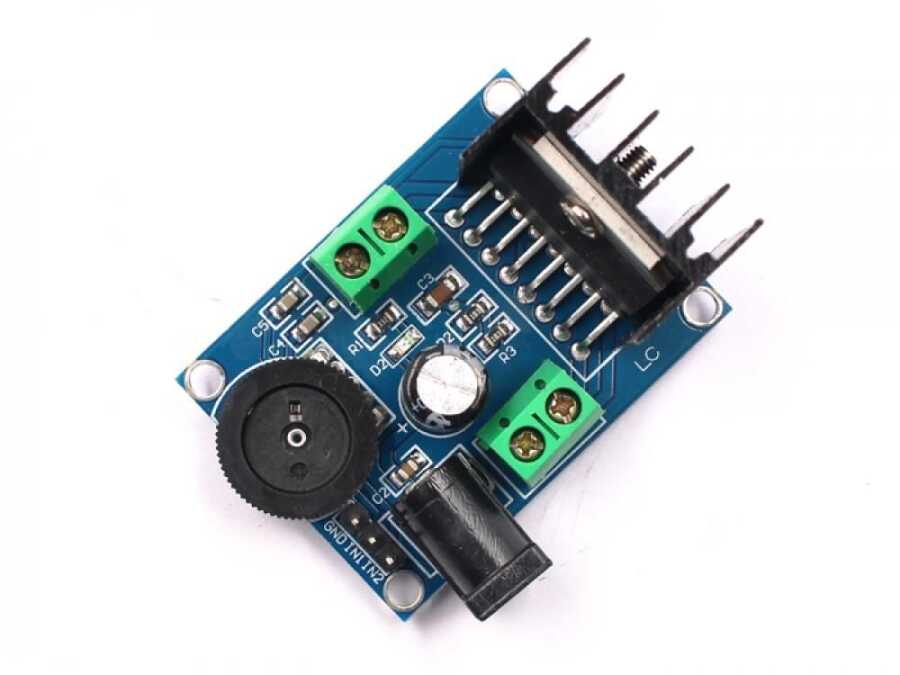

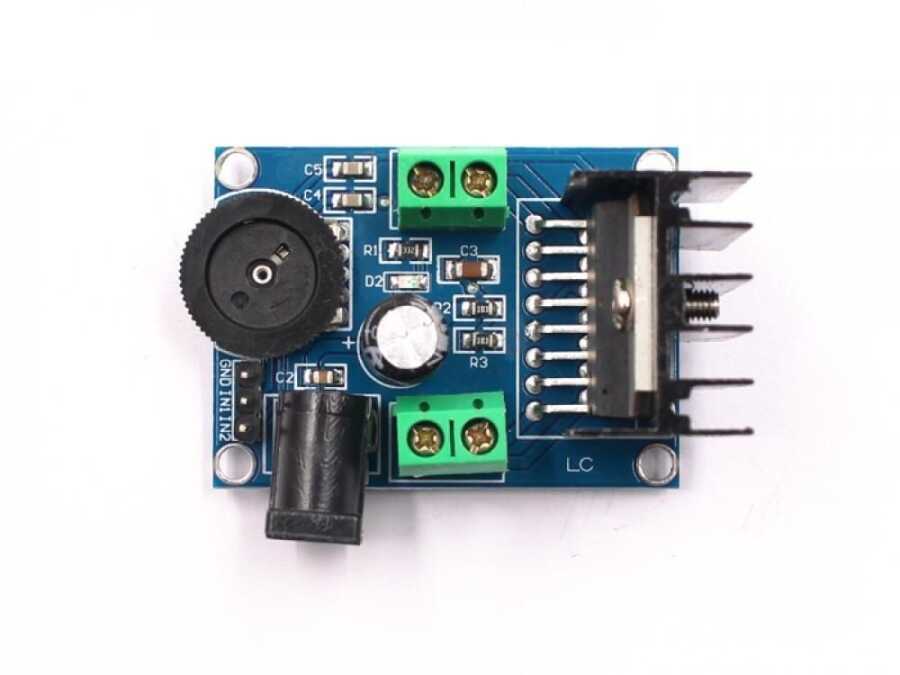

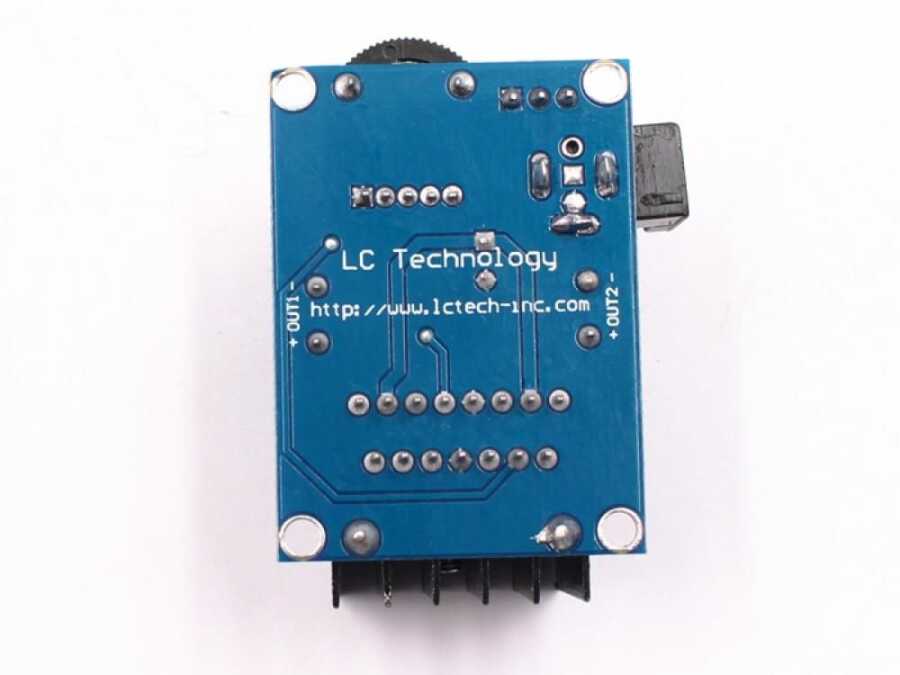

TDA7266 2*15W Dual Channel Amplifier Circuit
TDA7266 is a dual-bridge amplifier specially designed for TV and Portable Radio applications. You can get maximum output power up to 15W + 15W. It is an ideal amplifier circuit for DIY speaker projects. It can be used with speakers between 10-50W and 4-8Ω. You can use it with adapters that provide DC Voltage between 6-18V.
Features:
- Operating voltage: 6 ~ 18 v
- Size: 45mm x 33mm
- Volume adjustment with the wheel potentiometer on it
- DC Adapter power input
