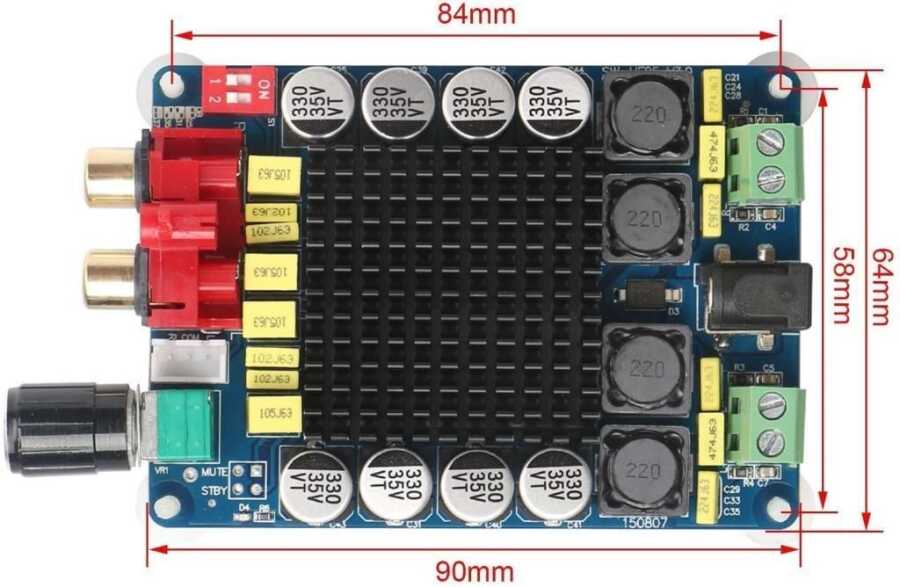

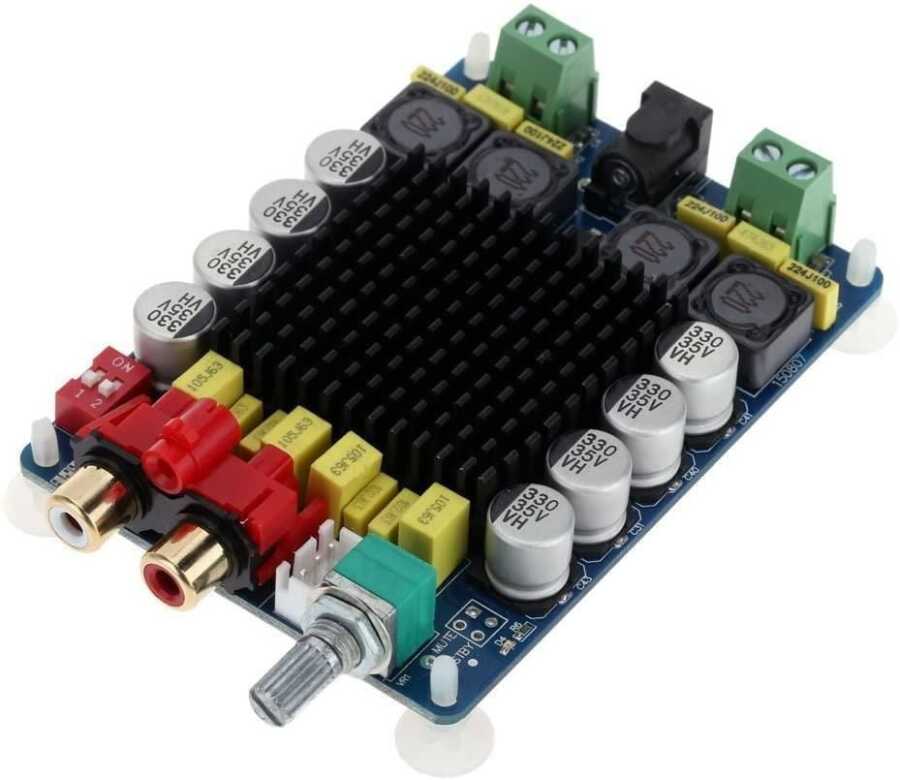

TDA7498 2x100W Stereo Digital Amplifier Module
TDA7498 2x100W Stereo Digital Amplifier Module. Stereo amplifier circuit with 2 100W outputs. It is D Class. It is suitable for use in places where high and quality sound is needed, such as home theater.
Features:
- Amplifier chip: TDA7498
- Output power: 100W+100W (Vcc = 36 V, RL = 6Ω, THD: 10%)
Output power: 80W+80W (Vcc = 34 V, RL = 8Ω, THD: 10%) - Wide ranged single power supply: 15-34VDC (recommended 24V)
- Applicable speaker impedance: 8 ohms best (also works at 4 ohms or 6 ohms)

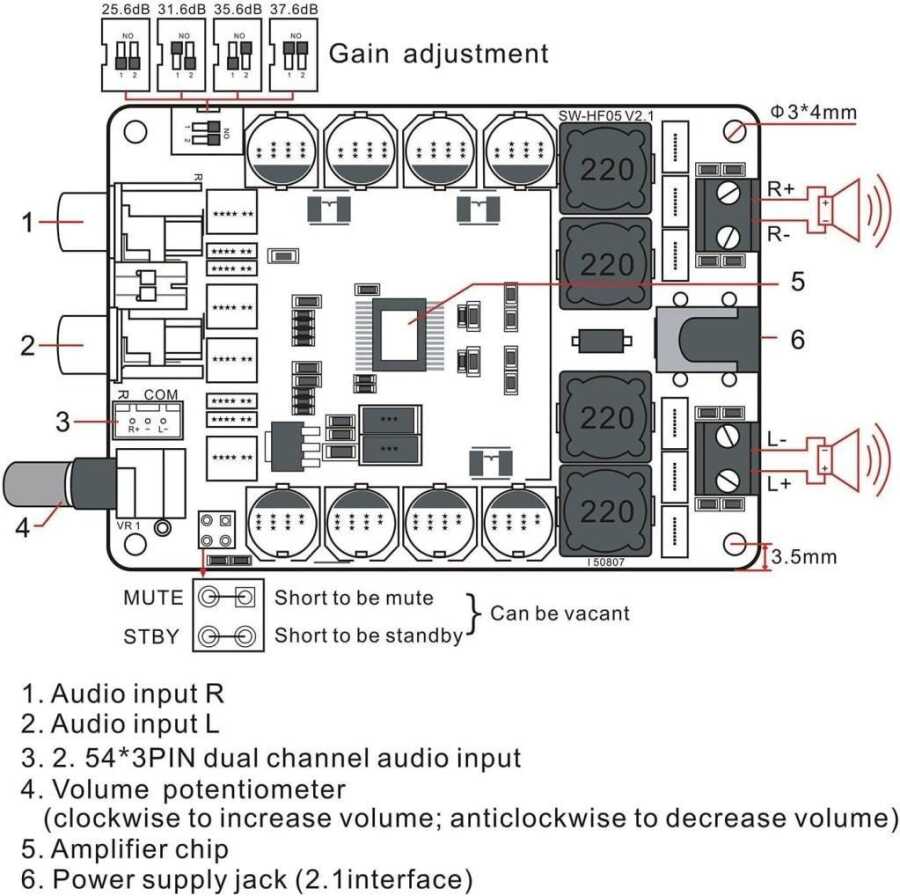

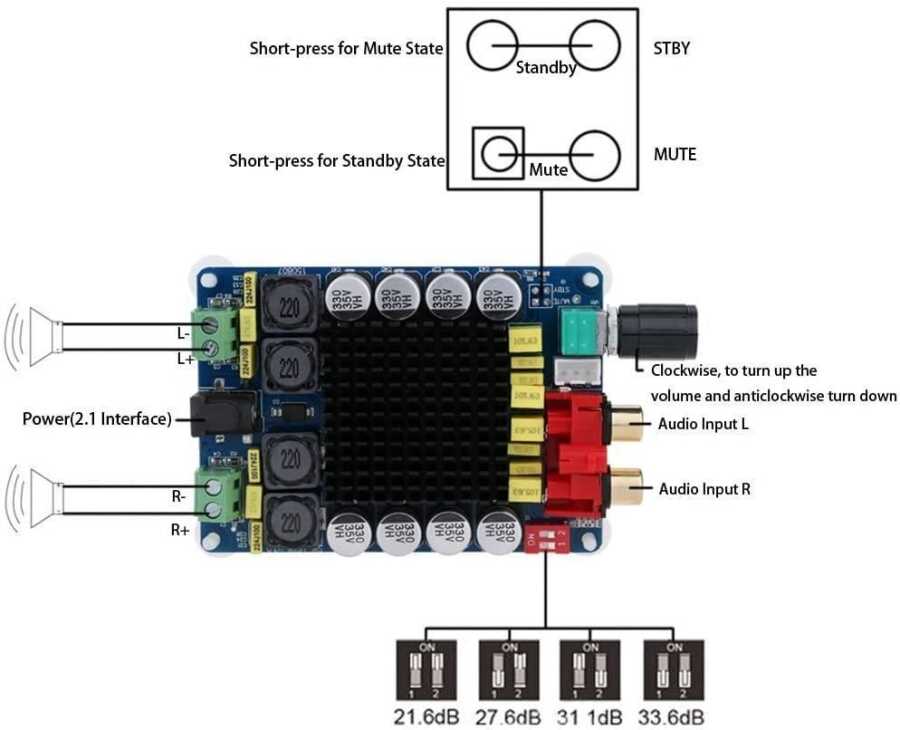

- Four fixed gain settings available: 25 .6 dB, 31.6 dB, 35.1 dB and 37.6 dB
- Adopts differential input to minimize common mode noise
- Protection: short circuit protection, over temperature protection
