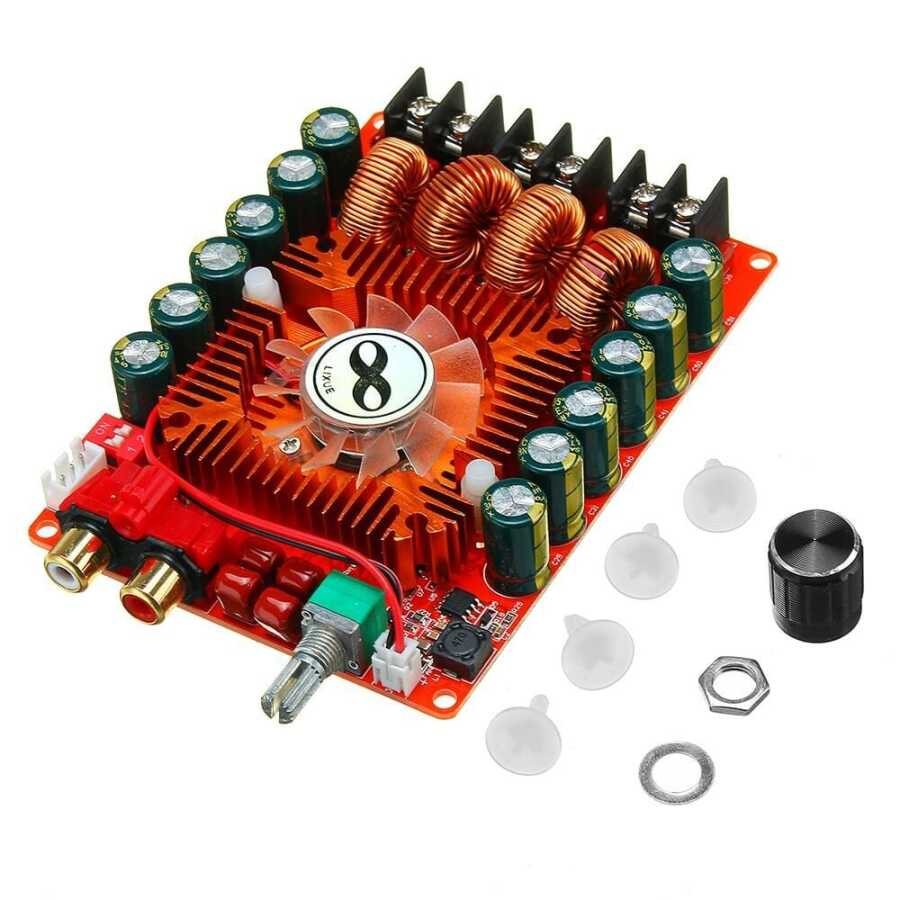

TDA7498E 2x160W Dual Channel Stereo Digital Amplifier Circuit
High power amplifier circuit with TDA7498E integrated. It is an amplifier that you can use as 2x160w stereo or as a single channel with up to 220w mono power rating. It has an aluminum cooling block and a cooling fan in the middle.
Technical Specifications:
- Supply Voltage: DC 15-36V ( It is recommended to use a High Amperage source.)
- Cooler supported
- Works with impedances between 4 and 8 ohms.

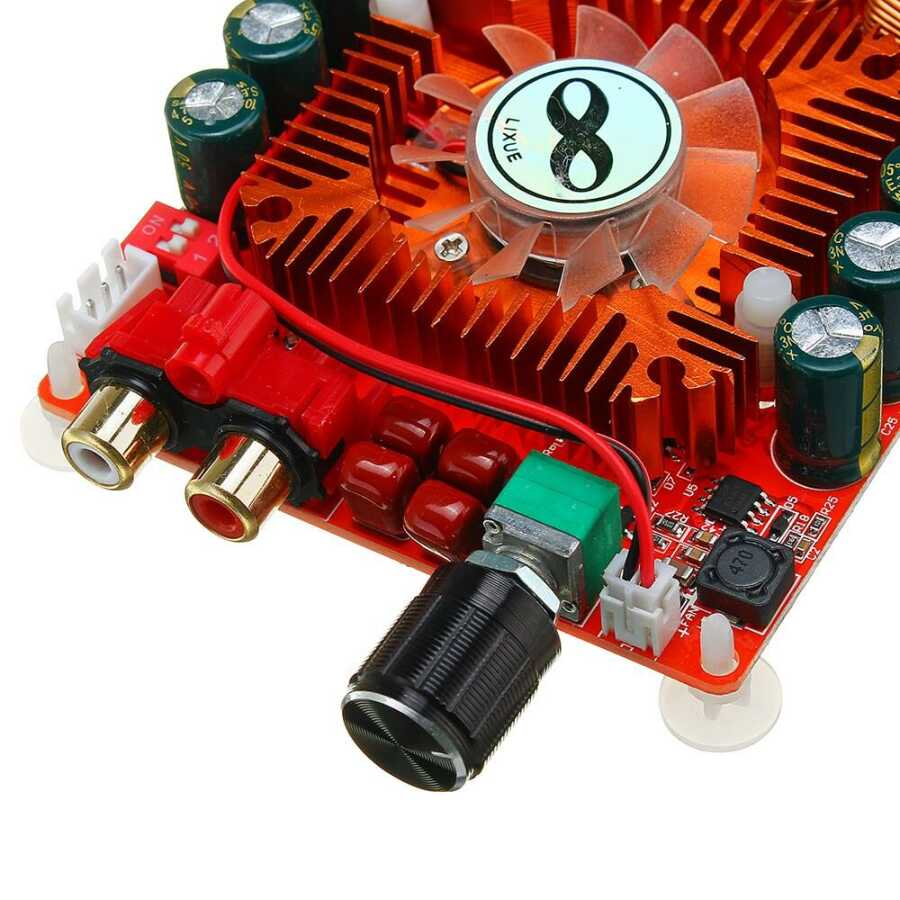

- Volume adjustment with potentiometer
- RCA audio input

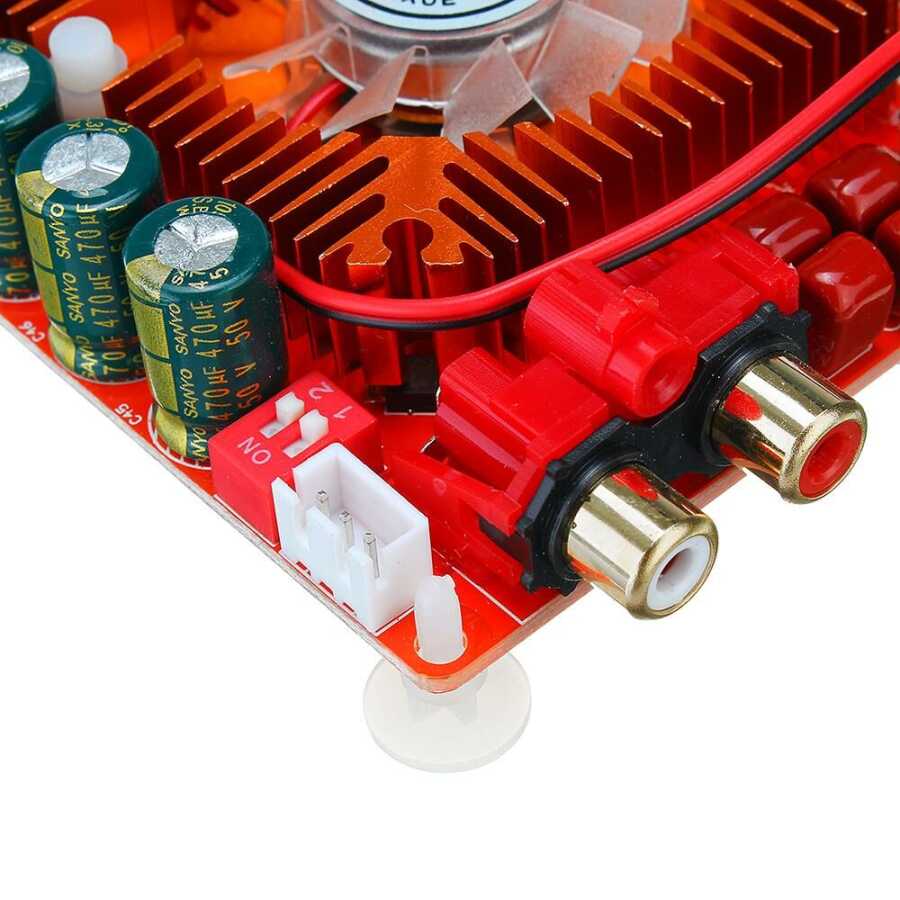

- 3 Pin audio input (cable not included)

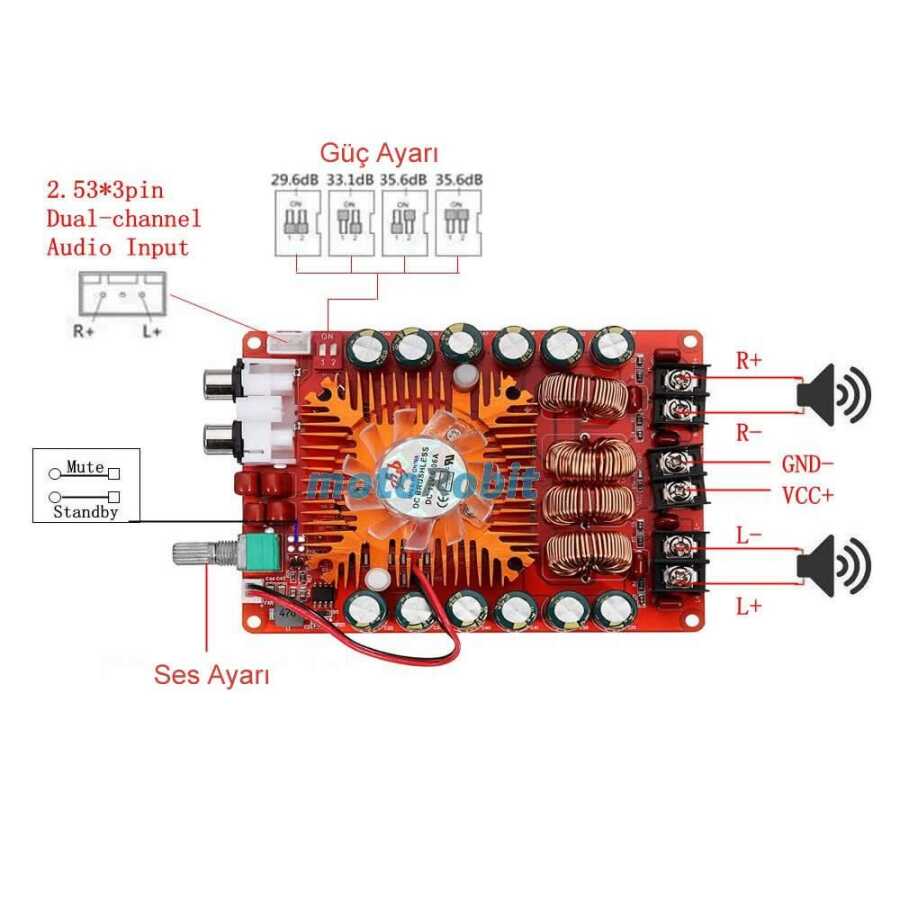

- Amplification can be adjusted in 4 different ways with a two-stage dip switch. (see image for description)
- Thermal protection against overheating
- Protection against very high currents (short circuit)
- LED on the power connector, indicating the status of the amplifier (on / off)
- 2x160W @ 36V 10A (4 Ohm)
- 1x220W @ 36V 7A (3 Ohm)
- 1x100W @ 24V 6A (3 Ohm)
- 1x100W @ 24V 6A (3 Ohm)
- 2x50W @ 22V 5A (4 Ohm)
- 2x25W @ 15V 4A (4 Ohm)
- 1x 220W mono can be modified (see image 3 for where to solder together see picture 4 for J1, J2, J3 and J4 Subwoofer input and output)
- Dimensions: 109mm x 79mm x 23mm
Note 1: This amplifier does not have reverse polarity protection due to high current consumption. So be careful to connect the voltage correctly.
Note 2: If you want to make a change, disconnect the amplifier from the speakers, power supply, audio input, etc. Take it out. This prevents damage.
