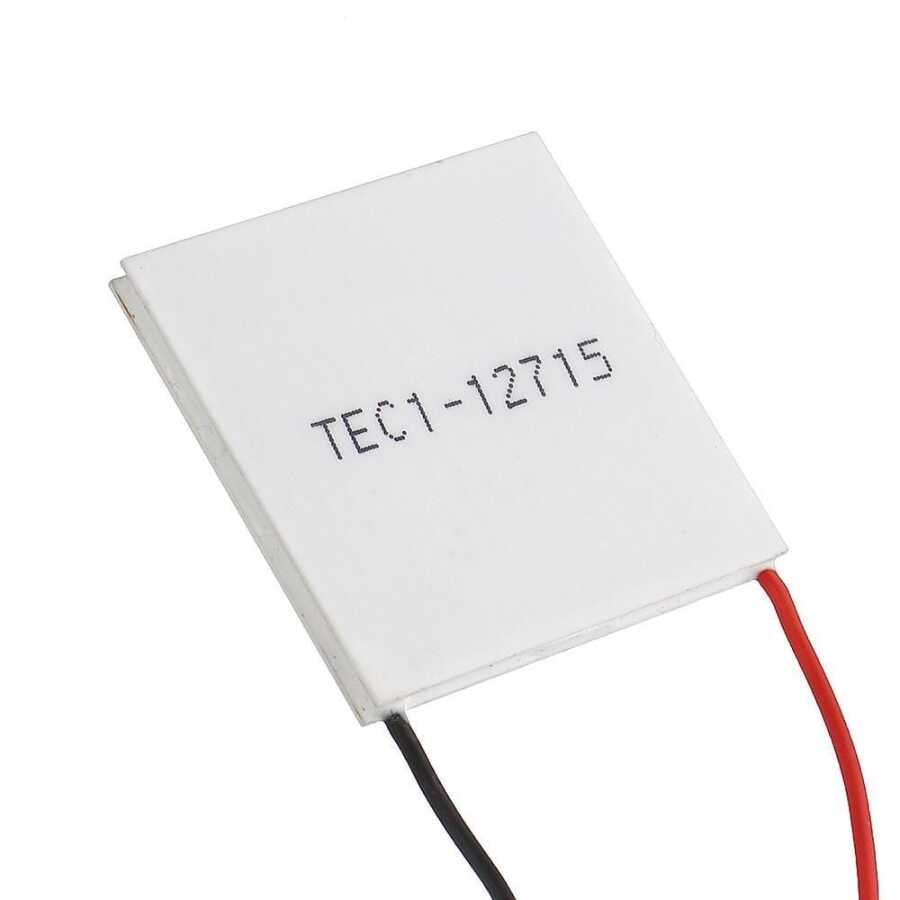

TEC1-12715 12V 231W 40x40mm Peltier
TEC1-12715 40x40mm Thermoelectric Cooler is a 15A Peltier Module. The module contains 127 semiconductor pairs that very effectively cool and heat up to 70°C in a 40mmx40mm area.
Thermoelectric coolers are also known as TEC or Peltier Module each It creates a temperature difference on both sides. One side gets hot, the other side gets cold. Therefore, they can be used to heat something or cool something, depending on the side you use. You can also take advantage of the temperature difference to generate electricity.
This Peltier works very well as long as you remove the heat from the hot side. After turning on the device, the hot side heats up quickly, the cold side cools down quickly. If you don't remove the heat from the hot side (with a heatsink or other device), the Peltier will quickly reach stasis and do nothing. We recommend using an old computer CPU heat sink or other metal block to draw heat from the hot side.
Thermoelectric cooling (TEC) module is a small It is a semiconductor-based electronic component that functions as a heat pump. By applying DC power supply to a TEC, heat is transferred from one side of the module to the other. It creates a cold and a hot side. They are widely used in industrial fields, for example, computer CPU, CCDs, portable refrigerators, medical instruments, etc.
Technical Specifications
- Model: TEC1-12715
-
Operating temperature: - 30 ~ 70 ° C
-
Maximum temperature difference: 15A
-
Maximum cooling power: 231W
-
Maximum operating voltage: 15.4 V
-
Maximum temperature: 70° C
-
-
-
-
Dimension: 40 X 40 X 3.3 (L * W * H) mm
-
Power Cord Length: Approx. 300mm
