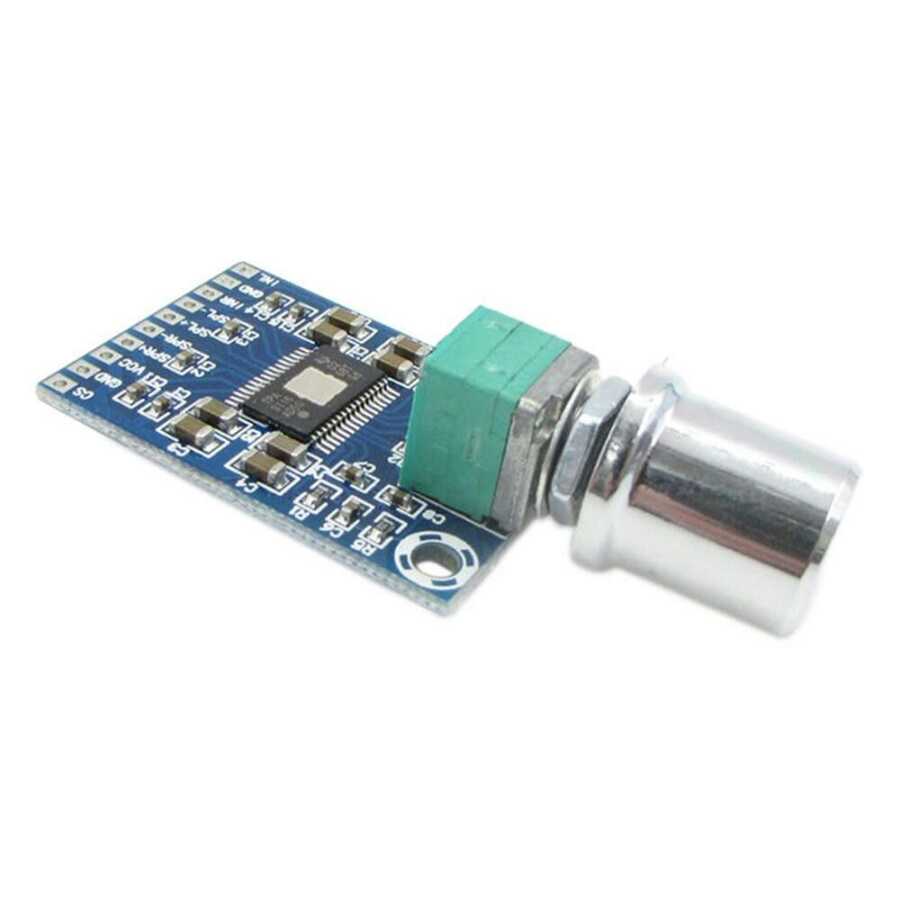

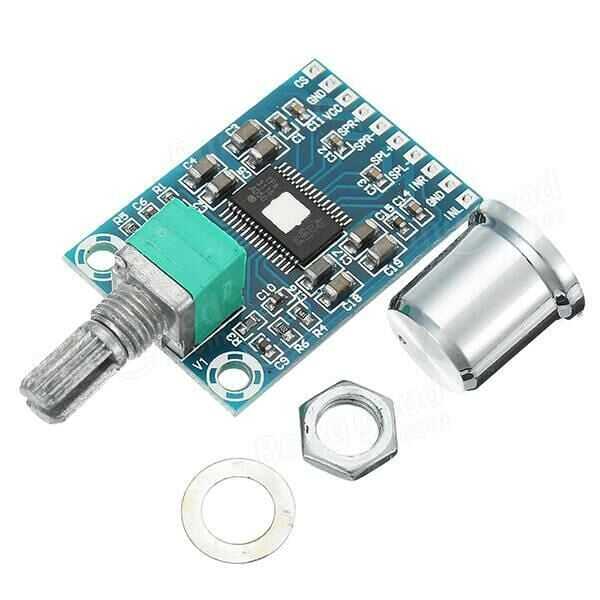

TPA3116D2 2*50W Stereo Digital Mini Amplifier 12-24V DC
Ultra miniature stereo audio amplifier with very small size and 50 + 50W power, thanks to the TPA3116D2 chip produced by Texas Instruments. It can be connected to devices such as PCs, notebooks, tablets and smartphones. It integrates listening volume controls with a high-quality potentiometer. Its high power output and audio clarity make it a great product even in cars and campers due to its small size and low power supply.
Specifications:

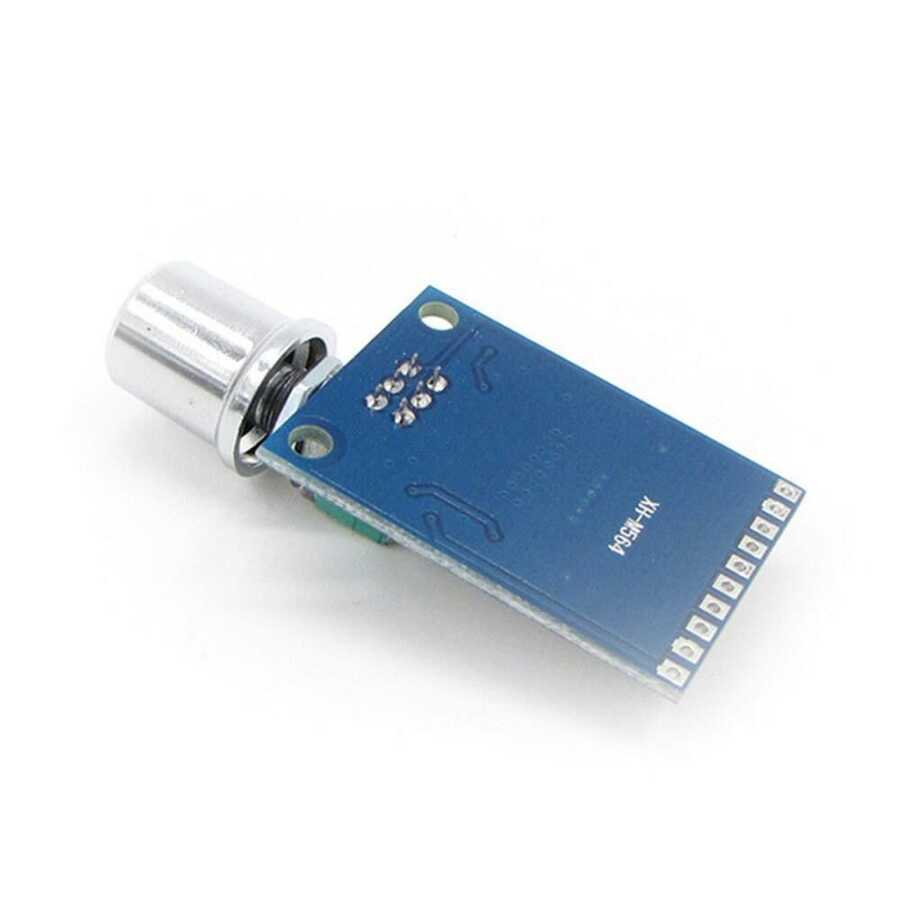

Model: XH-M564
IC: TPA3116D2
Two channels: 50+50W
Class: D
Supply voltage: 12 ~ 24VDC
Speaker Impedance: 4 ⁓ 8ohm
SNR: 100dB
Volume potentiometer

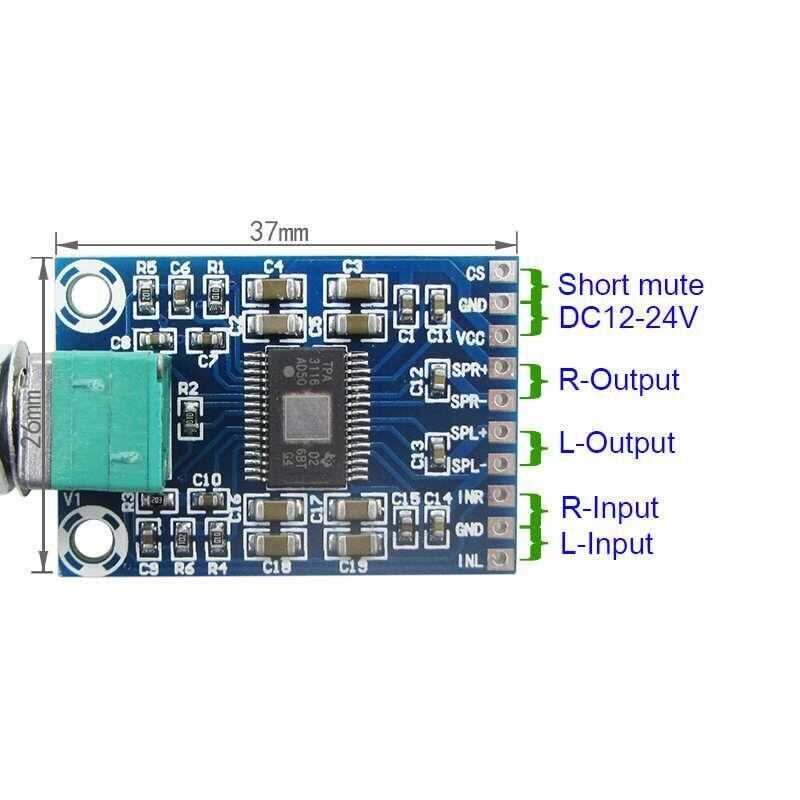

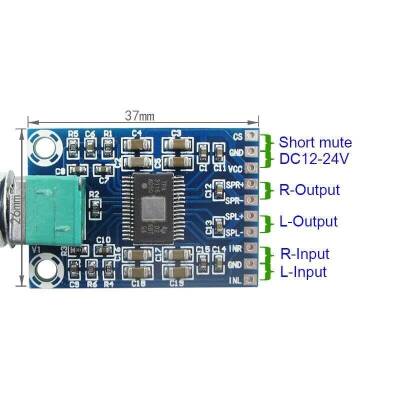

Connection Mode:
1.MUTE (short for GND)
2.GND
3.VCC
4. + R CH
5.-R CH
6. + L CH
7.-L CH
8.R IN
9.GND
10.L IN
Dimensions: 37 x 26mm
