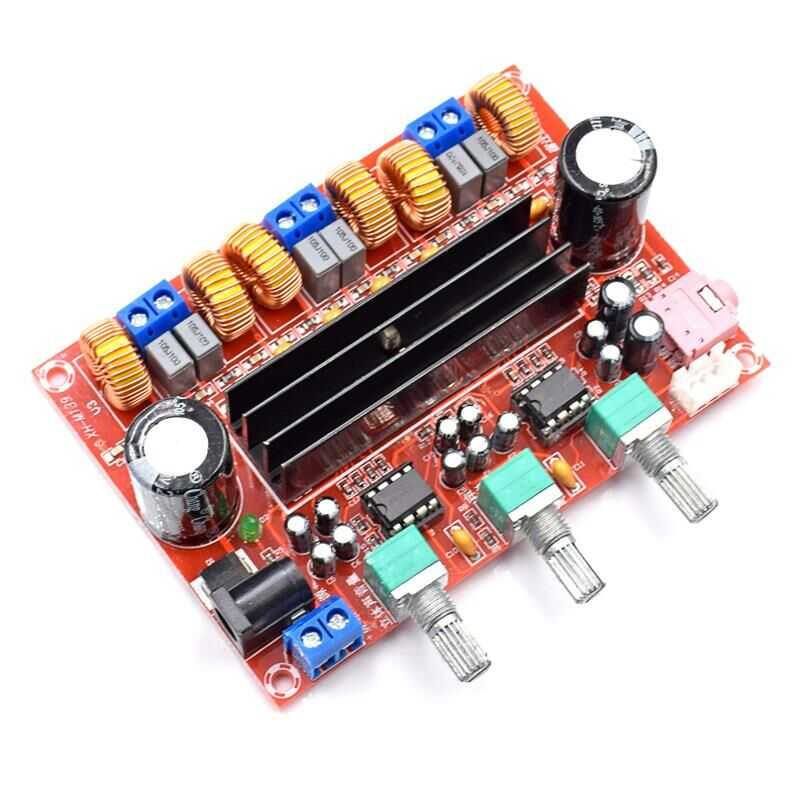

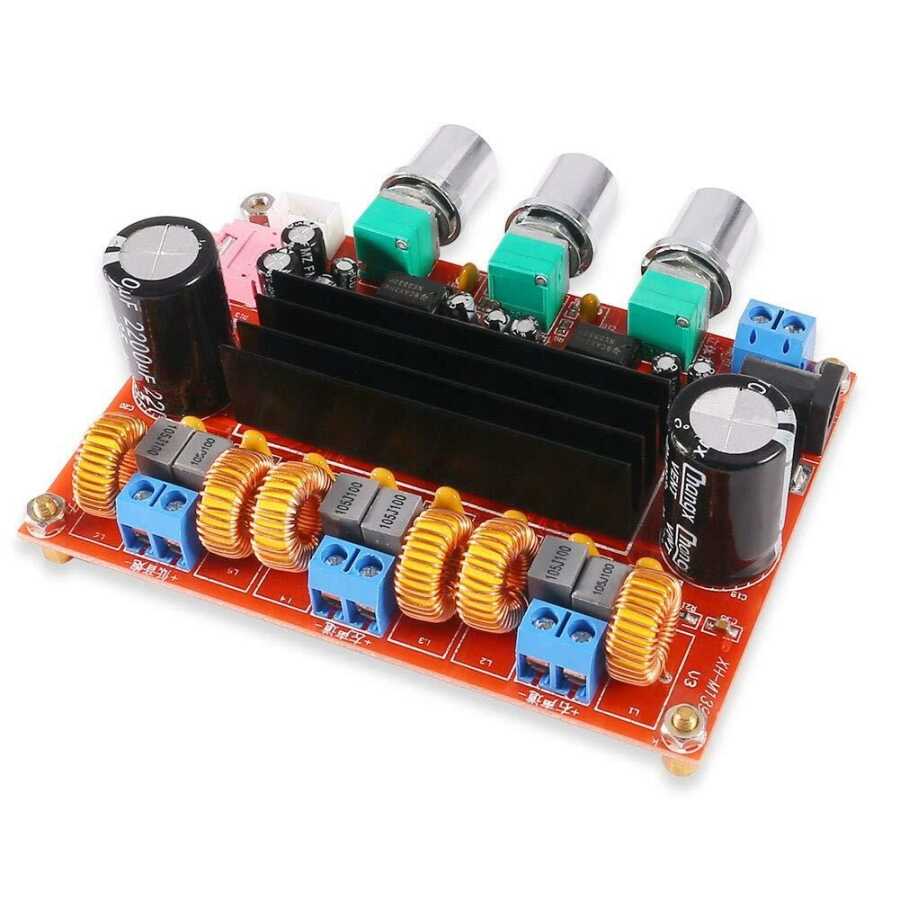

TPA3116D2 2*50W + Subwoofer Dual Channel Digital Amplifier 12-24V DC

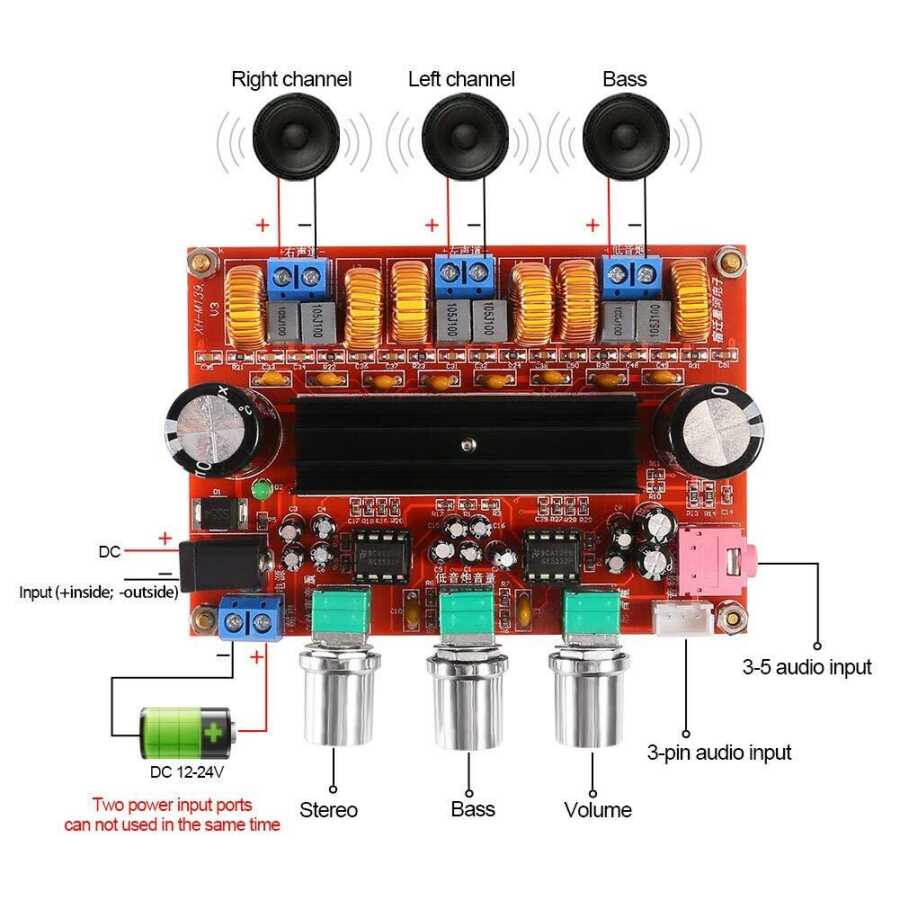

This amplifier circuit, which you can power with a source between 12-24V, allows you to get a high-quality sound output with high power. It can be used with 2 speakers with a maximum power of 50W and a 100w Subwoofer. When using high wattage speakers A high amperage adapter must be used.
Technical Specifications:
- Supply voltage: DC 12-24 V
- Output power: 50 W * 2 + 100 W Subwoofer * 1
- Output Impedance: 4-8ohm
- Frequency range: 14-100 Khz
- SNR: 100db
- Number of channels: 3 (left channel, right channel, subwoofer)
- Switch frequency: 1.2MHz
- Size: 100*70*30mm
